Vision TM-TELE ceiling mount

Vision-plafondbevestiging-TM-TELE
Vision-plafondbevestiging-TM-TELE
Vision-plafondbevestiging-TM-TELE
Vision-plafondbevestiging-TM-TELE
Vision-plafondbevestiging-TM-TELE
Vision-plafondbevestiging-TM-TELE
Vision-plafondbevestiging-TM-TELE
Vision-plafondbevestiging-TM-TELE
Vision-plafondbevestiging-TM-TELE
Vision-plafondbevestiging-TM-TELE

£59.99*

Prices incl. VAT.

Prices incl. VAT.Prices excl. VAT.

3-5 working daysOnly 1 available. Ready to ship immediately. Delivery Time 3-5 working days

Shipping from £8.99

Product number: 2660129
Zahlungsmethoden Logos
  • Mount type Ceiling
  • Minimum Mount Length 0 cm
  • Maximum Mount Length 0 cm
  • Max. Weight 10 kg
To the product description
Calculate projection area
100% personal advice
E-mail
Trusted Shops Guarantee
Trusted Shops Guarantee
Listed idealo partner
Certified Partner
visunext Services
Help & FAQ
Guide & News

Product information

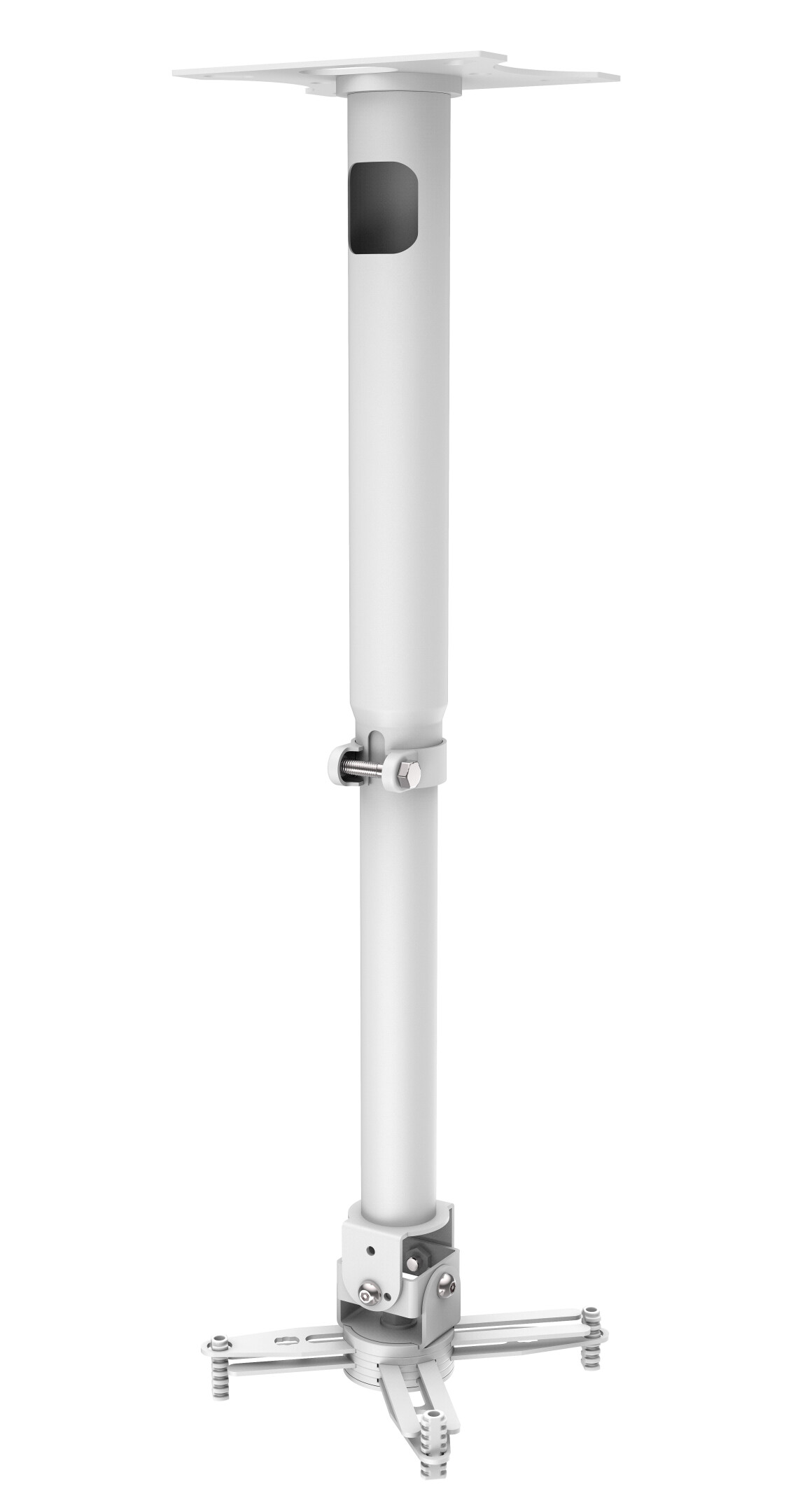

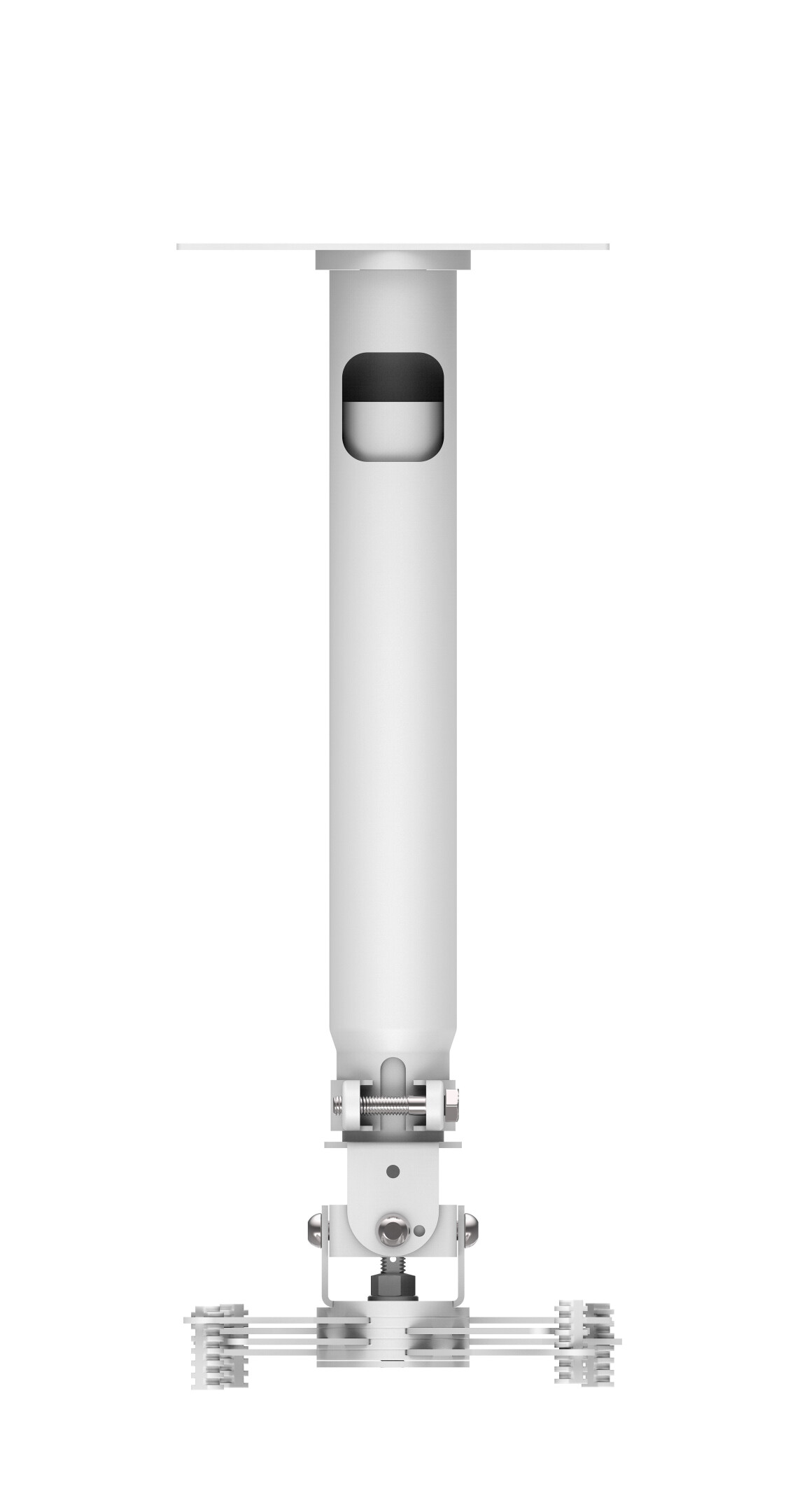

  • Universal projector ceiling mount with telescopic pole

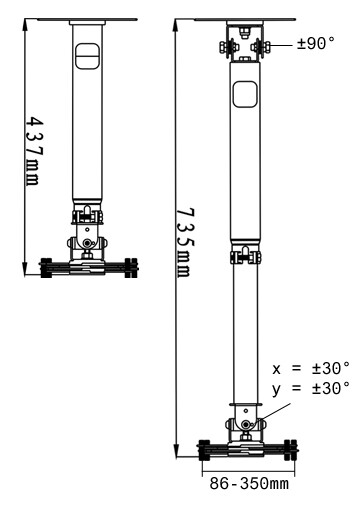

  • Overall length 440-735 mm (17.32″ – 28.94″)
  • Full adjustment: tilt at top for sloping ceilings / pitch and roll at the bottom
The TM-TELE Techmount is a projector ceiling bracket for anchoring any data projector safely to a ceiling. The telescopic design allows fast deployment and adjustment without the need cut and drill the pole. It has a greater range than most other telescopic mounts and the pole can be removed for “flush-mounting” the projector as close to the ceiling as possible. Note: unlike the TM-1200 the length of this bracket cannot be extended.   One-Man Installation Thoughtful design detail include a length adjustment clamp system which requires only one hand.   Sloping Ceilings A tilting mechanism is included which tilts to a full 90 degrees, allowing you to use the bracket as a boom if need be.   Safety Approved A back-up fall-arrest tether is included which secures the projector to your bracket, and the pole has a mechanical stop so that the two parts of the pole cannot be separated. Vision recommends a maximum safe working load of 10kg which is well within the limits of the product and meets the BSi installation standard specification (PAS122:2009).   Easy fit Projectors have threaded inserts in the bottom for attachment – but not all use the same diameter screws so Vision includes a selection to suit most projectors. Simply locate the “spider” arms on our bracket over the attachment holes, and insert a screw into the projector.   Obstruction-free Cable Management Vision’s unique ‘chute-through’ system leaves cable access clear – even for big VGA connectors.   Tools Included A spanner and pin-hex key are included. Vision also includes a hex-key bit for a power drill to speed up installation.   Secure Quick-release mechanisms make life easier for thieves, so the TM-TELE is secure and features security bolts.

Technical data

NameVision TM-TELE ceiling mount
Article number2660129
GTIN/EAN2418655000005
Manufacturer SKUTM-TELE
Model nameTM-TELE
BrandVision
Product TypeProjector mount
Mount typeCeiling
Mount usageSingle mount
Minimum Distance44 cm
Maximum Distance73.5 cm
Minimum Supported Display size0"
Maximum Supported Display size0"
Max. Weight10 kg
Minimum Mount Length44 cm
Maximum Mount Length73.5 cm
FeaturesCable management , height adjustable , tiltable
CertificatesTUV tested
Weight2.86 kg
Colour MapWhite
ConditionNew
Warranty24 Month
Warranty typeBringin service
