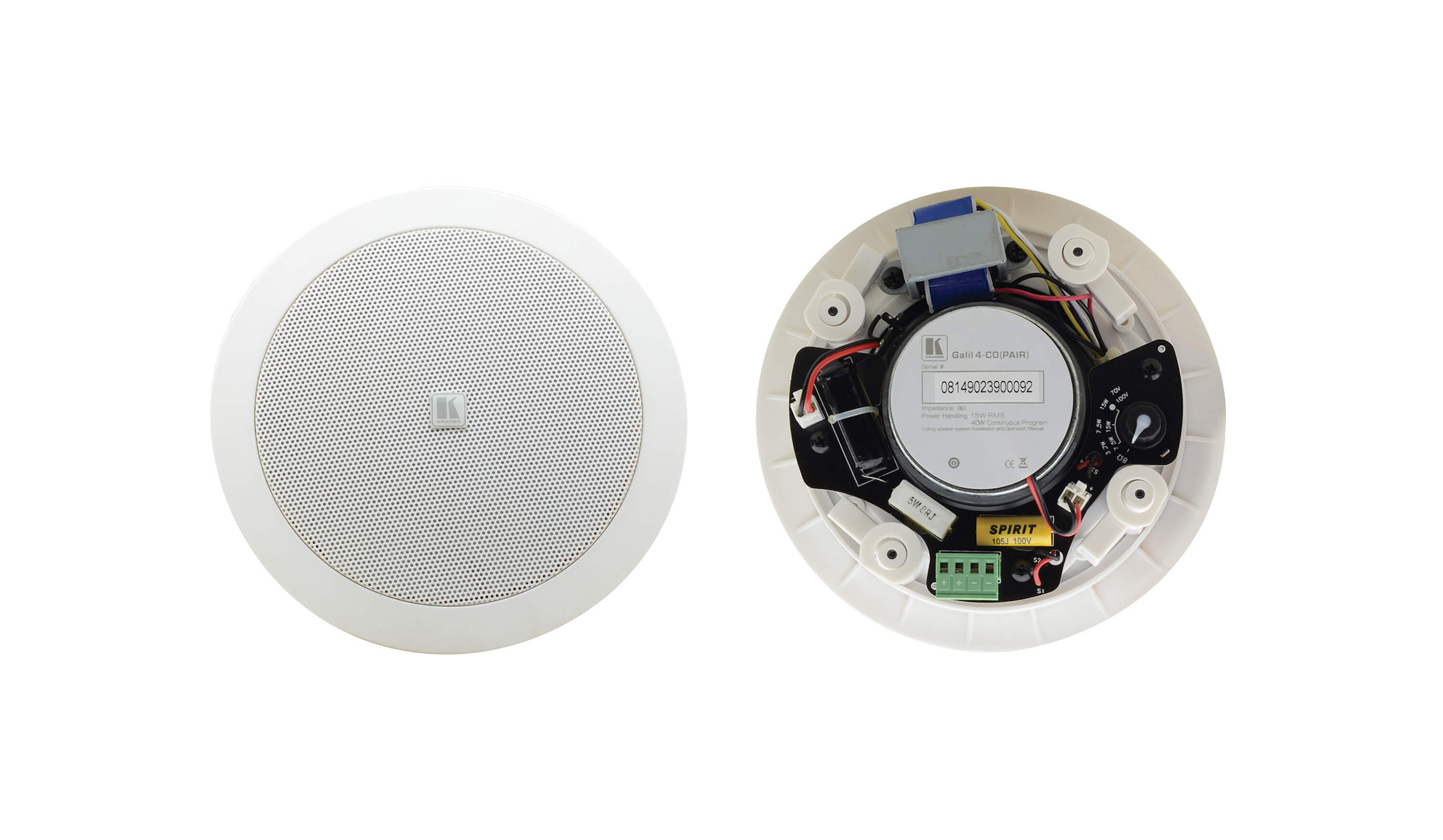

Kramer Galil 4-CO 2-way open ceiling loudspeaker, pair

The Kramer Galil 4-CO is an open, two-way coaxial ceiling speaker with a 10 cm woofer that is ideal for array installations in conference, presentation and training rooms, as well as hotel lobbies, thanks to its flexible connection options (direct 8 Ω and optional 70 V/100 V) and clear sound.

The technical data at a glance:

• Type: two-way open ceiling loudspeaker
• Woofer: 10 cm polypropylene cone with rubber surround
• Tweeter: 1.3 cm Mylar dome
• Impedance: 8 Ω (direct), transformer option: 70 V/100 V
• Frequency range: 60 Hz to 20 kHz (–10 dB) / 80 Hz to 20 kHz (±3 dB)
• Power: 15 W RMS, 40 W continuous
• Sensitivity: 83 dB SPL @1 W/1 m
• Max. SPL: 95 dB (continuous) / 98 dB (peak)
• Beam angle: 104°

Precise sound reproduction and optimised frequency response

The Galil 4-CO delivers balanced, natural sound through the 10 cm woofer and 1.3 cm tweeter , covering a frequency range from 60 Hz to 20 kHz. The precise tuning at ±3 dB from 80 Hz to 20 kHz ensures excellent speech and music reproduction, while a sensitivity of 83 dB SPL guarantees sufficient volume in large rooms.

Versatile connectivity and flexible installation options

The loudspeaker offers a direct 8 ohm connection that can also be operated as a transformer connection for 70 V/100 V, enabling flexible integration into different system architectures. Screw terminals ensure a secure electrical connection, and installation is further simplified with the optional SKIC-4 mounting aid.

Compact design and high-quality workmanship

The open housing design of the Galil 4-CO enables transparent sound emission and reduces resonance effects. With a mounting depth of only 6.8 cm and a weight of approx. 0.95 kg per speaker, it fits unobtrusively into a variety of room concepts. The aluminium frame and grill guarantee durability and an attractive appearance.

Comprehensive scope of delivery and ideal areas of application

The Galil 4-CO is supplied as a pair and, in addition to the speakers, includes a template for precise cutting and an installation manual. Thanks to its flexible connection options and clear sound profile, the speaker is ideal for array installations in conference, presentation and training rooms, as well as in hotel lobbies where professional sound reinforcement is required.
