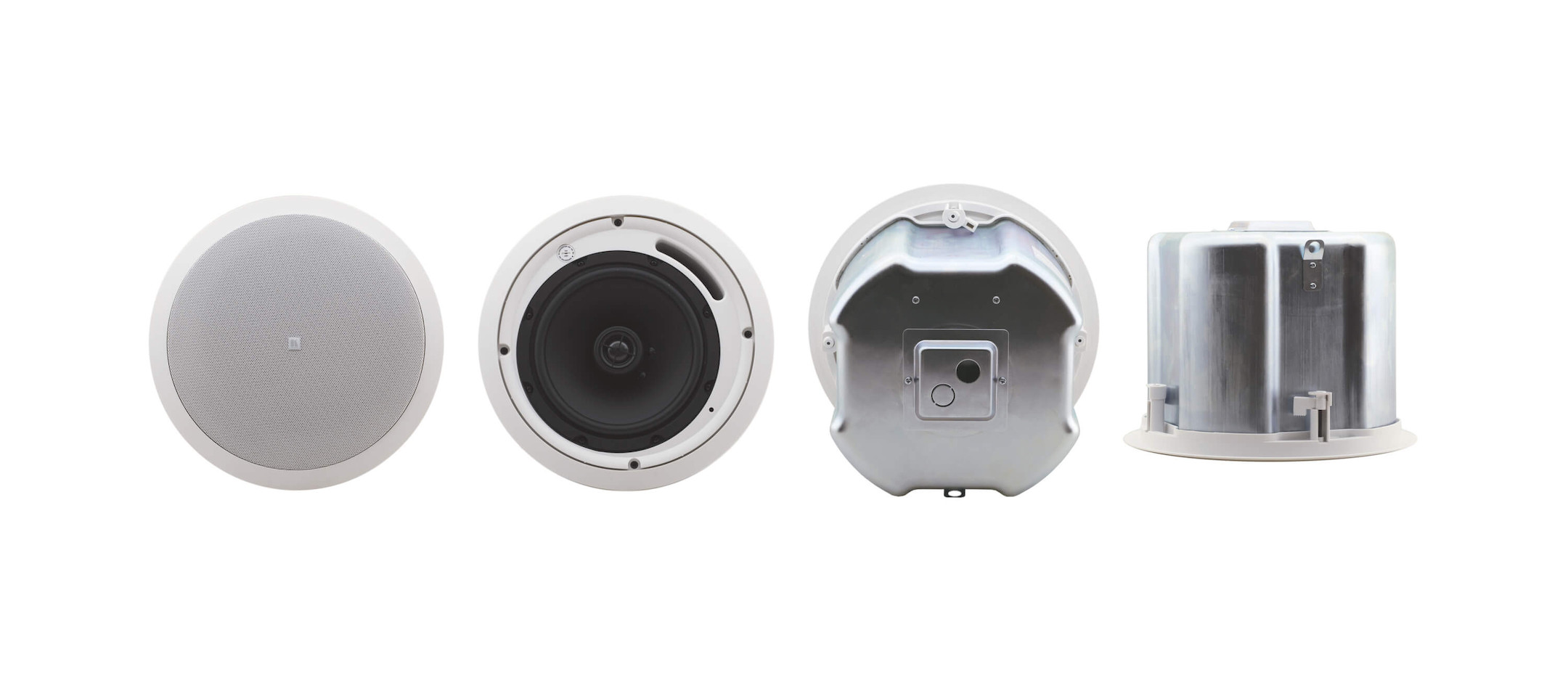

Kramer Galil 8-C 2-way closed ceiling loudspeaker, pair

The Kramer Galil 8-C is a two-way coaxial in-ceiling speaker designed for clear, even sound distribution in professional installations. With its powerful 20 cm woofer, integrated 70/100V transformer and robust housing construction, it is ideal for use in conference rooms, classrooms, hotels and catering establishments. The closed design ensures defined acoustics regardless of the ceiling environment.

The technical data at a glance:

• Type: two-way coaxial ceiling speaker (closed)
• Woofer: 20 cm polypropylene cone with rubber surround
• Tweeter: 2.5 cm silk dome
• Frequency range: 65 Hz – 20 kHz (–10 dB), 85 Hz – 20 kHz (±3 dB)
• Crossover frequency: 6.3 kHz
• Impedance: 8 ohms (in Lo-Z operation)
• Transformer connections:
  70 V: 64 W / 32 W / 16 W / 8 W / 4 W / Off
  100 V: 64 W / 32 W / 16 W / 8 W / Off
• Power: 64 W RMS / 180 W continuous
• Max. SPL: 104 dB (continuous), 107 dB (peak)
• Sensitivity: 89 dB SPL (1 W @ 1 m)
• Beam angle: 110°
• Mounting depth: 22.6 cm
• Cut-out diameter: 27.3 cm
• Weight per speaker: approx. 4.9 kg
• Contents: 2 speakers, ceiling mounting kit, template, manual

Precise sound with coaxial technology

The coaxial arrangement of the tweeter and woofer in the Galil 8-C provides particularly precise dispersion with consistent sound quality across the entire frequency range. The 20 cm polypropylene woofer delivers powerful, clean bass, while the ferrofluid-cooled silk dome tweeterprovidesclear highs. The 110-degree dispersion angle enables sound to be projected over a wide area without any acoustic gaps.

Flexible thanks to 70/100V transformer and Lo-Z mode

With its selectable 70V and 100V transformer tappings, the Galil 8-C is ideally suited for multi-speaker setups in spacious rooms. For classic 8-ohm systems, the transformer can be switched off. This versatility allows for easy integration into new or existing sound reinforcement concepts.

Robust construction for lasting reliability

The loudspeaker is designed for a long service life in continuous operation. The closed metal rear chamber protects the acoustic components and ensures consistent sound quality, regardless of the ceiling construction. The loudspeaker is suitable for temperatures from 0 to +40 °C in operation and -40 to +70 °C in storage, at up to 90% relative humidity.

Well-thought-out installation with safety features

The Galil 8-C is supplied with a ceiling mounting kit, safety cable and cut-out template. The installation system enables stable and quick mounting in standard ceiling cut-outs (Ø 27.3 cm). The tool-free attachment of the front grill saves time during installation and maintenance.

The Kramer Galil 8-C is a powerful and versatile ceiling speaker for professional audio applications. With a coaxial design, a wide frequency spectrum and flexible connection options, it offers a reliable and sonically convincing solution for a wide range of applications.
