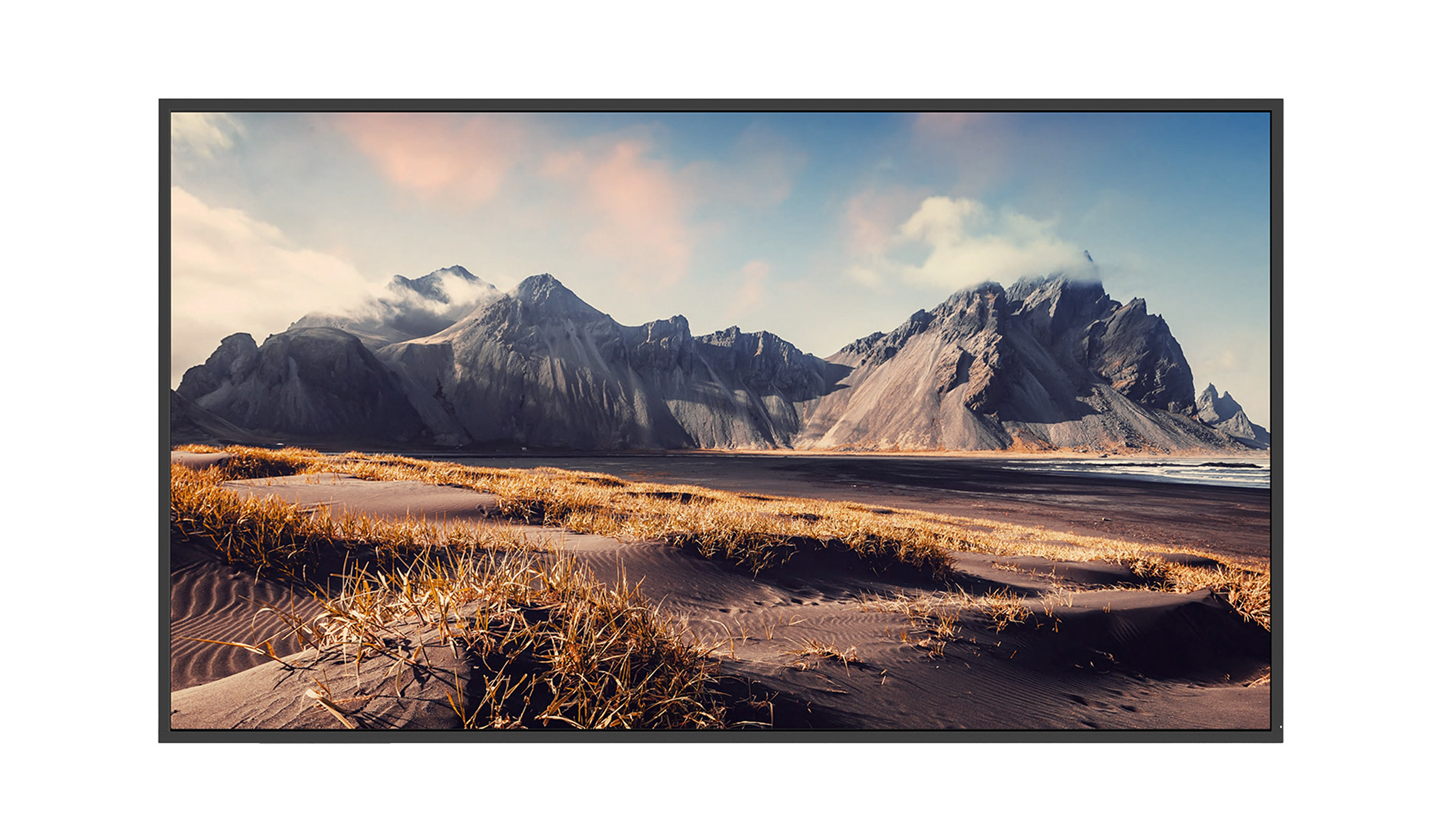

MAXHUB ND86CMA 86" Digital Signage Display
Article no: 1000038726New
Product information
MAXHUB ND86CMA – The 86" commercial display for professional digital signage solutions
The MAXHUB ND86CMA is an 86" commercial display from the CMA series, specifically designed for continuous use in businesses, conference rooms and public spaces. With 4K UHD resolution, an anti-glare coating and a robust, commercial-grade design, this digital signage display delivers crystal-clear image quality – reliably, around the clock. Businesses looking for a powerful and manageable display solution will find the ND86CMA to be a professional device that takes simplicity, security and flexibility to a new level. If you would like to purchase the MAXHUB ND86CMA or have any questions, we would be happy to assist you personally.At a glance – Key strengths
- 4K UHD resolution (3840 × 2160): Crystal-clear display of content across 86 inches – ideal for large rooms and high-impact presentations.
- Anti-glare coating (25% haze): Clear visibility even in unfavourable lighting conditions – text and graphics remain clearly legible at all times.
- Conformal coating: A protective coating on the hardware against dust, moisture and salt ensures long-term stability during continuous operation.
- 24/7 operation with ≥50,000 hours of service life: Designed for continuous commercial use – without compromising on reliability.
- USB Type-C with 65 W Power Delivery: A single cable transmits video, audio and data – whilst simultaneously charging connected devices quickly.
Image quality and robustness for continuous commercial use
The MAXHUB ND86CMA features an ADS panel with 4K UHD resolution and a brightness of 500 nits. The 178° viewing angle (horizontal and vertical) ensures that content is clearly visible and colour-accurate from almost any position – whether in a meeting room, reception area or public space. The dynamic contrast ratio of 1,000,000:1 delivers vivid image depth, whilst the anti-glare coating with 25% haze reliably reduces distracting reflections.Conformal coating technology protects the internal hardware from environmental influences such as moisture, dust and salt. This makes the display particularly suitable for environments where other devices would wear out more quickly. Designed for continuous operation, the ND86CMA runs 24 hours a day, 7 days a week – with a minimum lifespan of 50,000 hours.Connectivity and flexible content management
The ND86CMA offers a wide range of connections: three HDMI 2.1 inputs (4K@60Hz, one with ARC support), USB 2.0, USB 3.0, USB Type-C with 65 W Power Delivery, as well as RS232 and Gigabit LAN, enable connection to a wide variety of sources and peripheral devices. The integrated OPS slot (OPS62A) allows the display to be upgraded to a fully-fledged PC-based presentation system using an optional Windows module – without the need for an external computer.For wireless collaboration, MAXHUB Share supports simultaneous screen sharing from up to four devices via Miracast, AirPlay and Chromecast. Wi-Fi 6 (802.11ax, dual-band 2.4/5 GHz) and Bluetooth 5.2 ensure fast, stable connections. The cloud-based device management software MAXHUB Pivot enables IT administrators to manage devices and distribute content centrally and remotely – efficiently and without the need for on-site intervention. The display can also be integrated into existing control infrastructures via RS232 or IP protocol.Energy efficiency and certifications
The MAXHUB ND86CMA is certified to Energy Star 8.0 and ErP standards and consumes just 0.5 W in standby mode. With a typical power consumption of 198.4 W, the display offers an energy-efficient foundation for continuous operation. Certifications to IEC 62368-1 (safety) and EMC Class B underline the commercial quality of the device. What’s in the box and mounting options – including a VESA 800×600 wall mount and portrait/landscape operation – make installation flexible and straightforward.The right display for your professional use
The MAXHUB ND86CMA combines 4K image quality, robust suitability for continuous operation and extensive connectivity in a commercial display designed to meet the demands of modern businesses. Whether for digital signage, conference rooms or public spaces – this display delivers reliably and efficiently. Please feel free to contact us by email or phone – we’ll support you in planning and implementing your bespoke display solution.Technical data
| Name | MAXHUB ND86CMA 86" Digital Signage Display |
|---|---|
| Article number | 1000038726 |
| GTIN/EAN | 6927433604411 |
| Manufacturer SKU | ND86CMA |
| Model name | ND86CMA |
| WEEE number | DE78500567 |
| Brand | MAXHUB |
| Product Type | Non-Touch Display |
| Panel type | ADS |
| Resolution | 3840 x 2160 4K UHD |
| Diagonal | 86" |
| Aspect Ratio | 16:9 |
| Viewing angle - Horizontal | 178° |
| Viewing angle - Vertical | 178° |
| Contrast Ratio | 1,200 :1 |
| Max. Brightness | 500 cd/m² |
| run-time | 24/7 |
| Response time | 8ms |
| Refresh Rate | 60Hz |
| Haze Level | 25% |
| Support - VESA | 800 x 600 |
| Frame width | 15.9 mm |
| Operating system | Android |
| Inputs | 1x USB-C , 2x HDMI , 2x USB-A |
| Outputs | 1x 3,5mm Jack , 1x HDMI |
| wireless technology | WiFi |
| Power per channel | 16 W |
| Product width | 193.08 cm |
| Product height | 110.18 cm |
| Product depth | 8.16 cm |
| Weight | 43.15 kg |
| Colour | Black |
| EEK Spectrum | A to G |
| Delivery contents | HDMI Cable , Power cable , Remote control , mount |
| Condition | New |
| Warranty | 36 Month |
| Warranty type | Bringin service Service and support information |
