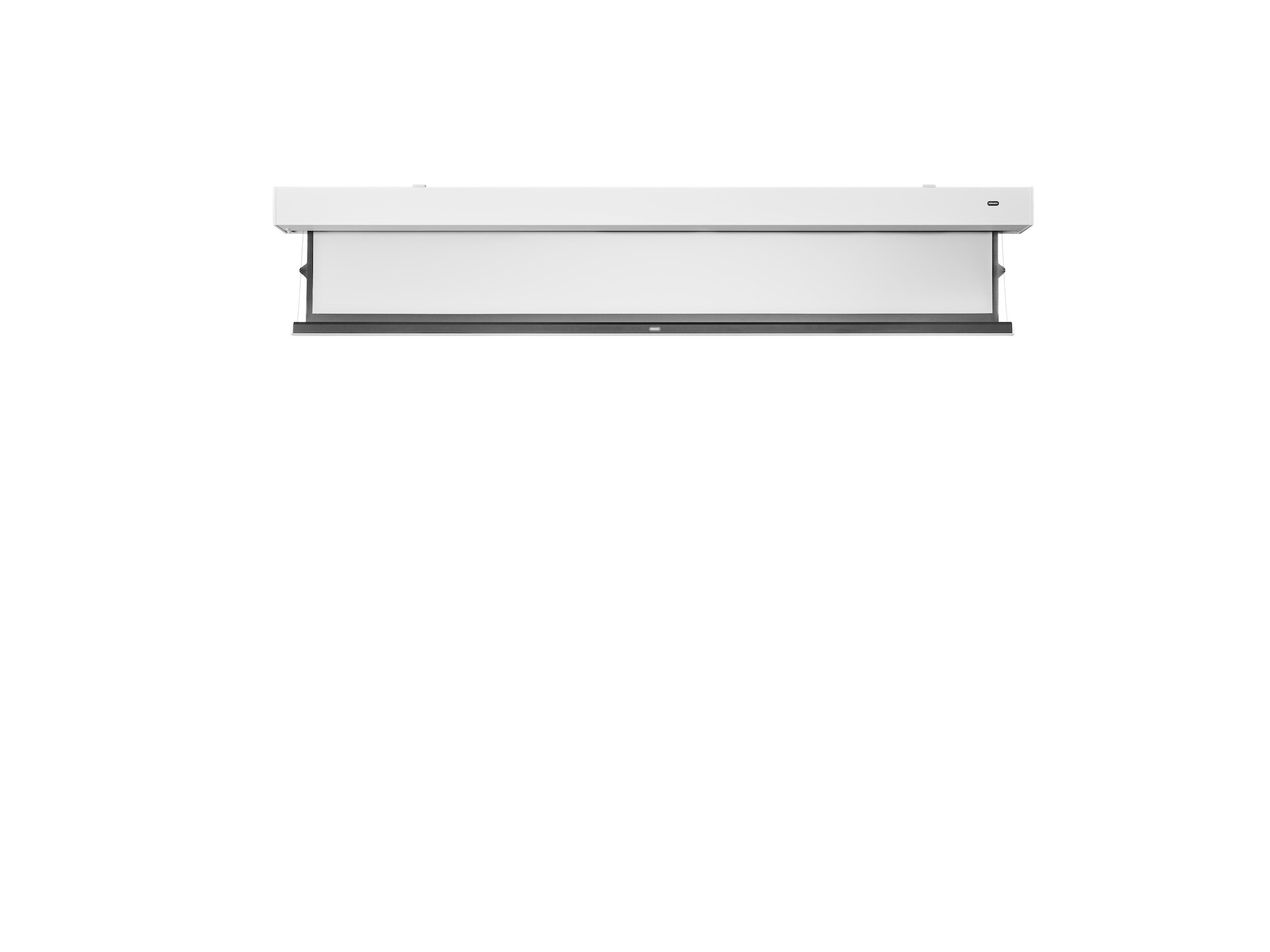

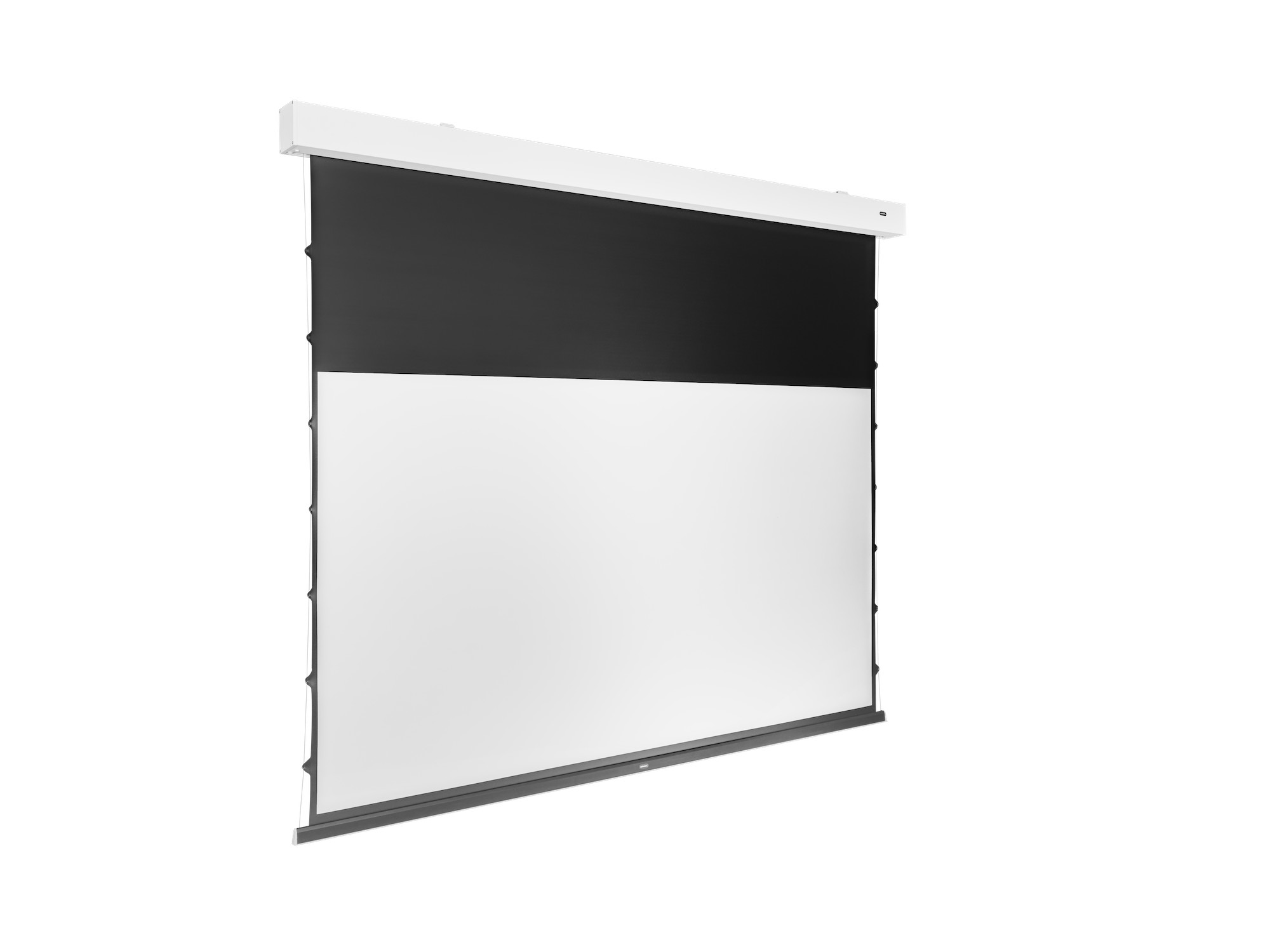

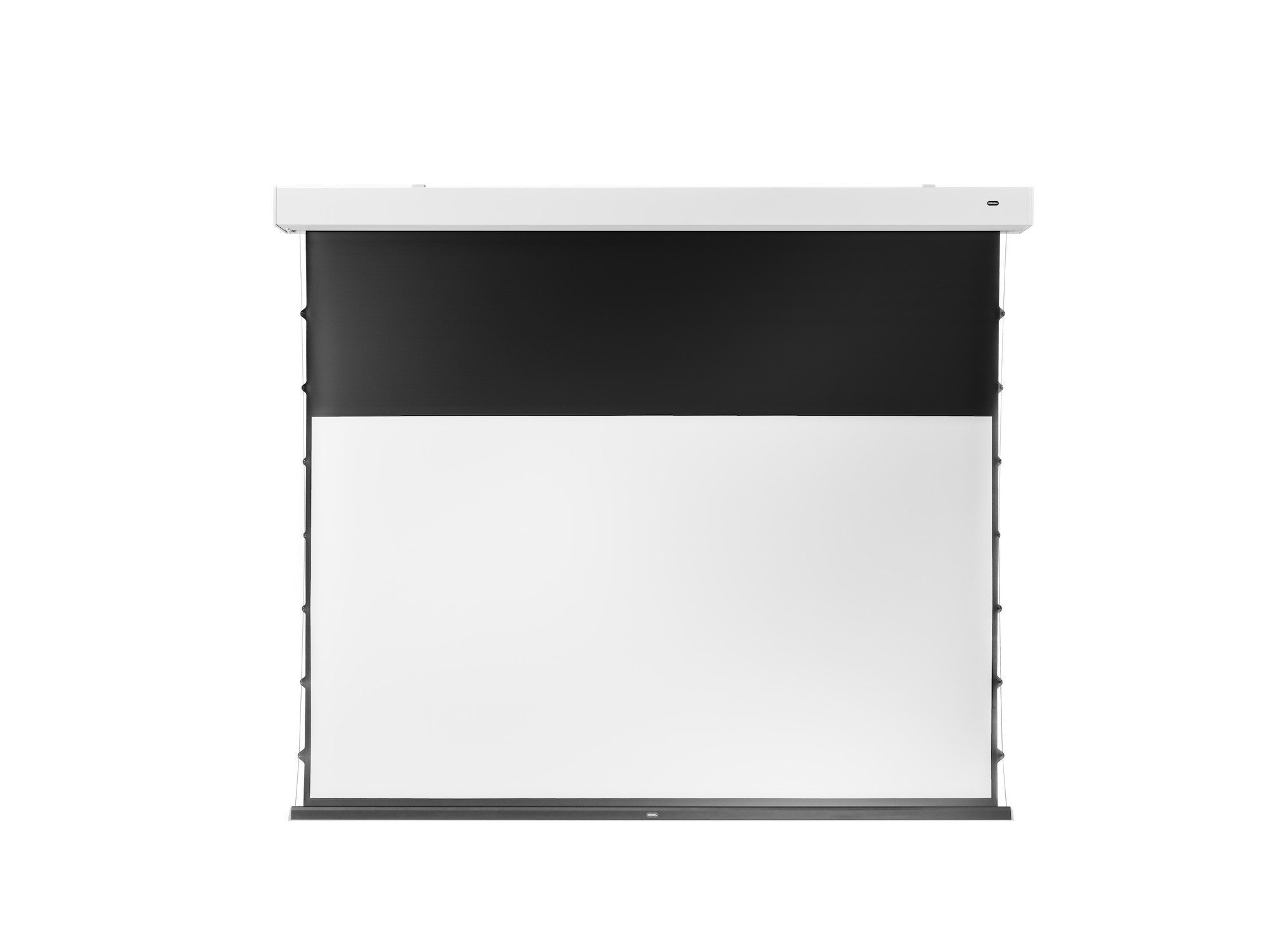

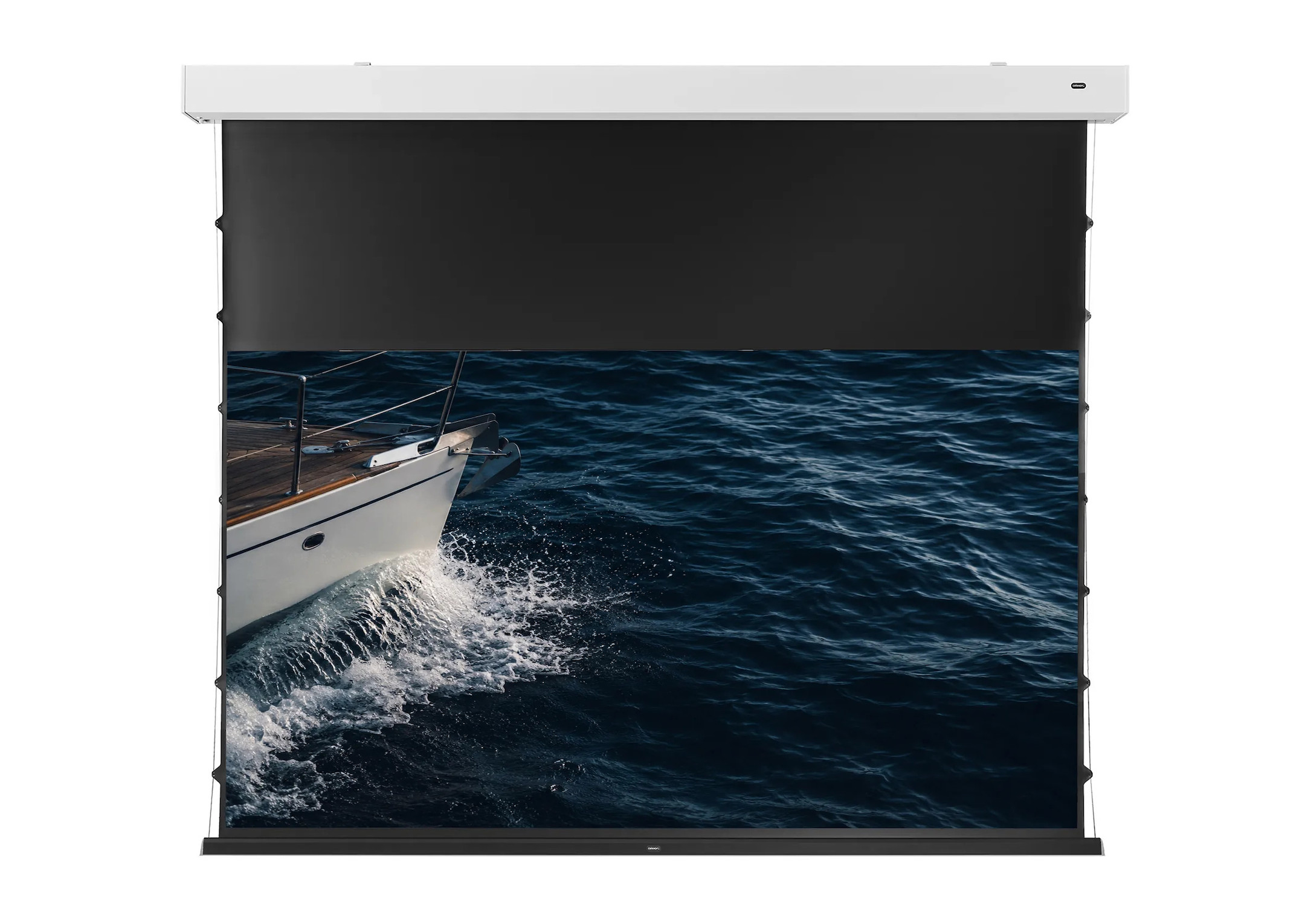

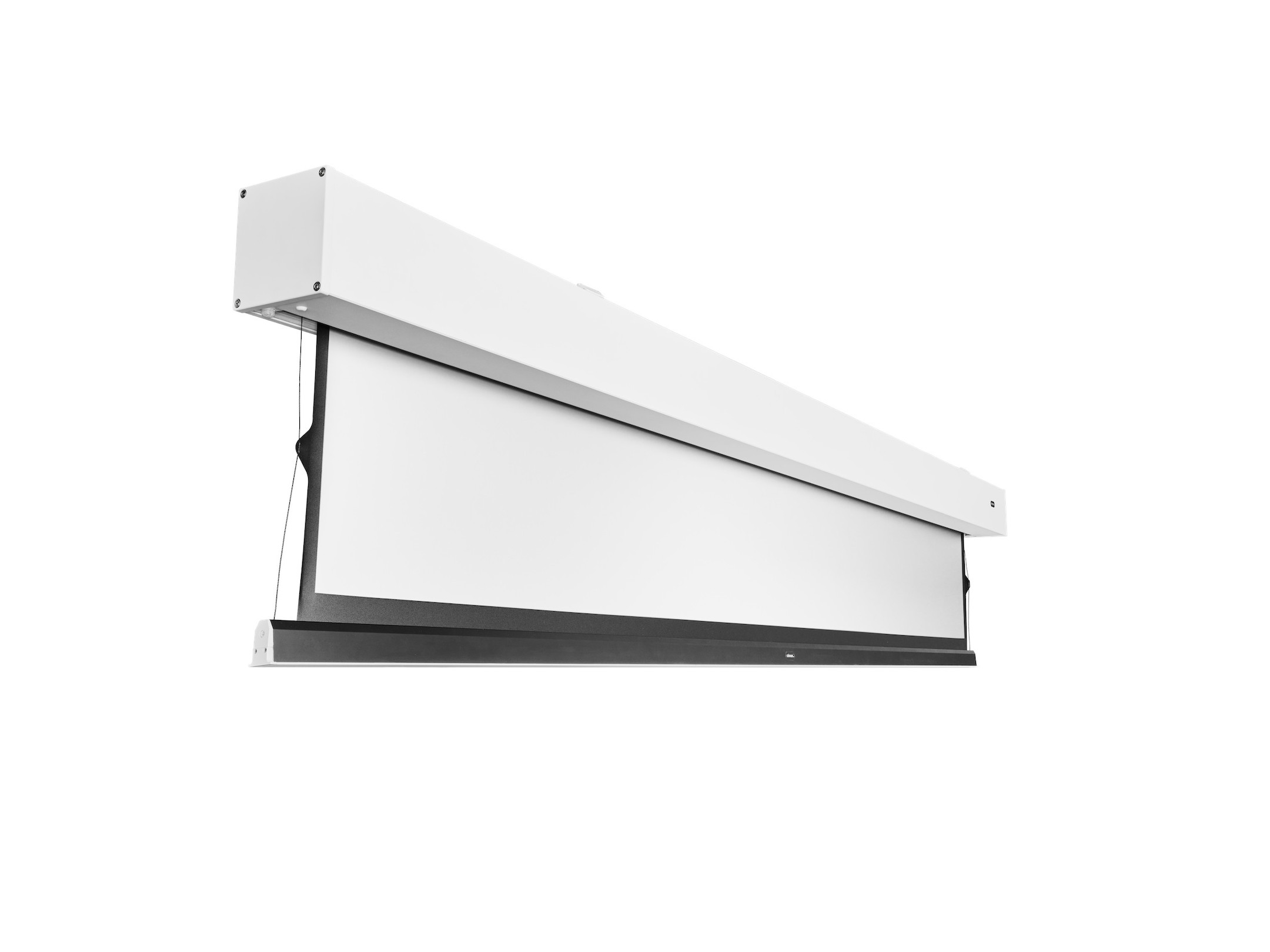

celexon SOUNDVISION Premium Plus Screen Electric Tension 298 x 168 cm - 135"

A feast for the eyes and ears: celexon Premium Plus – SOUNDVISION

When picture and sound merge into one. A true home cinema experience is not defined by screen size alone. It is only when dialogue, music and sound effects come precisely from the centre of the screen that the immersive experience film fans and home cinema enthusiasts expect is created. The celexon SOUNDVISION Premium Plus was developed precisely to meet this requirement. It combines a high-resolution projection screen with acoustic transparency, allowing speakers to be concealed directly behind the screen – just like in a professional cinema.

The SOUNDVISION principle: invisible technology, a genuine cinema experience.

At the heart of the projection screen is the specially developed SOUNDVISION fabric. Unlike conventional micro-perforated screen surfaces, celexon utilises a modern micro-woven structure that combines outstanding sound permeability with excellent picture quality.

• Authentic cinema experience: Speakers can be positioned directly behind the projection screen. As a result, voices, sound effects and music are perceived exactly where they originate on the projection screen, creating a particularly natural soundstage that immerses the viewer even more deeply in the action.
• Acoustically transparent: Thanks to its exceptionally fine micro-woven structure, featuring around 150 micro-holes per square centimetre, SOUNDVISION enables virtually lossless sound transmission. With attenuation of less than 1 dB in the relevant high-frequency range, the sound characteristics of high-quality speaker systems remain virtually unchanged.
• No moiré effects: The innovative angled weave structure prevents distracting moiré effects whilst enabling detailed reproduction of high-resolution 4K content. This ensures that the image sharpness of modern home cinema projectors is optimally preserved.
• Brilliant picture quality: With a gain of 1.1, high colour fidelity and a wide viewing angle of 150°, the SOUNDVISION delivers a uniform and natural picture for demanding home cinema applications. The matt white surface ensures colour-accurate, almost 100% colour-neutral projection, bringing films, TV series and concerts to life authentically on the projection screen.
• Durable and easy to maintain: The UV-resistant, washable and mould-resistant surface ensures consistently high picture and sound quality.

Mechanical Perfection Inside the Premium Plus Housing

The SOUNDVISION utilizes the premium chassis of the Premium Plus series to ensure long-lasting screen flatness and exceptional image quality:

• Tension Cable System: A precisely engineered tensioning system ensures permanently optimized flatness. The projection surface remains perfectly smooth at all times for distortion-free viewing.
• Precision Roller Tube: The large-diameter worm-drive roller tube guarantees a ripple-free projection surface while protecting the premium PVC screen material.
• Fully Enclosed Design: The enclosed housing protects the screen from dust, mold, moisture, and insects, extending its service life.
• Grounding Concept: Prevents static charge caused by friction during retraction, particularly in dry climates, while reducing dust accumulation on the projection surface.
• Professional Framing: The surrounding black border and black drop not only create a clean image frame but also support the automatic image alignment functions of modern smart projectors.

Smart Design & Whisper-Quiet Operation

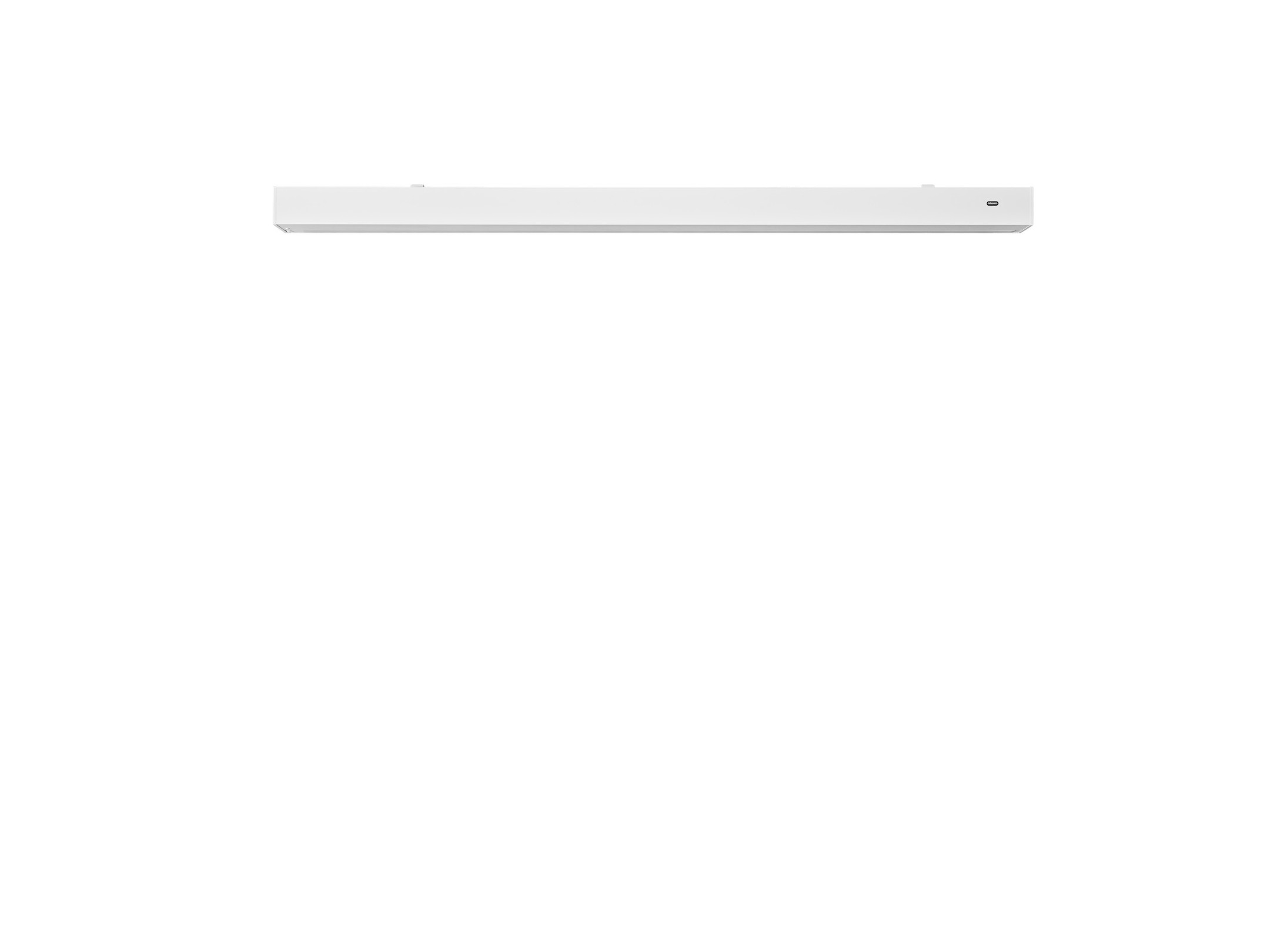

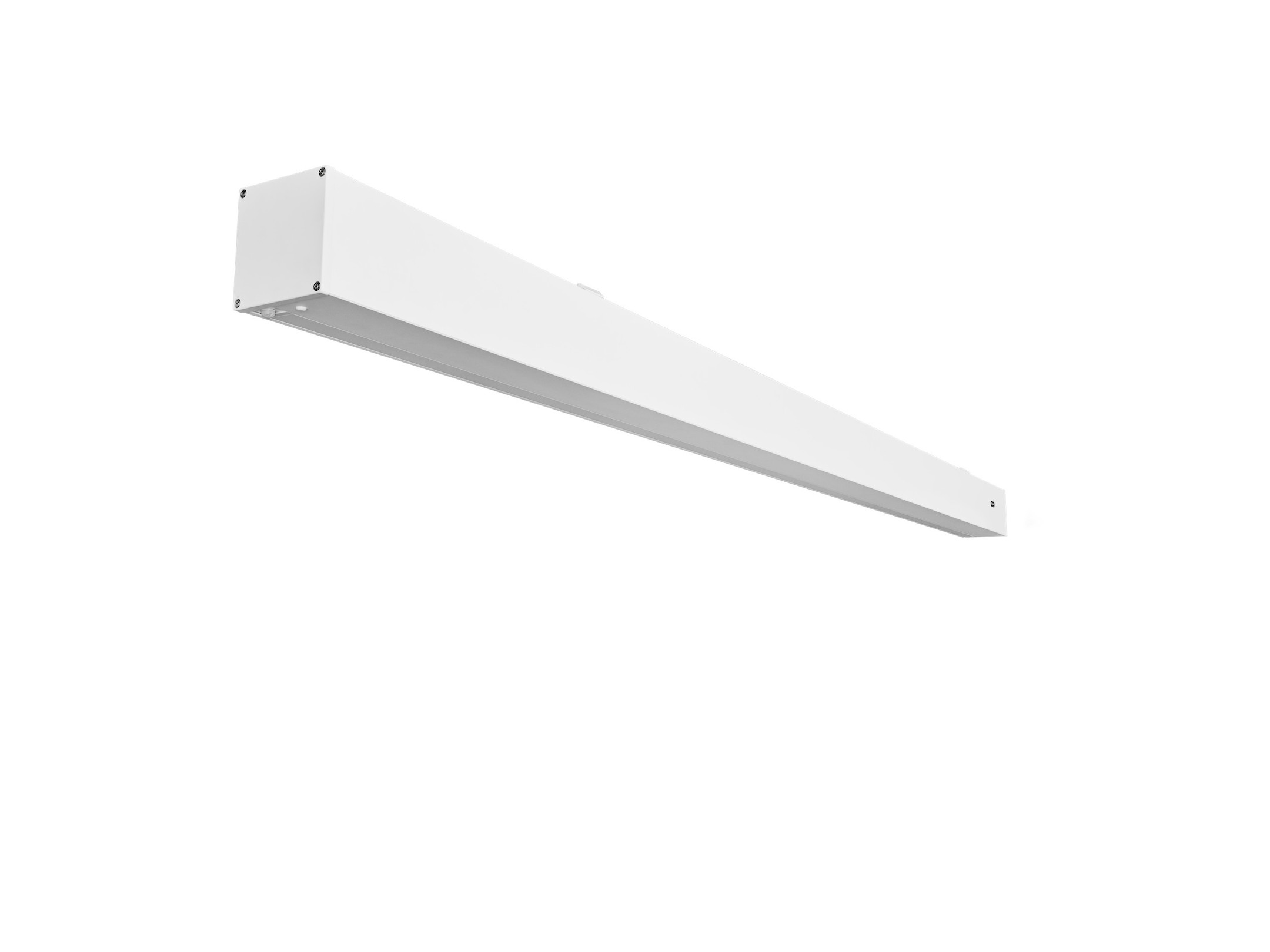

• Minimalist Housing: The matte-white aluminum housing with its modern square-profile design blends elegantly into any environment. Cabling is discreetly routed on the rear side. The spring-loaded bottom bar retracts smoothly, flush, and perfectly aligned into the housing.
• Silent Soft Start/Stop: A whisper-quiet premium tubular motor of the latest generation ensures exceptionally smooth and quiet screen operation.
• Flexible Installation: Multiple mounting options allow for discreet wall or ceiling installation.

Smart Connectivity: Fully Integrated

• Everything Included: RF and IR receivers are already integrated into the housing, including the corresponding remote controls.
• USB RF Trigger: The screen automatically deploys as soon as your projector powers on.
• System Integration: The RJ45 interface (RS232/RS485) enables integration into professional control systems (Crestron, Control4, RTI, etc.) or allows operation via potential-free contacts for wall switches and smart home controllers.
• Adjustable Drop Position: Easily adjust the lower stop position via remote control (max. +/- 15 cm) to perfectly match your room setup and furniture.

Experience cinema as it should be: acoustically unobtrusive and visually impressive with the celexon SOUNDVISION Premium Plus.

KEY INFORMATION

Screen Material

• celexon SOUNDVISION acoustic fabric screen with 1.1 gain
• Particularly fine micro-weave structure with approx. 150 micro-holes per square centimetre
• Innovative angled weave structure to prevent distracting moiré effects
• Detailed reproduction of high-resolution 4K content
• 150° viewing angle
• All-round black border and black lead-in
• Precise tension cable system for optimum flatness

Technology & Design

• Matte-white aluminum housing with modern square-profile design
• Quiet premium tubular motor (<50 dB) with Silent Soft Start/Stop technology
• Flexible wall or ceiling installation

Control Options

• Integrated RF and IR control including remote controls
• USB RF trigger for automatic operation via projector or AV receiver
• RJ45 interface (RS232/RS485) for media control systems and smart home integration
• Worldwide voltage compatibility (100–240 V, 50/60 Hz)

IN THE BOX

1x celexon SOUNDVISION Premium Plus Screen Electric Tension 298 × 168 cm – 135"
1x RF Remote Control
1x IR Remote Control
1x USB RF Trigger
2x Wall/Ceiling Mounting Brackets
2x Suspension Eyelets for Ceiling Mounting
