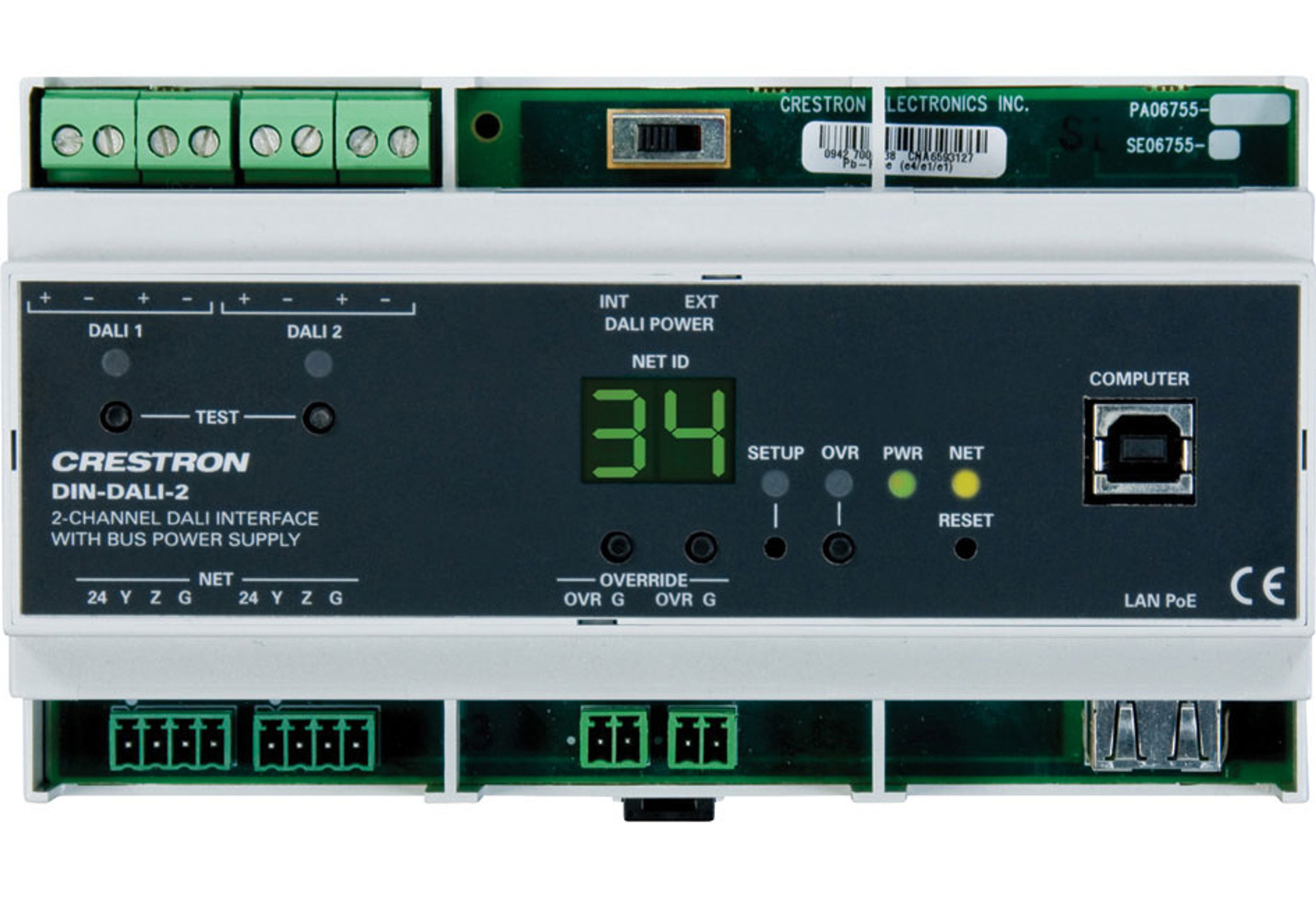

Crestron DIN-DALI-2 DIN Rail 2-Channel DALI Interface

Reliable lighting control based on DALI – with the Crestron DIN-DALI-2

The DIN-DALI-2 is a powerful, DIN-rail mountable interface for controlling up to 128 DALI luminaires via two independent DALI circuits. Thanks to integrated power supply, PoE or Cresnet communication and intuitive software support, it enables efficient, flexible and space-saving lighting control in commercial and institutional environments. The combination of easy installation, a wide range of functions and compatibility with Crestron® systems makes the DIN-DALI-2 the ideal solution for modern light management systems.

Key technical features at a glance:

• Control of up to 128 DALI luminaires via two independent DALI channels
• DALI-2™ certified
• Integrated DALI power supply – no external power supply unit required
• PoE or Cresnet communication for single-cable installation
• Supports Crestron DALI commissioning tool
• Override input for system fallback
• DIN rail mounting (9M wide)
• CEC Title 24 2013 compliant
• Compatible with all standard Crestron control systems (except 2-Series)

Two DALI channels – maximum flexibility in lighting control

The DIN-DALI-2 enables control of two separate DALI circuits, each with up to 64 addressable luminaires. Direct control of the digital ballasts allows individual control of each individual light source, independently of the power supply. This makes the DIN-DALI-2 ideal for complex lighting installations with variable zoning, especially in modern office, educational or retail spaces.

Integrated power supply – a genuine single-cable solution

Unlike many other DALI controllers, the DIN-DALI-2 does not require a separate power supply for the DALI bus system. Whether via Cresnet or PoE – the device fully supplies the bus and thus enables particularly simple wiring. The choice between the two operating modes is conveniently made via a switch on the device, which also makes the DIN-DALI-2 suitable for retrofitting solutions with existing CAT5 cabling.

Intuitive commissioning with the Crestron DALI commissioning tool

A specially developed software tool is available for efficient system setup. With its wizard-based user interface, ballast addresses can be assigned, scenes created and group and brightness settings intuitively configured. A particularly practical feature: when replacing defective luminaires, the software automatically recognises new hardware and transfers all parameters to the replacement device at the click of a mouse.

Seamless integration into Crestron systems

Thanks to full support of Crestron D3 Pro® and SIMPL, controlling DALI luminaires with the DIN-DALI-2 is just as easy as controlling a conventional Crestron dimmer. The system completely dispenses with complex addressing protocols or user-defined programming, integrating seamlessly into existing Crestron automation solutions.

Robust design for the control cabinet

Installation is quick and easy on standard DIN rails. Screw terminals on the top and bottom make wiring easy, while the front panel provides central access to all controls and status displays – even when installed in enclosures with a 45 mm cut-out. An external override input offers additional security by allowing a defined lighting scene to be activated in the event of a fault.

Conclusion

The DIN-DALI-2 offers a comprehensive, easy-to-implement solution for demanding lighting control projects based on DALI-2. The combination of integrated power supply, two-channel operation, intuitive software support and full Crestron integration means that the device meets the highest standards of functionality, flexibility and reliability.
