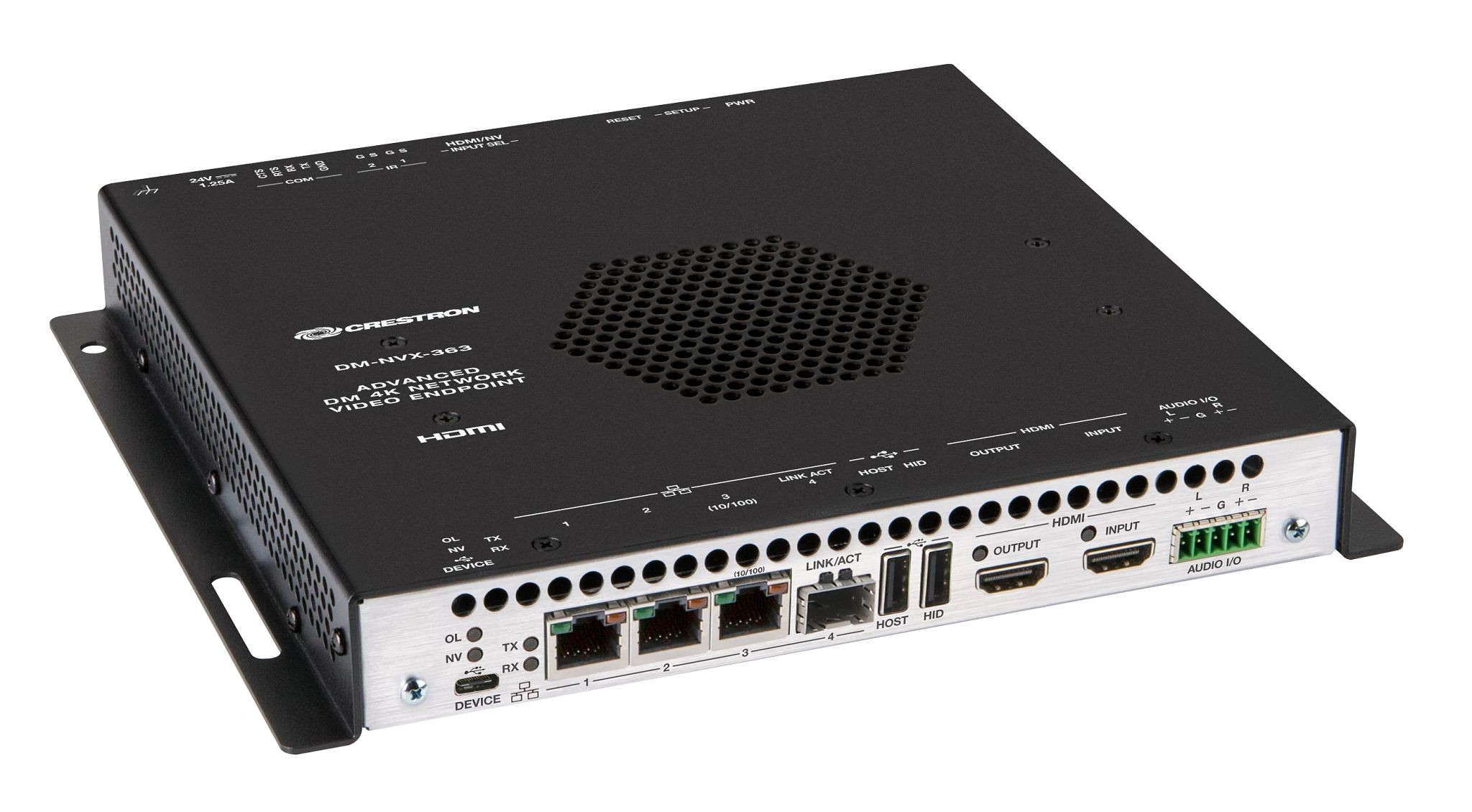

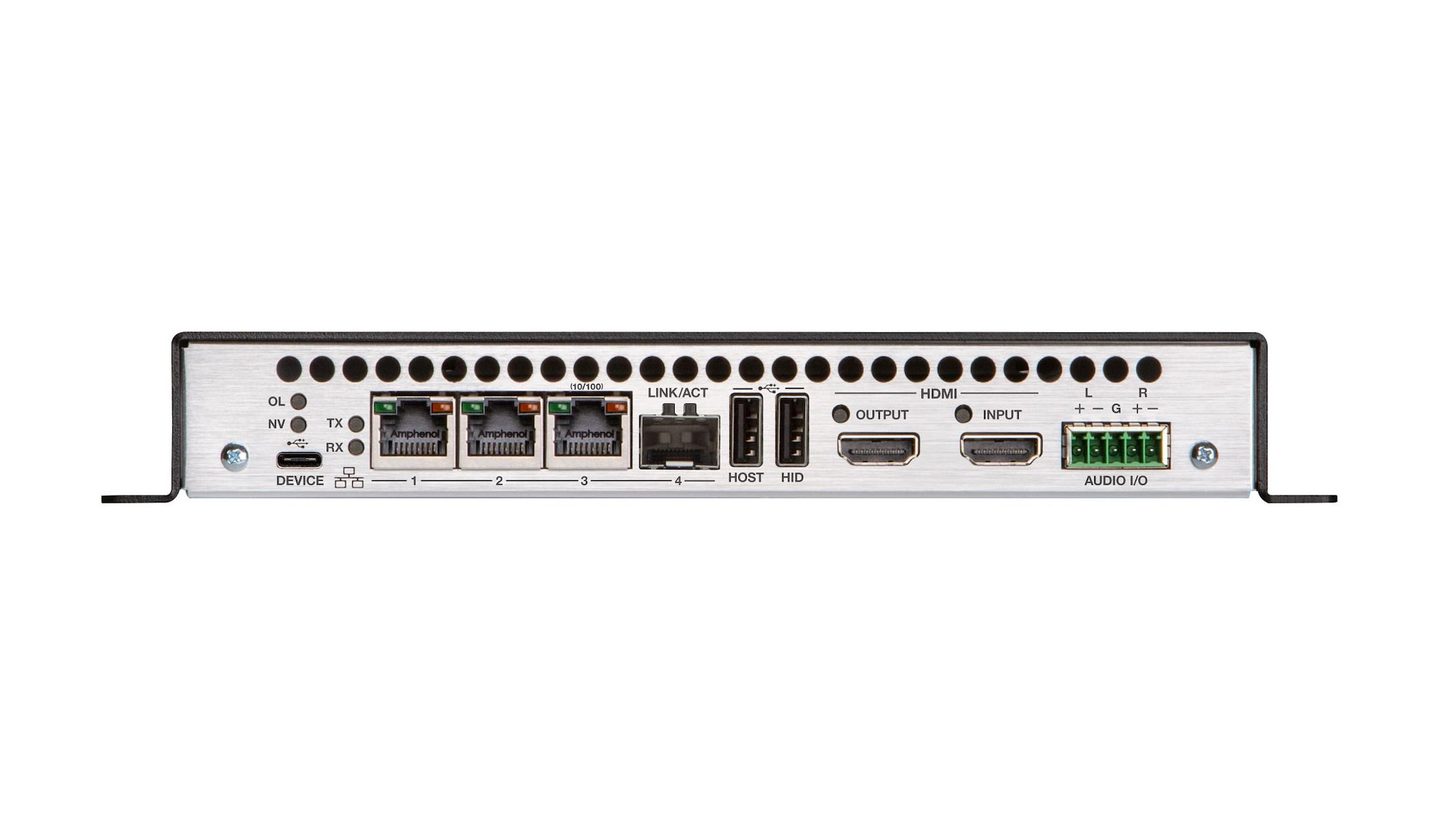

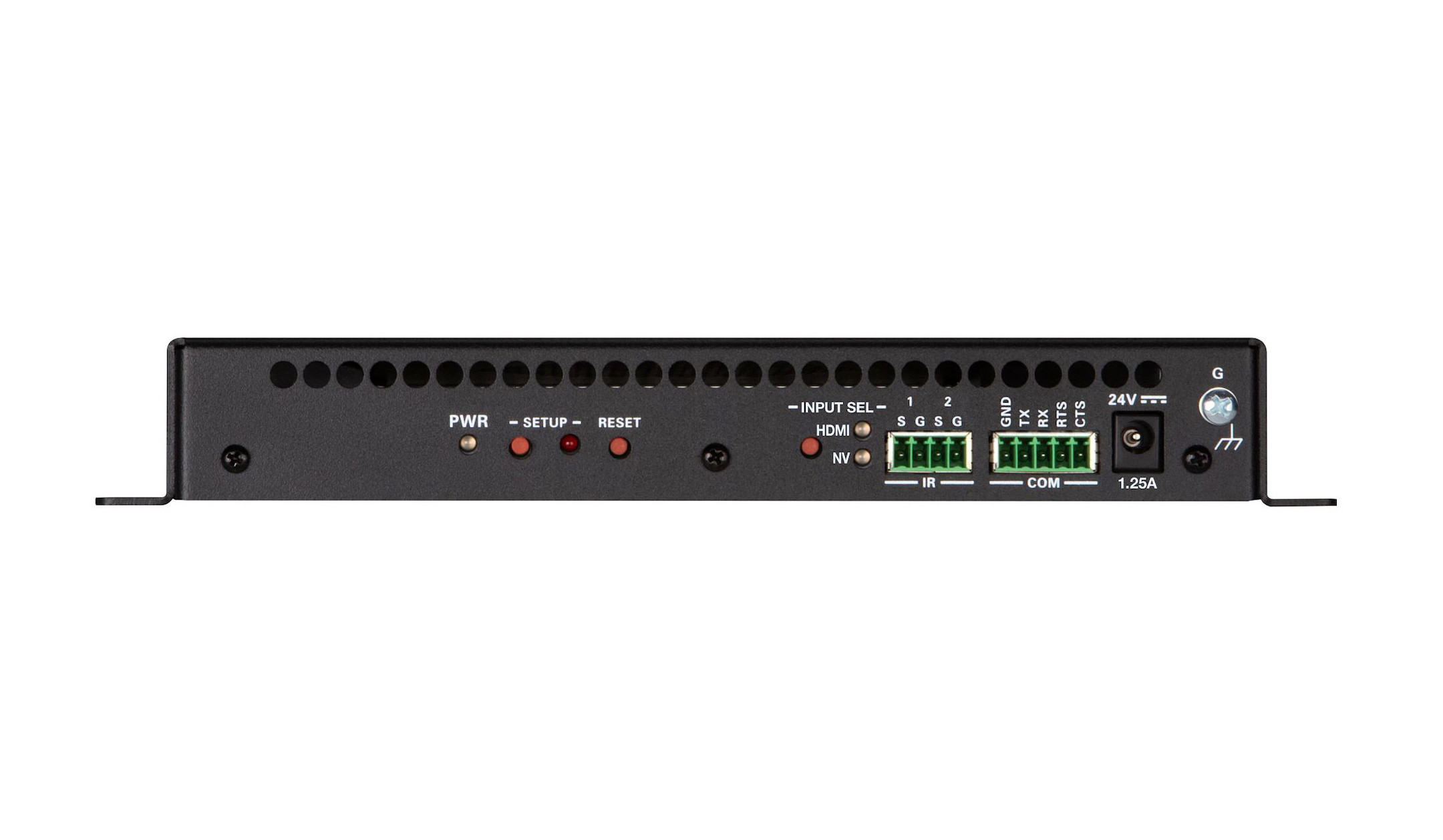

Crestron DM-NVX-363 DM NVX® 4K60 4:4:4 HDR Network AV Encoder/Decoder

The Crestron DM-NVX-363 is an advanced AV-over-IP encoder/decoder designed specifically for demanding AV installations. With the ability to transmit 4K60 4:4:4 video in real time over a standard Gigabit Ethernet network, the DM-NVX-363 offers a versatile and powerful solution for distributing high-resolution content in corporate, educational, and large campus environments.

Technical data at a glance:

• 4K60 4:4:4 video transmission over Gigabit Ethernet

• HDR10, HDR10+ and Dolby Vision® support
• Pixel Perfect Processing technology for unrivalled video quality
• HDCP 2.3 compliant
• Configurable as encoder or decoder
• One HDMI® input, one HDMI output with 4K60 4:4:4 scaler
• Video Wall processing
• Dynamic text overlay
• Preview image and background image for on-screen display
• Test pattern generator
• Analogue audio embedding or de-embedding
• 7.1 surround sound audio with downmixing
• Dante® and AES67 audio embedding and de-embedding
• USB 2.0 and KVM signal transmission
• Copper and Fibre Ethernet connection
• Automatic point-to-point connectivity
• Device control via RS-232, IR and CEC
• Easy set up via integrated web pages
• Compact surface-mount design
• Power over POE+ or optional power supply

High-performance 4K video transmission

With the DM-NVX-363, you can experience seamless real-time transmission of 4K60 4:4:4 video signals, designed for demanding applications such as conference rooms and classrooms. Pixel Perfect Processing technology ensures lossless transmission of video with no perceivable latency. This makes the DM-NVX-363 the ideal solution for displaying multimedia, video conferencing and live camera feeds.

Flexibility through encoder/decoder functionality

The DM-NVX-363 can be configured as both an encoder and a decoder, allowing for versatile use in a range of AV installations. It can send and receive HDMI signals over the network and offers quick and easy switching between operating modes. The integrated scaling ensures that the resolution of the video signal is optimally adapted to the connected display.

Video Wall processing and dynamic text overlay

With the video wall functionality, up to 64 displays can be configured in a seamless video wall. In addition, the DM-NVX-363 offers the option of overlaying dynamic text over the video image to display important information such as announcements or warnings.

Easy integration and management

The DM-NVX-363 is conveniently set up and managed via a web browser. Dante and AES67 support enables embedding and de-embedding of audio signals, while USB 2.0 and KVM signal transmission enables flexible control and operation of peripheral devices. The compact design and surface-mount capability make the DM-NVX-363 the ideal choice for a wide range of installation scenarios.

Maximum security and compatibility

With extensive security features such as 802.1X authentication and AES-128 encryption, the DM-NVX-363 meets even the strictest IT security requirements. It also offers comprehensive compatibility with existing networks and AV systems, including support for Crestron XiO Cloud® and Crestron Home® OS.

The DM-NVX-363 is the ideal choice for professional AV installations that require the highest levels of performance, flexibility and security. Please refer to the data sheet under "Downloads" for further technical specifications and details.
