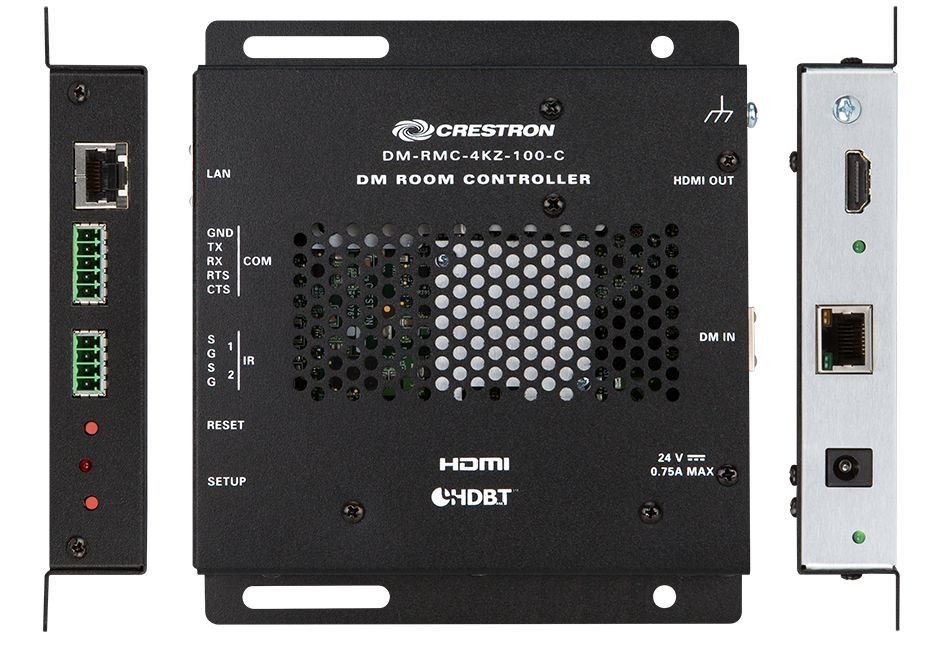

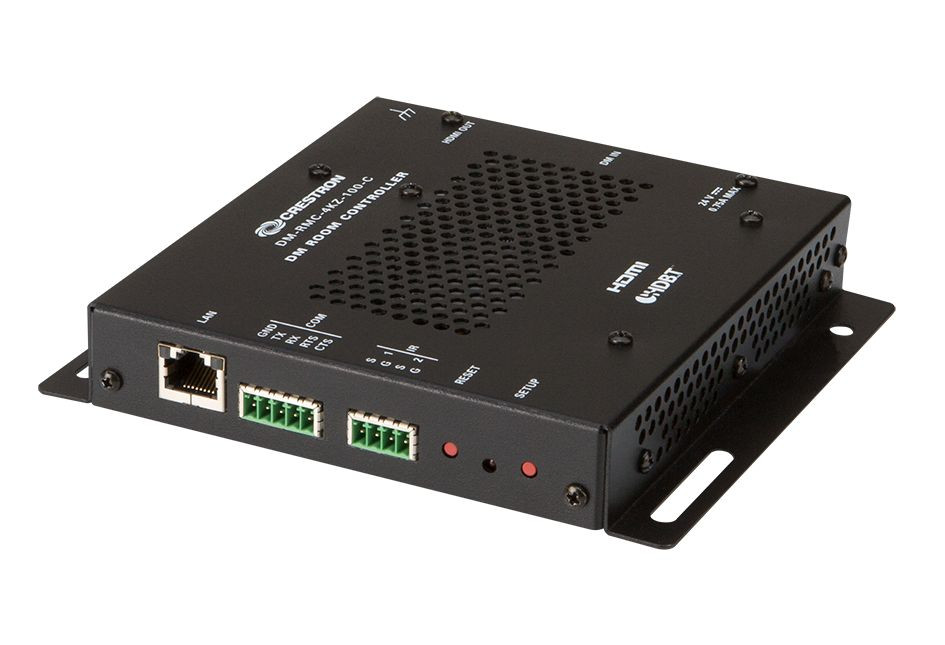

Crestron DM-RMC-4KZ-100C DigitalMedia 8G+® 4K60 4:4:4 HDR Receiver and Room Controller 100
Article no: 1000023190
Product information
DigitalMedia™ in perfection: DM-RMC-4KZ-100-C – The 4K60 HDR receiver & room controller from Crestron
The DM-RMC-4KZ-100-C is the ideal interface for modern AV installations – a powerful receiver and room controller in a single device. As part of the Crestron® DigitalMedia™ system, it supports 4K60 4:4:4 HDR content and transmits video, audio, control, network and power via a single CAT cable, enabling an elegant, space-saving and future-proof installation. Developed for the most demanding professional AV applications, it impresses with HDBaseT® compatibility, comprehensive control options and easy installation.
Technical highlights at a glance:
- HDMI®-/DVI output for 4K60 4:4:4 and HDR10
- DigitalMedia 8G+® & HDBaseT® compatible
- Transmission of Dolby® Atmos, DTS:X®, 7.1 PCM audio
- 10/100 Ethernet port built-in
- Control via CEC, IR, RS-232, Ethernet
- Supports 3D video, Deep Colour, HDCP 2.2
- Cable lengths up to 100 m (DM Ultra), 70 m (DM 8G), 50 m (CAT5e)
- Slim design, easy wall or ceiling mounting
- PoDM or HDBaseT PoE power supply
- Optionally expandable with USB signal transmission
4K60 4:4:4 & HDR – Visual brilliance without compromise
The DM-RMC-4KZ-100-C processes even the most demanding AV signals with full 4K60 4:4:4 colour depth and HDR10. Thanks to VESA® Display Stream Compression (DSC), this is done with virtually no loss of quality – perfect for modern media rooms, training centres or conference halls where razor-sharp and true-colour image reproduction is crucial.
DigitalMedia 8G+® – The powerful single-cable solution
With support for Crestron's DigitalMedia 8G+® technology, the device transmits audio, video, Ethernet, control signals and power – all via a single CAT cable. Depending on the cable type used, transmission distances of up to 100 m are possible, even with UHD and 4K content. This not only reduces the amount of cabling required, but also the potential for errors and installation costs.
Flexible control – easy to integrate
The device offers a variety of control options: RS-232, infrared (IR), Ethernet and HDMI-based CEC allow for precise, programmable control of the connected display – without any additional control cables or IR transmitters. This makes the DM-RMC-4KZ-100-C not only a signal receiver, but also the central control unit for your AV installation.
HDBaseT® compatibility – Maximum connection freedom
Thanks to full HDBaseT compatibility, the receiver can be connected directly to HDBaseT-certified sources without the need for a separate Crestron transmitter module. This significantly expands the range of possible applications and offers investment protection in heterogeneous AV environments.
Compact and discreet – ideal for any environment
At just over one inch deep, the DM-RMC-4KZ-100-C is optimised for discreet installations behind displays or above projectors. The side-mounted connectors and status LEDs make installation and maintenance easy. Power can be supplied either via PoDM or an optional power adapter – for an especially slim "One-Wire" installation.
Conclusion
The DM-RMC-4KZ-100-C is the perfect solution for modern AV distribution with the highest demands on image quality, system integration and control. Whether as part of a large-scale DigitalMedia network or as a standalone installation, this device offers maximum performance with minimal installation effort.
Technical data
| Name | Crestron DM-RMC-4KZ-100C DigitalMedia 8G+® 4K60 4:4:4 HDR Receiver and Room Controller 100 |
|---|---|
| Article number | 1000023190 |
| Manufacturer SKU | DM-RMC-4KZ-100-C |
| Model name | DM-RMC-4KZ-100C |
| WEEE number | DE57403598 |
| Brand | Crestron |
| Product Type | Controller |
| Product width | 14.3 cm |
| Product height | 15.5 cm |
| Product depth | 2.8 cm |
| Weight | 0.468 kg |
| Colour | Black |
| Condition | New |
| Warranty | 24 Month |
| Warranty type | Bringin service Service and support information |
