Crestron HD-PS402 4x2 4K60 4:4:4 HDR presentation system

Crestron HD-PS402 – Powerful 4K60 presentation system for professional AV environments

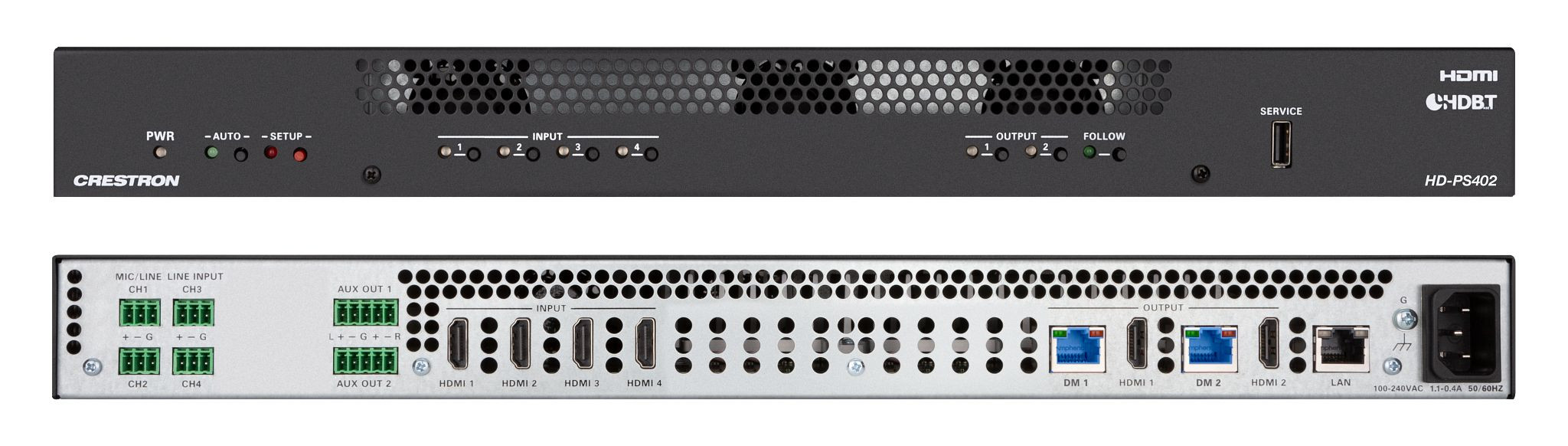

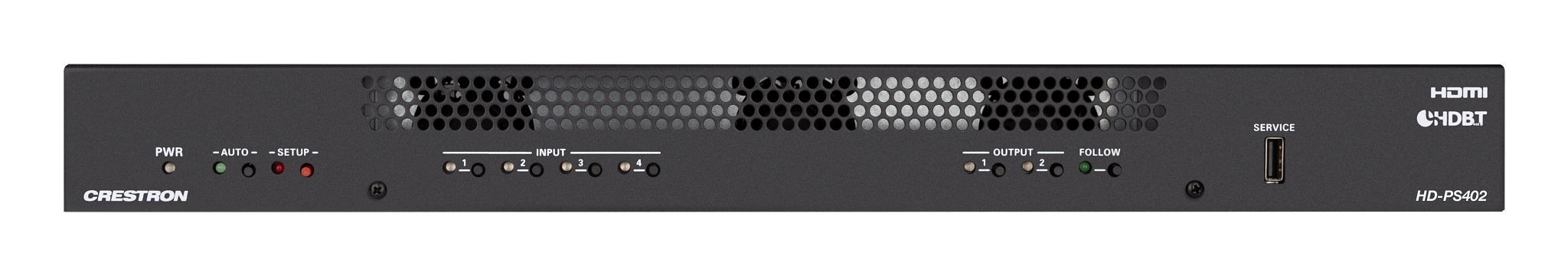

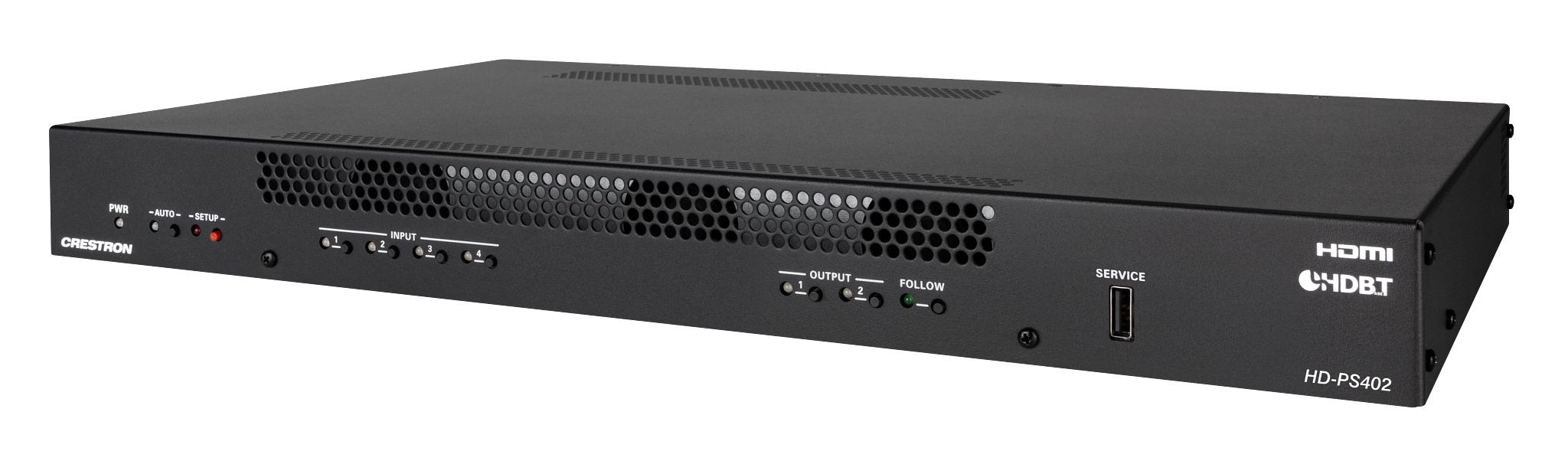

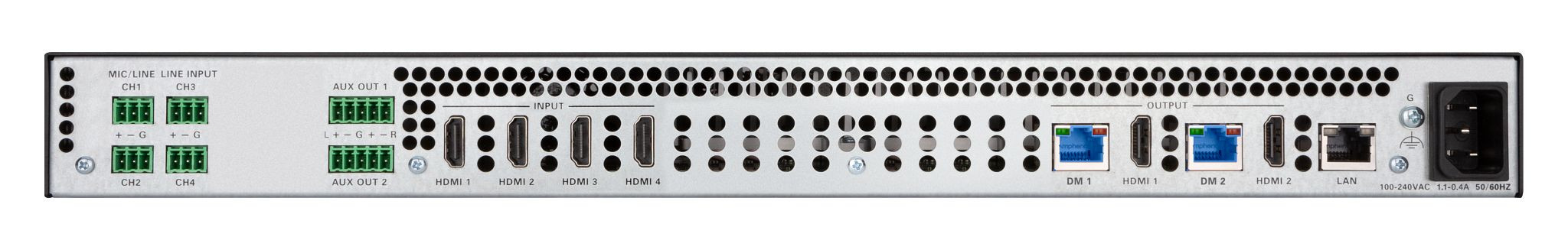

The Crestron HD-PS402 is a high-quality 4K60 4:4:4 AV presentation system designed specifically for use in conference rooms, training centres and classrooms. With its four HDMI inputs, two mirrored HDMI and DM® Essentials outputs, and advanced signal processing, the system offers out-of-the-box functionality, seamless integration, outstanding image quality and comprehensive audio processing – all in a 1U rack-mountable enclosure.

Key technical features at a glance:

• Four HDMI® inputs, auto input selection
• Two mirrored HDMI/DM® Essentials outputs
• 4K60 4:4:4 scaler with HDR10, HDR10+ and Dolby Vision®
• Audio mixing with audio embedding and de-embedding
• EDID management for optimal picture formats
• Text, image and background overlay
• CEC, IR and RS-232 control over outputs
• HDBaseT®-certified DM Essentials outputs
• Built-in web interface for easy set-up
• USB power port, PoE capable
• XiO Cloud® and.AV Framework™ support
• 1 RU rack-mountable, HDCP 2.3 compliant

4K60 performance with scalable image output

The HD-PS402 supports 4K60 4:4:4 resolution with High Dynamic Range – including HDR10, HDR10+ and Dolby Vision®. Thanks to the integrated video scaler, the input signal resolution is automatically adapted to the native format of the output device. The scaled output ensures consistently optimal image quality, regardless of the source and display device. In addition, text and image overlays can be displayed – for example, to show source names, notes or logos.

Intelligent audio mixing for clear presentations

Each of the two mirrored outputs has its own 5-channel audio mixer. Two microphone/line inputs and two additional analogue audio sources can be flexibly combined with the embedded HDMI audio. A 6-channel mixer is available for the AUX outputs. Gain and mute controls can be individually adjusted to ensure perfect sound in any environment.

Automatic control – without additional programming

With features such as auto source selection, auto display control (e.g. CEC on/off switching) and the integration of presence sensors, the HD-PS402 is ready for immediate use – without a separate control system. All settings can be made via the integrated web interface. This reduces installation effort to a minimum.

Seamless integration into existing systems

The DM Essentials outputs are HDBaseT® certified and can be connected directly to HDBaseT-compatible receivers. Control commands (CEC, IR, RS-232) are also transmitted via these outputs – ideal for unified control of displays. EDID management ensures maximum compatibility and signal stability. All Crestron 3-Series® and newer control systems are supported.

Secure, scalable and future-proof

The HD-PS402 meets the highest IT security standards, including 802.1X authentication, Active Directory® integration, PKI, TLS and SSH. The device can be conveniently managed, configured and monitored remotely via XiO Cloud® – ideal for large-scale AV installations. AV Framework™ support also enables easy integration into existing AV infrastructures.

Conclusion

The Crestron HD-PS402 is the professional all-in-one solution for 4K presentations in modern rooms. Thanks to intelligent signal processing, flexible audio functions and easy setup, the system is convincing both technically and in practical use – reliable, secure and ready to use.
