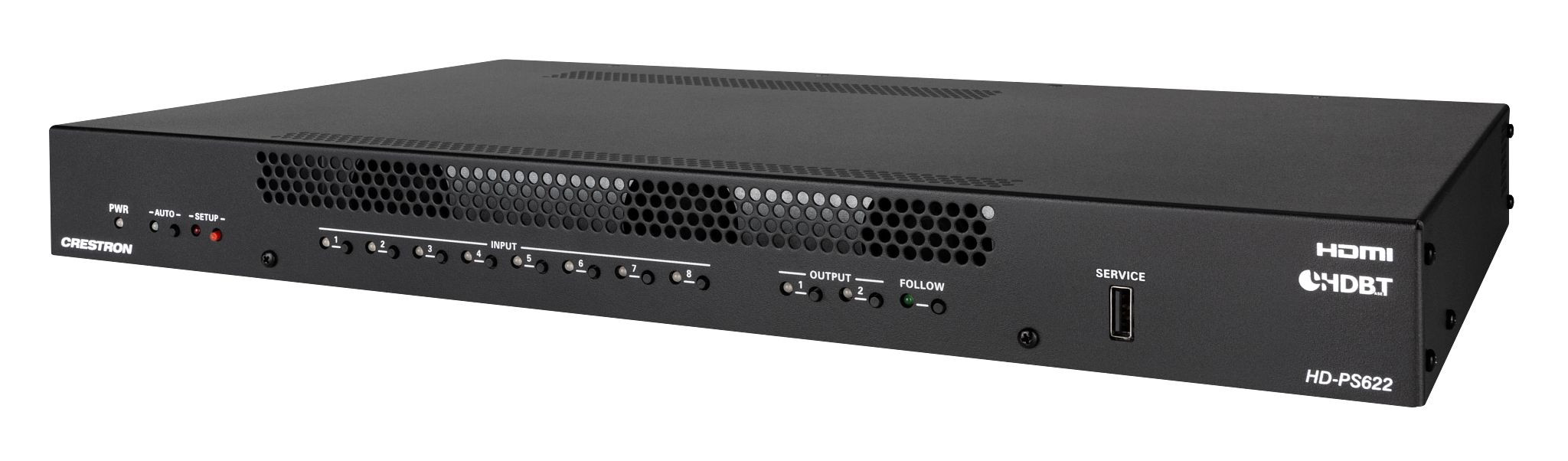

Crestron HD-PS622 8x2 4K60 4:4:4 HDR presentation system

Crestron HD-PS622 – The versatile 8x2 4K60 presentation system for demanding AV environments

The Crestron HD-PS622 is a powerful, rack-mountable AV presentation system with 8 inputs, 2 mirrored outputs and comprehensive audio and video processing in 4K60 4:4:4 quality. Designed for conference rooms, classrooms and event spaces, the device combines matrix switching, HDR support, audio mixing, advanced control options and extensive network security – ready to use without additional programming.

Overview of the main technical features:

• 4K60 4:4:4 AV presentation system with scaler and matrix switching
• 6 HDMI® and 2 DM® Essentials inputs, auto switching
• 2 HDMI outputs mirrored with 2 DM Essentials outputs
• HDR10, HDR10+ and Dolby Vision® support
• 9-channel and 10-channel audio mixers with de-/embedding
• EDID management and overlay functions (text, image, background)
• CEC, IR and RS-232 control for displays and sources
• HDBaseT®-certified outputs, XiO Cloud®-ready
• USB power port, web interface, 1U rack-mountable
• Enterprise-level security features

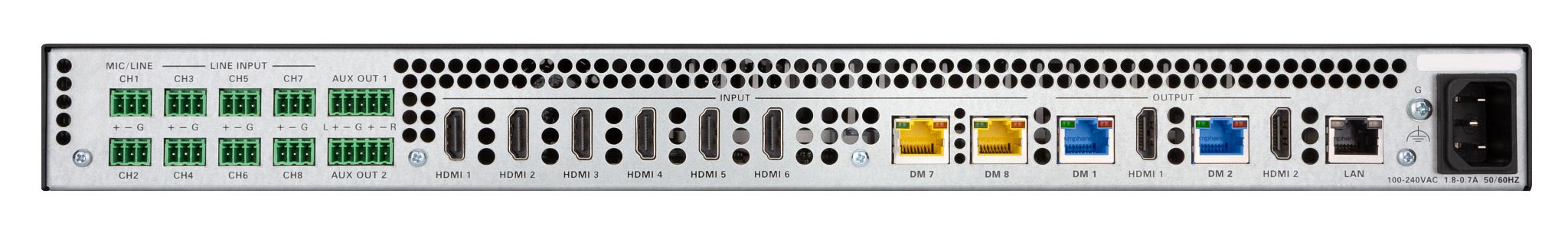

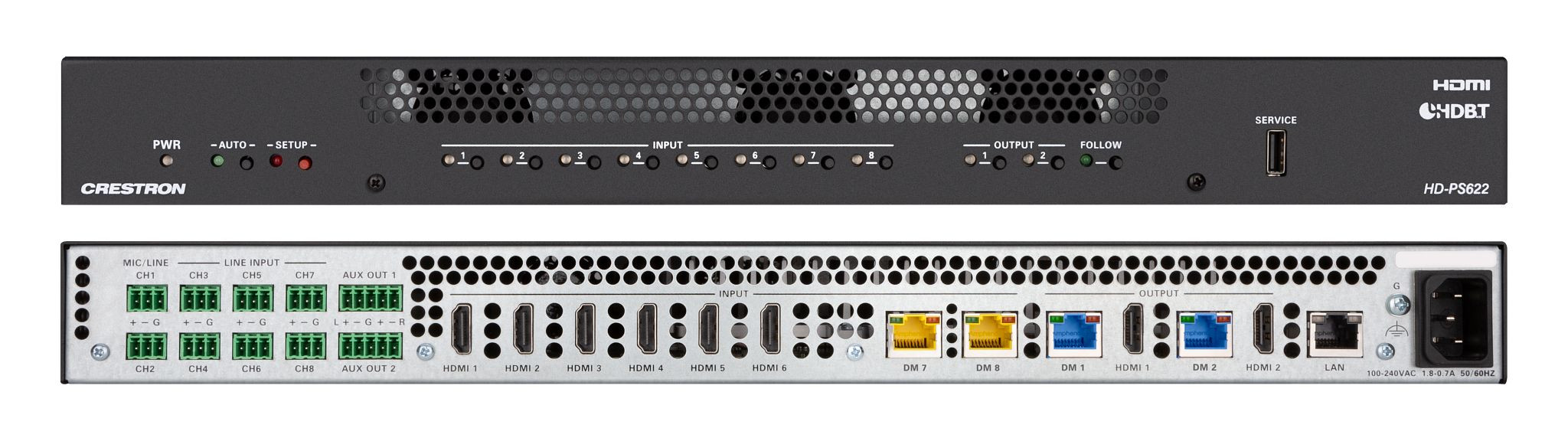

8 inputs, 2 outputs – flexible, professional-level signal distribution

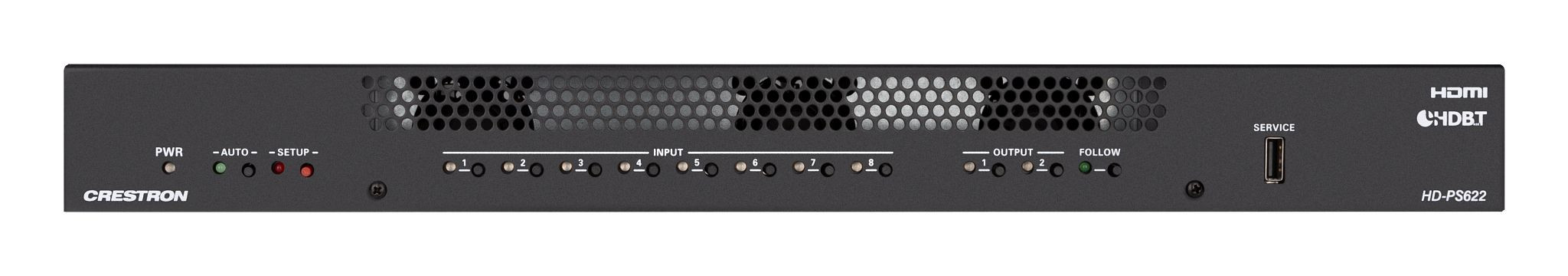

With six HDMI and two DM Essentials inputs, as well as two HDMI outputs (each mirrored with DM Essentials), the HD-PS622 is designed for a wide range of presentation scenarios. Automatic input selection can be either priority-based or based on the last active signal. Manual control is possible directly via buttons on the device or via the web interface.

Brilliant image quality thanks to scaler and HDR support

Each output supports resolutions up to 4K60 4:4:4 and is equipped with its own scaler that adapts the input signal to the display's native format. In addition to HDR10, HDR10+ and Dolby Vision® are also supported. Text and image overlays as well as background images can be integrated to display source names, instructions or logos, for example.

Comprehensive audio mixing for four outputs

The HD-PS622 offers four powerful audio mixers: two 9-channel mixers for the HDMI/DM outputs and two 10-channel mixers for the AUX outputs. The mixers combine embedded HDMI audio with up to eight analogue mono audio inputs. Volume and mute are individually controllable for each output – ideal for professional audio setups.

Control without a separate system

CEC, IR or RS-232 can be used to control connected displays and sources directly – even without an additional control system. It is even possible to control external devices via the DM Essentials outputs, provided that compatible HDBaseT receivers are used. The device also supports Crestron Certified Drivers for IP and CEC communication.

Enterprise-level management and security

The HD-PS622 is designed for continuous professional use. Security protocols such as 802.1X, TLS, SSH and Active Directory® ensure secure integration into corporate networks. With XiO Cloud® and the integrated web interface, the configuration can be efficiently managed, stored and transferred to multiple devices – ideal for scalable AV installations.

Conclusion

The Crestron HD-PS622 is a professional all-in-one solution for presentation environments with high demands on image, sound, control and security. Its flexible connectivity, HDR support, audio processing and instant readiness make it the ideal centre for modern AV systems.
