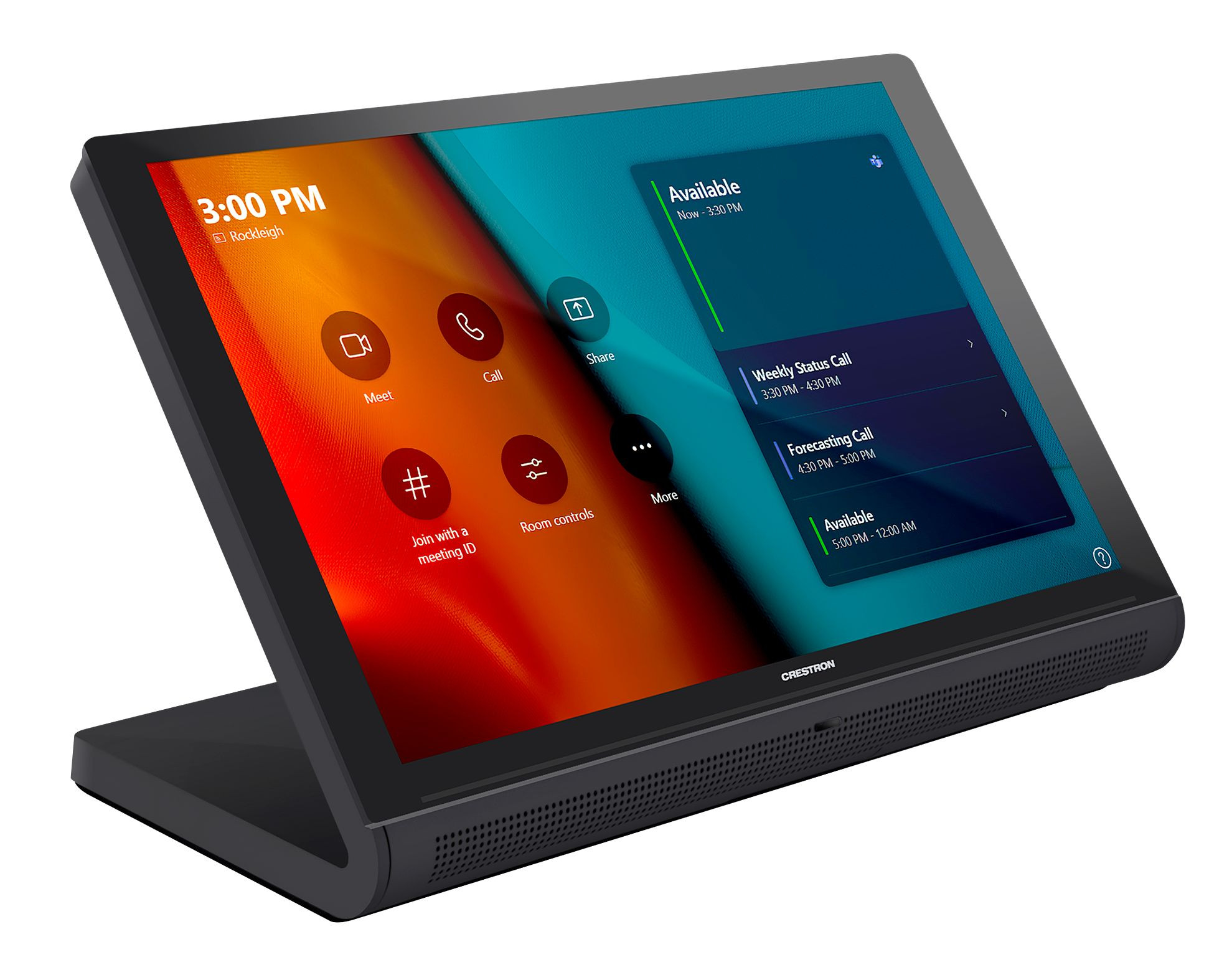

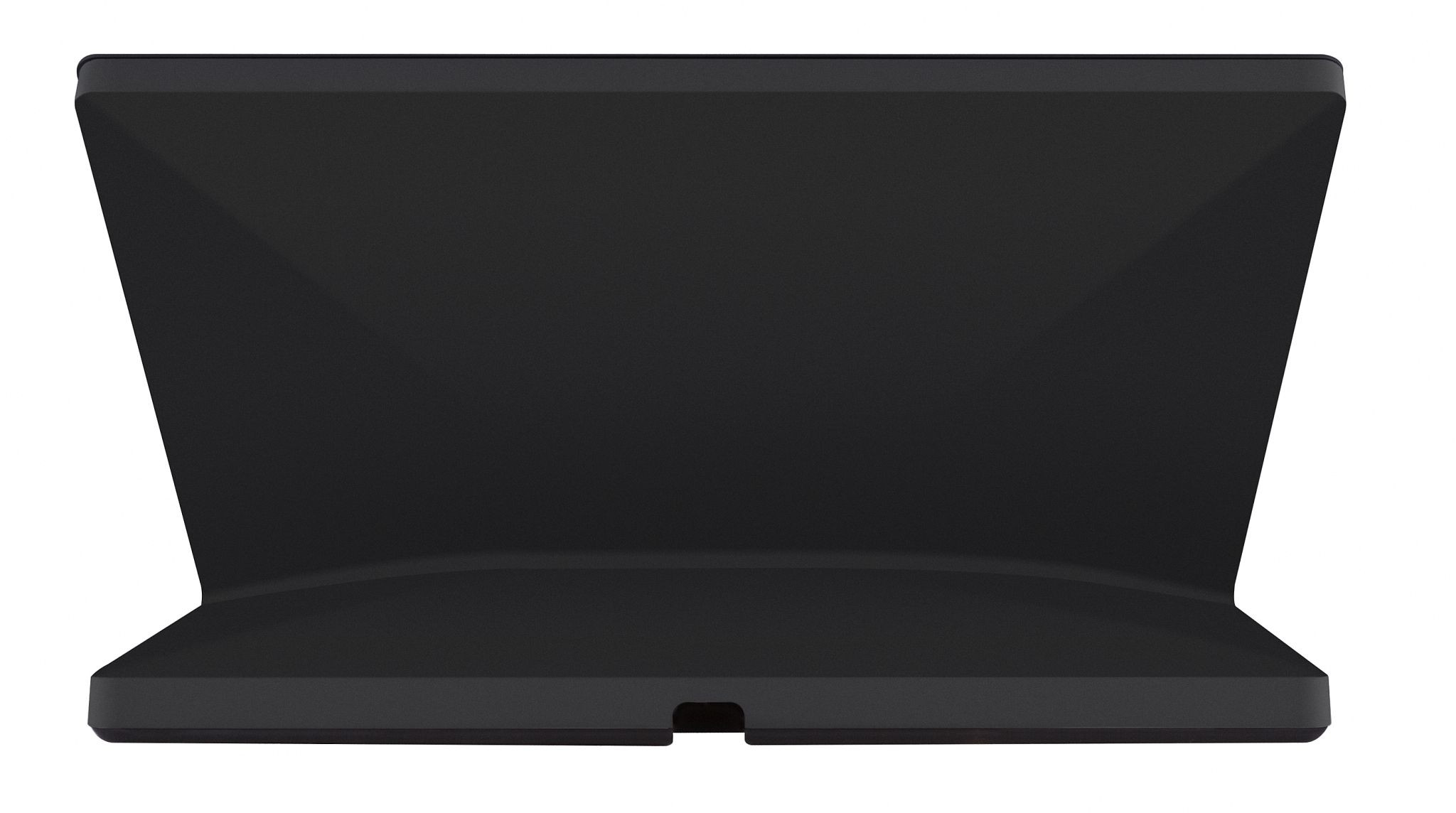

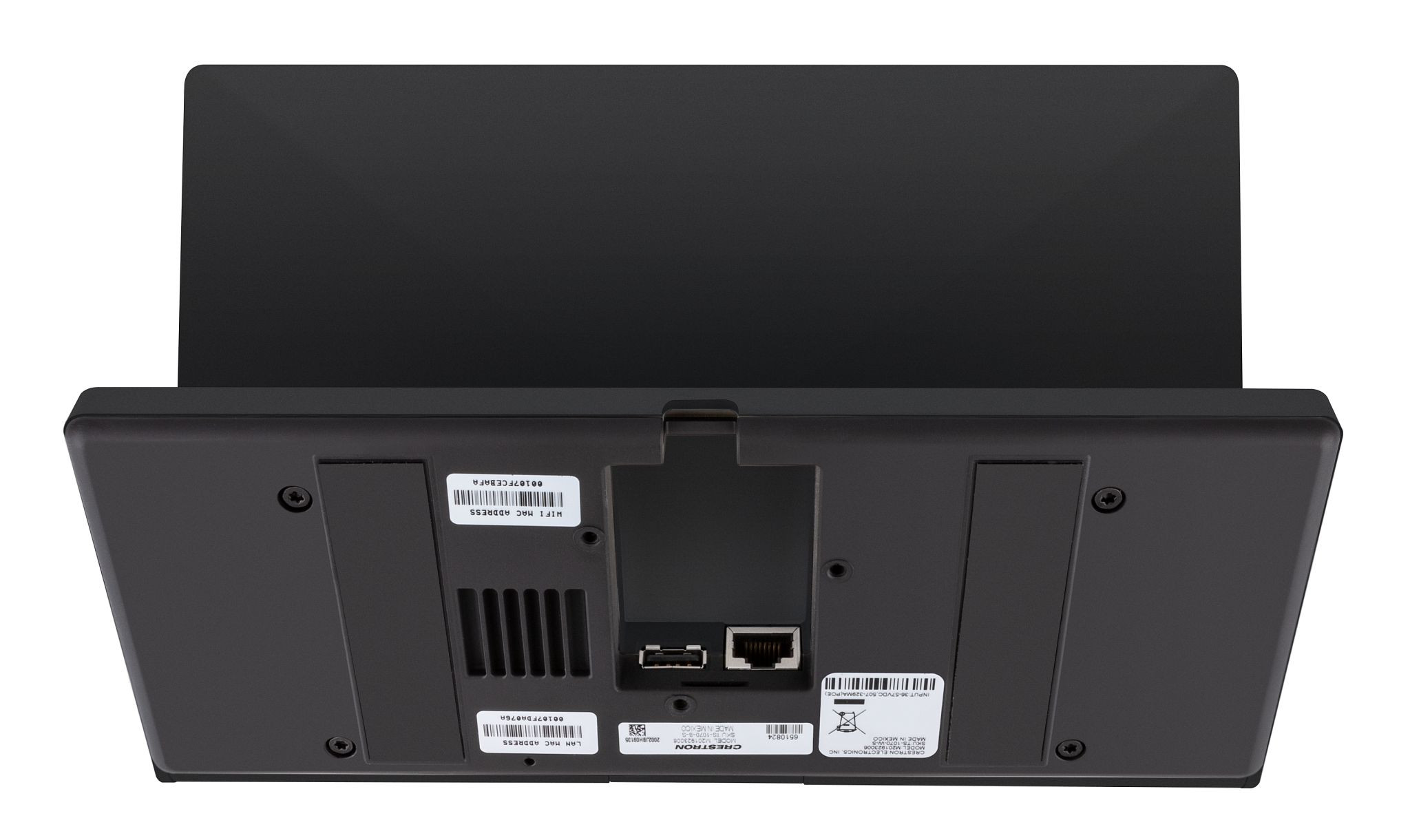

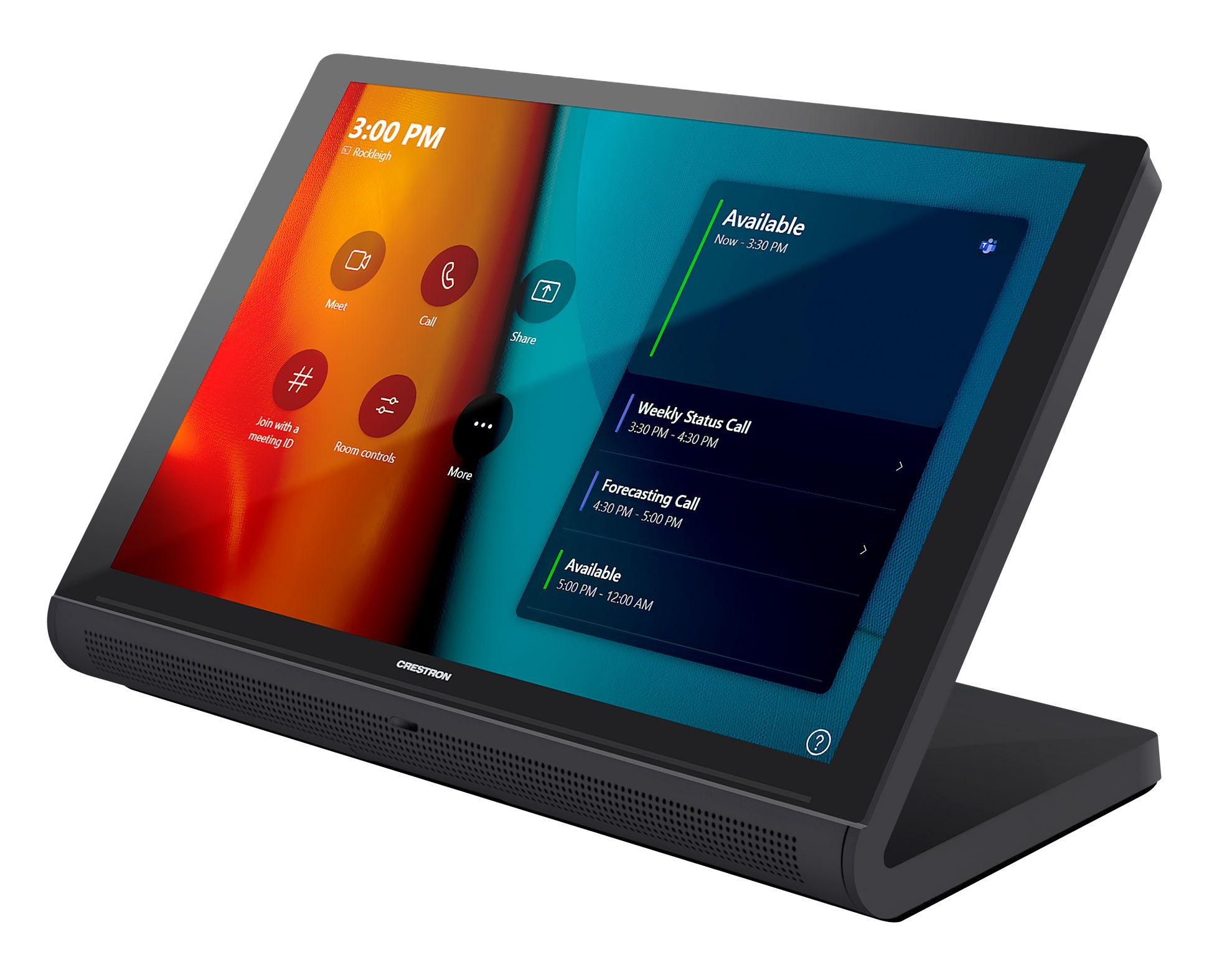

Crestron TS-1070-B-S Touch display

An elegant and versatile tabletop touchscreen with web browsing, Crestron HTML5 and Smart Graphics® software technology, custom programmable icons, H.265/H.264 video streaming, Rava® SIP intercom, Wi-Fi network® connectivity, and PoE+ (Power over Ethernet Plus) network power. Integrated applications are available for room planning, conferencing and home automation.

• Next Generation Crestron® Desktop Touch Screen
• 257 mm (10.1-inch) widescreen colour display with active matrix and WUXGA resolution of 1920 x 1200
• Capacitive touchscreen display
• Individually programmable virtual control keys
• Supports Crestron HTML5 and Smart Graphics® software for custom projects
• Built-in Rava® SIP intercom
• Built-in speaker and microphone
• H.265, H.264, or MJPEG video streaming display
• Native apps for Crestron Home® OS, Sonos® Home Sound Control, Zoom Rooms™ conferencing control, Microsoft Teams® online meeting solution, and various room scheduling services
• Built-in Bluetooth® communication beacon
• Built-in web browsing
• Single-wire Ethernet connection with PoE or PoE+ power
• Wi-Fi® network connectivity
• USB 2.0 port for room presence accessory
• Enterprise-level security and authentication
• Web, cloud or device-based configuration

Advanced touchscreen control

The TS-1070 offers a sleek and powerful interface for controlling technology in the home, boardroom, classroom or command centre. The touchscreen offers an intuitive, fully customisable interface with user-friendly capacitive controls, true feedback and real-time status display. A built-in proximity sensor wakes up the screen without user intervention, and automatic brightness control ensures optimal visibility in different lighting conditions.

Individually programmable virtual keys

The TS-1070 features a universal status bar that is populated with virtual buttons for quick access to common touchscreen functions. The touchscreen is pre-configured with virtual buttons for power, home, light, up, down, and microphone. Each button can be programmed through a Crestron control system to provide custom functionality, and unused buttons can be individually hidden. The universal status bar fades in and out with simple swipe gestures on the touchscreen display.

Dynamic user interfaces

The TS-1070 supports custom user interfaces created with the Crestron HTML5 user interface and Smart Graphics technologies, which allows greater flexibility for UI developers and programmers.

• The Crestron HTML5 user interface allows UI designers to develop rich front-end user interfaces with increased reusability and efficiency using modern web methods. Crestron HTML5 user interface development tools are provided to simplify the creation of user interfaces that build on standard web technologies
• Smart Graphics allows programmers to integrate fluid gesture-driven controls, animated feedback, extensive metadata, embedded applications and widgets, and full-motion video into their user interfaces. Smart Graphics offers dynamic features such as graphical buttons and sliders, lists and toolbars, drag-and-drop objects, dashboard widgets, screensavers and customisable themes.

Voice recognition function

With integrated voice recognition, spoken commands can be given to the TS-1070 to quickly turn devices on or off, select and play a specific media source, change the channel, select a lighting scene, lower the blinds, lock the doors, arm the security system, or enter a password. Simply say a command and Crestron will do the rest.

Video streaming

Thanks to native support for H.265, H.264 and MJPEG formats, the TS-1070 can display live streaming video from an IP camera, a streaming encoder (Crestron DM-TXRX-100-STR or similar) or a DigitalMedia™ switcher. The video is transmitted to the touchscreen via Ethernet, so no additional video cabling is required.
