Crestron TSW-770-MSMK-B-S Multisurface mounting kit for the TSW-770 series, black smooth

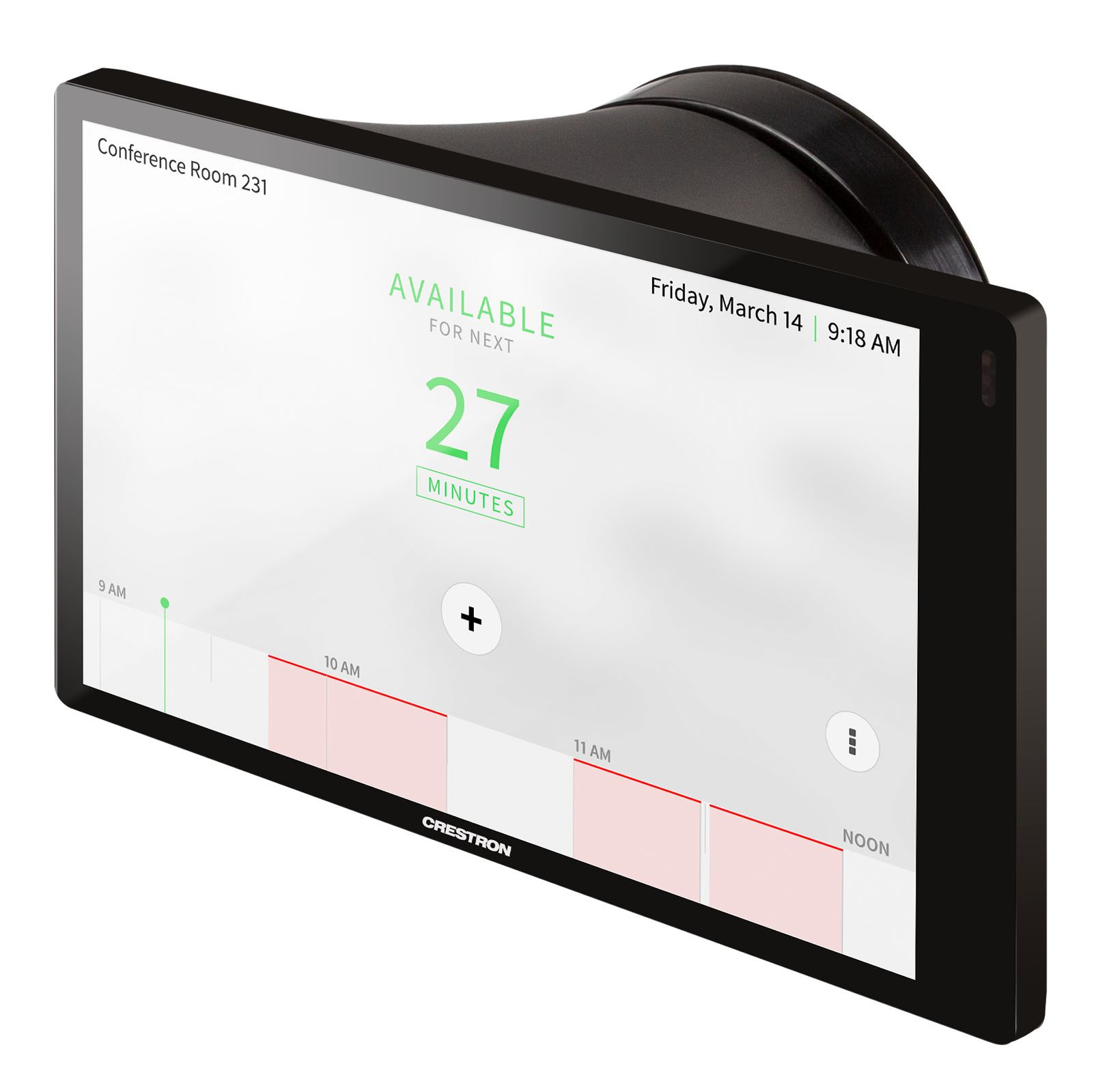

Enables flush mounting of a TSW-770 or TSS-770 series touchscreen to a glass wall or other smooth, flat surface. Ideal for mounting at the entrance of a meeting room for room scheduling applications.

The TSW-770-MSMK multisurface mounting kit provides a versatile solution for surface mounting a TSW-770 or TSS-770 series touchscreen. The multisurface mounting kit allows the touchscreen to be mounted directly to glass, granite, marble, wood panelling, plaster, smooth masonry or virtually any other flat surface. The TSW-770-MSMK is ideal for mounting at the entrance of a meeting room for room scheduling applications and is compatible with the TSW-770-LB light bar, which clearly indicates the status of room availability.

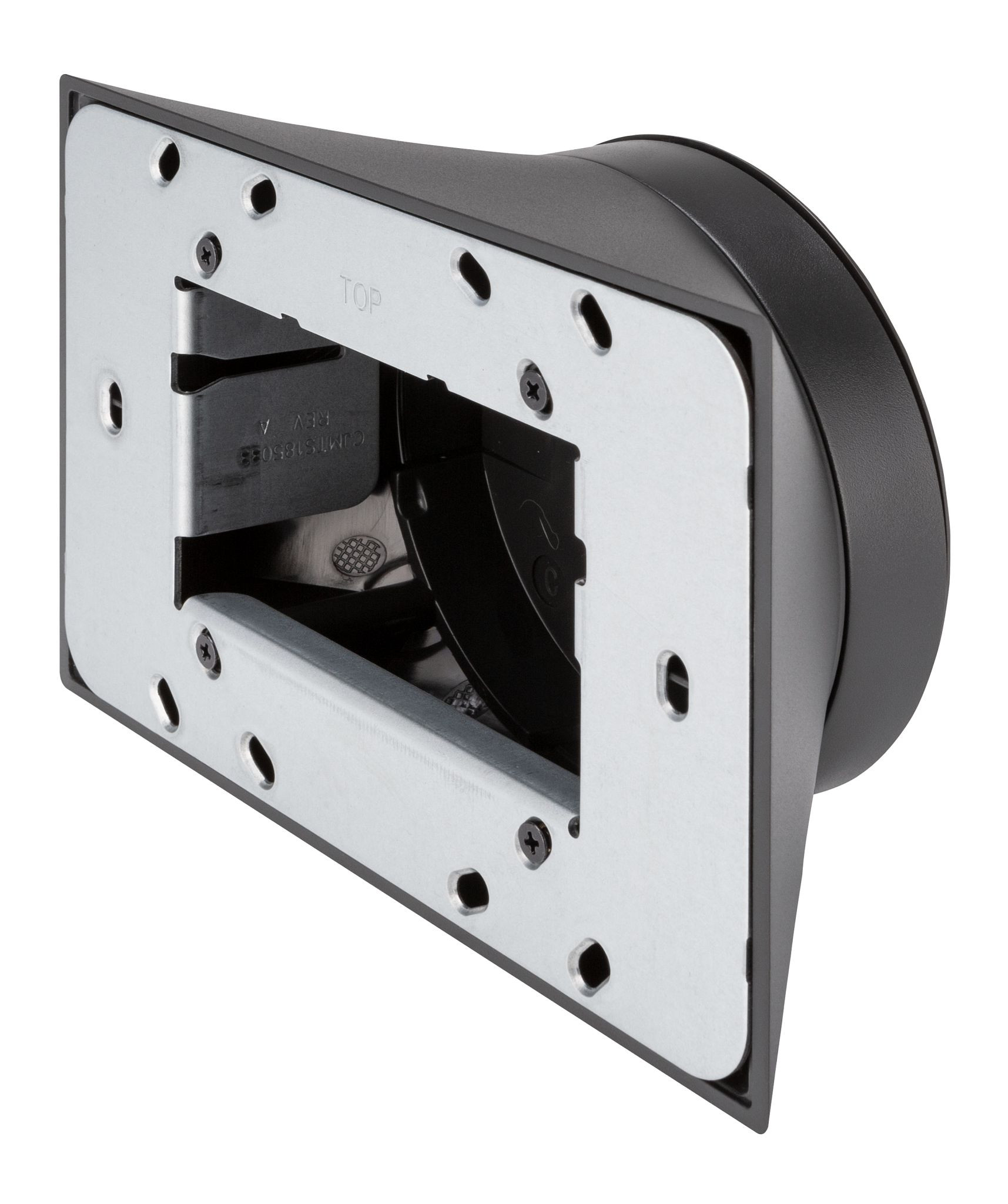

The TSW-770-MSMK mounts to a flat, smooth surface without screws using the included self-adhesive housing. For a finished appearance when mounted on a transparent glass wall, a self-adhesive plastic cap is supplied, which is simply stuck to the opposite side of the glass behind the device. Templates are supplied for the MSMK and the plastic cap to ensure that both are level and correctly aligned with the surface.

The TSW-770-MSMK comes complete with a self-adhesive plastic channel for smooth surfaces that conceals the cables leading from the floor, ceiling or an adjacent wall, pillar or post to the touchscreen. The conduit is paintable and consists of three 0.91 m (3 ft) sections and an assortment of elbows and couplers.

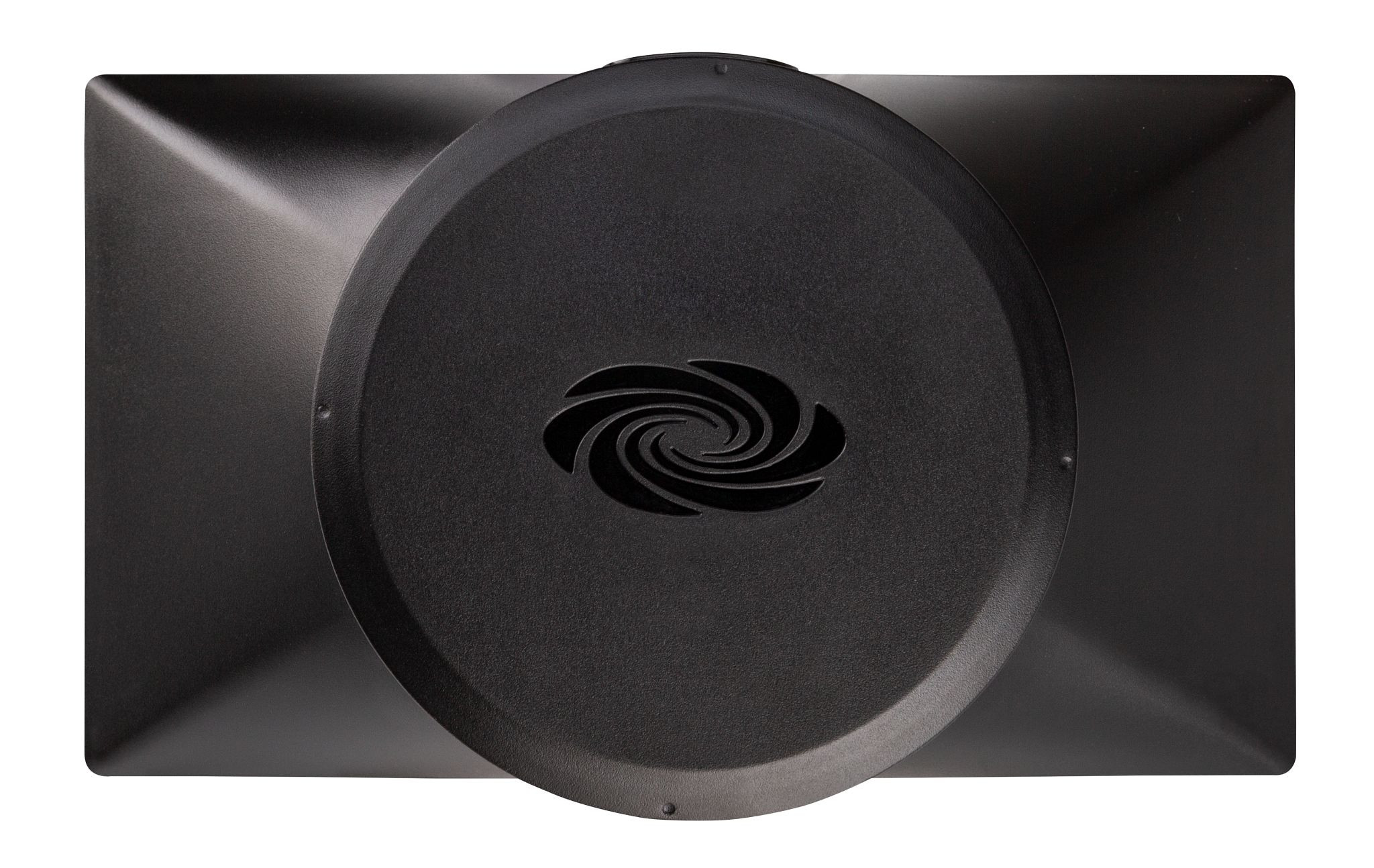

The back of the TSW-770-MSMK enclosure provides four cutouts (top, bottom and sides of the enclosure) for concealed routing of cables to the touchscreen using the included self-adhesive cable guide. A plastic cover with an opening for the cable guide is attached to the rear housing to conceal unused cut-outs.

• Allows flush mounting of a TSW-770 or TSS-770 series touchscreen on virtually any flat, smooth surface
• Ideal for mounting at the entrance of a meeting room for room scheduling applications
• Supports mounting on glass surfaces and partitions
• Compatible with the TSW-770-LB light bar for a clear indication of room availability status
• Safe, screwless installation with the removable and self-adhesive rear housing
• Provides a choice of cable channels to conceal cabling
• Includes a rotating plastic cover to conceal unused cut-outs
• Available in smooth black or white finish
