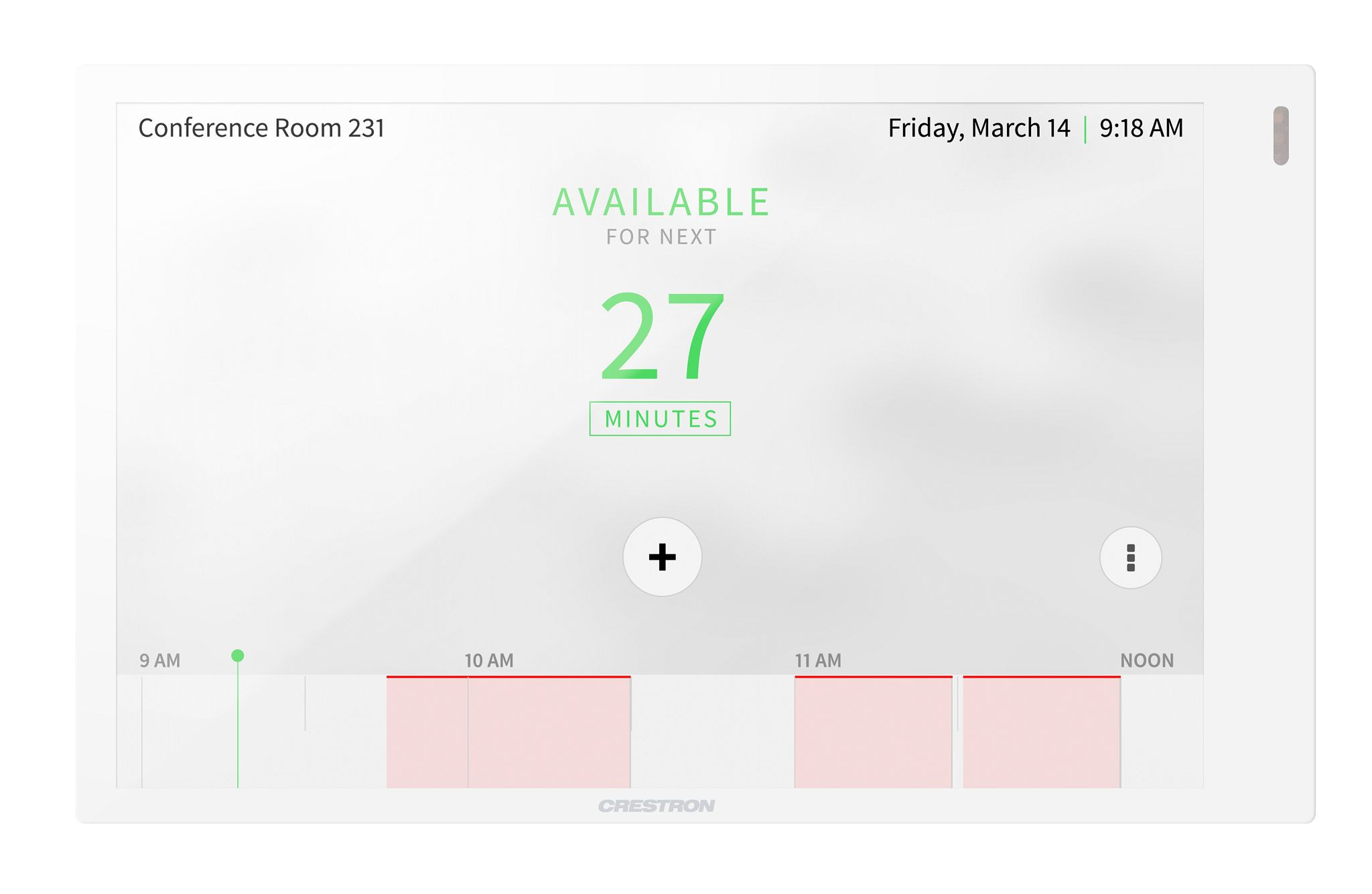

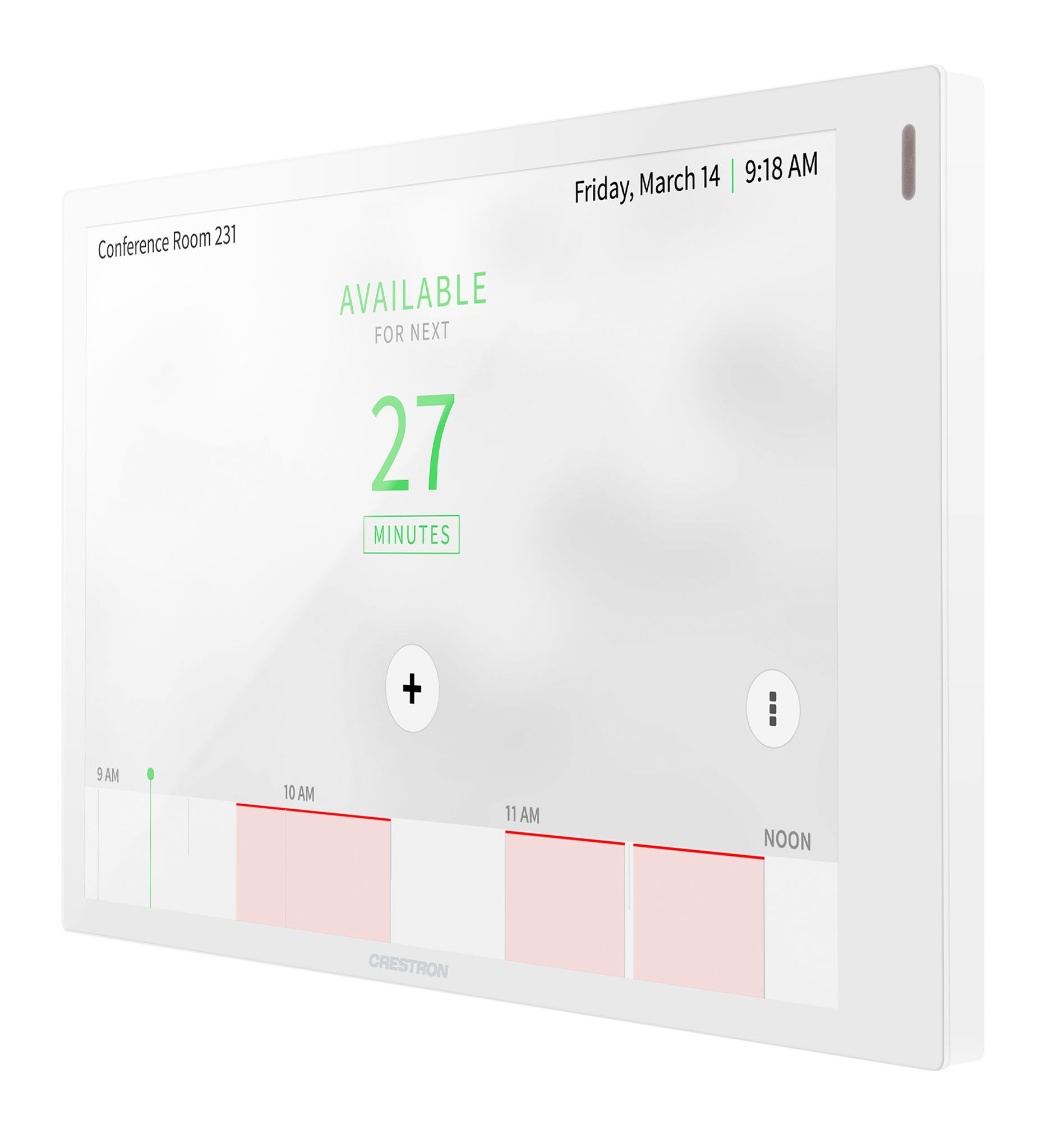

Crestron TSW-770-W-S Touch display

Crestron TSW-770-W-S: elegant 7" touch panel for professional control and room automation

The Crestron TSW-770-W-S is a highly functional 7-inch touch panel for wall mounting in modern white. It combines an intuitive user interface with comprehensive functionality and is ideal for conference rooms, smart living solutions, educational institutions or corporate infrastructures. Whether control, video streaming, intercom or room booking – this panel is a true all-rounder for professional applications.

Technical highlights at a glance:

• Display: 7" capacitive touchscreen, 1280 x 800 WXGA resolution
• Operation: programmable buttons, voice control, motion sensor, automatic brightness control
• Software: HTML5 and Smart Graphics® support for customisable user interfaces
• Communication: Rava® SIP intercom, VoIP, integrated speakers & microphone
• Video: H.265/H.264/MJPEG streaming, compatible with IP cameras and encoders
• Apps: Crestron Home®, Zoom Rooms™, Sonos®, room planning tools and third-party apps
• Network: Ethernet with PoE/PoE+ and Wi-Fi
• Security: 802.1X, TLS, HTTPS, Active Directory, SNMP, XiO Cloud® compatibility
• Connectors: 2x USB 2.0 for accessories such as light bars or RFID readers

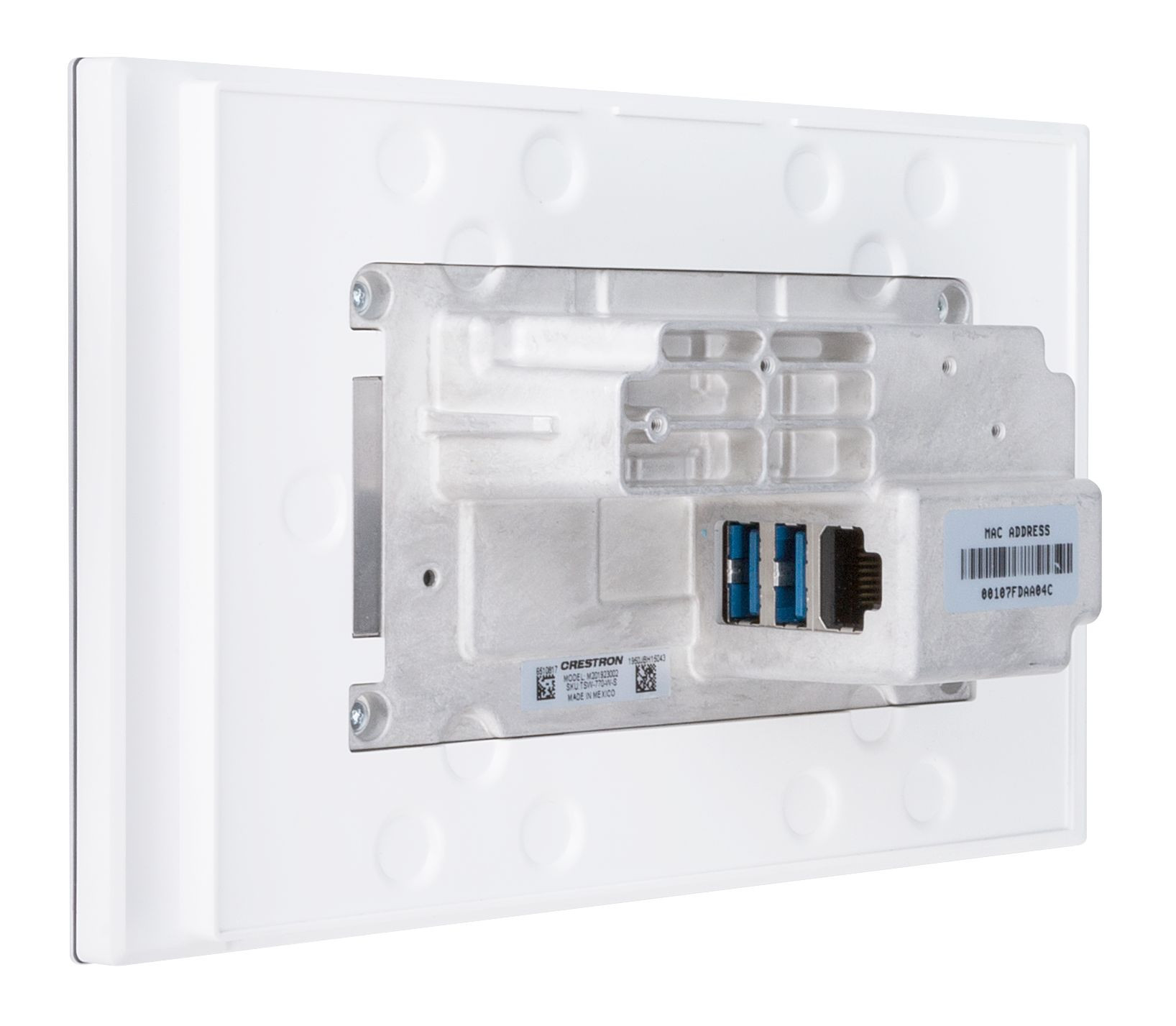

• Mounting: wall bracket included, numerous optional mounting kits available

Maximum flexibility through customisable user interfaces and native app integration

The TSW-770 supports customised interfaces based on HTML5 and Smart Graphics®, enabling the integration of animated control elements, dashboards or video feeds. Native apps for Crestron Home, Sonos, Zoom Rooms or room planning systems can be used directly on the touch panel – without an additional controller or programming effort. Voice control, motion detection and configurable buttons make operation particularly convenient.

Communication centre with video, intercom and web access

With support for video streaming (H.265/H.264/MJPEG), live images from IP cameras can be displayed directly. The integrated Rava® SIP intercom technology enables high-quality two-way communication over Ethernet – both with other Crestron panels and via SIP-enabled telephone systems. An integrated web browser allows access to online content, while Bluetooth beacon functionality ensures room allocation and mobile interaction.

Easy installation, secure management and smart expandability

The touch panel is integrated into the network via Ethernet with PoE/PoE+ or WLAN – control, video, communication and power supply are provided via a single cable. Setup is done via a web interface, the cloud or locally on the device. With XiO Cloud, devices can be remotely managed and scaled. Accessories such as light strips, RFID readers or status displays can be connected for room planning. Various installation options enable precise integration into any environment – from new buildings to retrofitting. The integrated security features ensure reliable use in a corporate environment.
