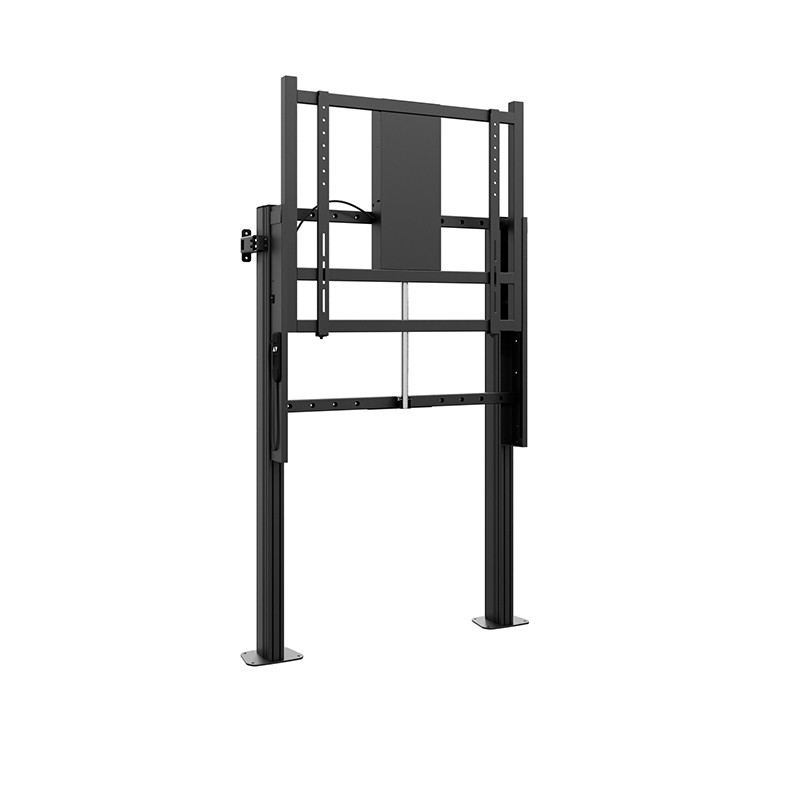

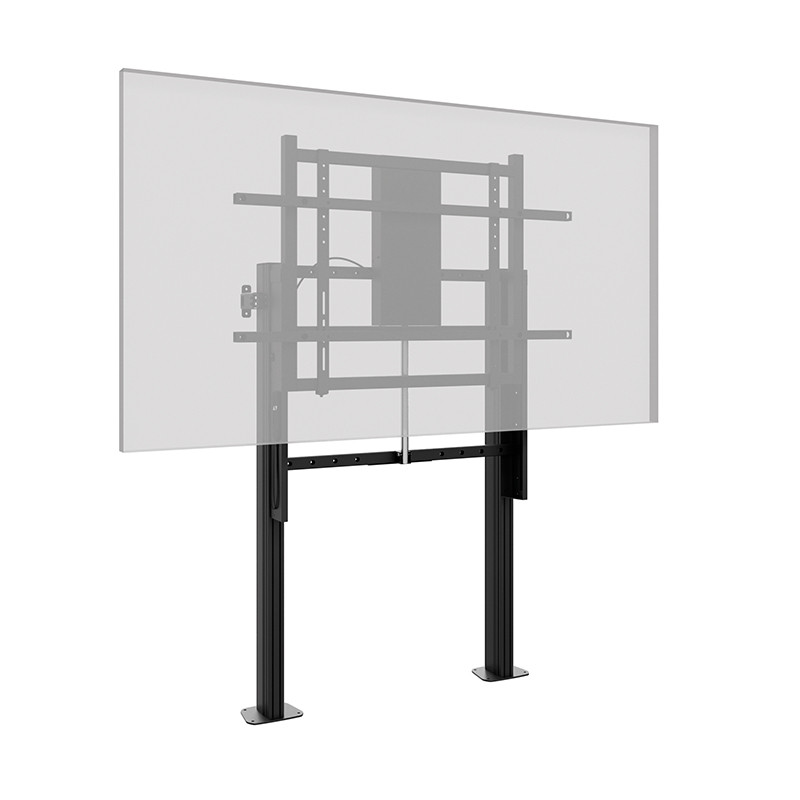

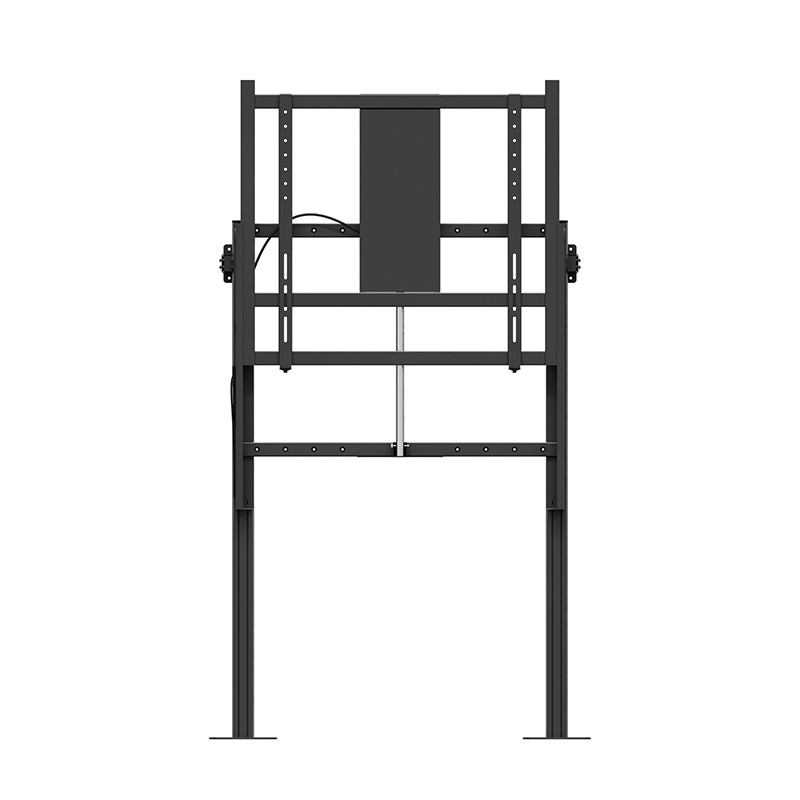

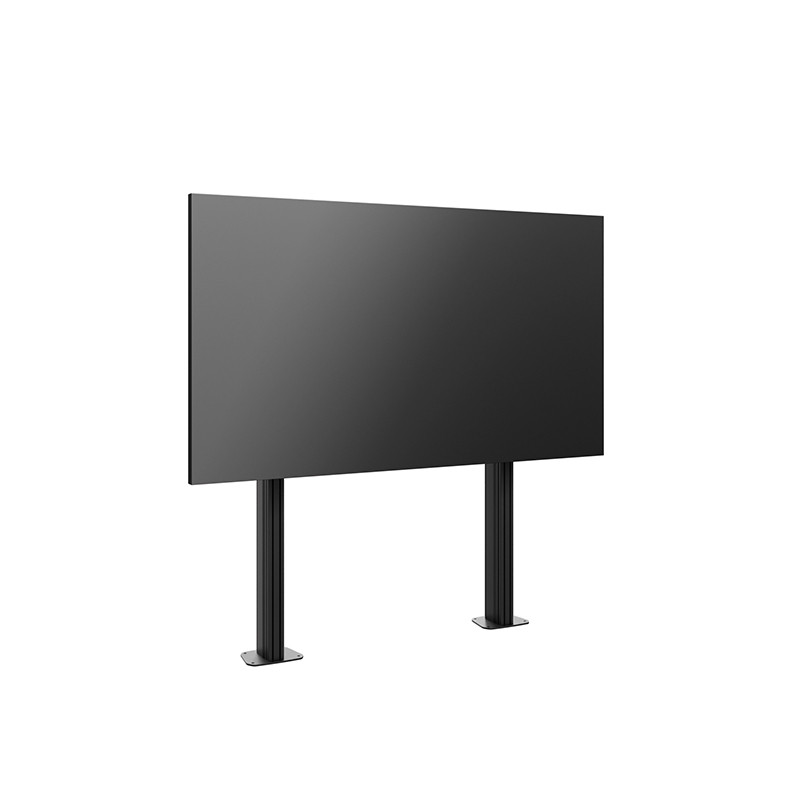

Hagor CPS Floor-to-Wall Moto 86 – 110″ System for floor-to-wall mounting with electric height adjustment for 86–110" displays

CPS Floor-to-Wall Moto 86–110" from Hagor – Compact stand system with motorised height adjustment

The CPS Floor-to-Wall Moto 86–110" from Hagor is an electrically height-adjustable stand system for space-saving floor-to-wall mounting. Developed for professional use with large-format displays, this system combines precise functionality with minimal space requirements. It is ideal for conference rooms, training facilities or public areas where a wall-mounted yet flexible display solution is required.

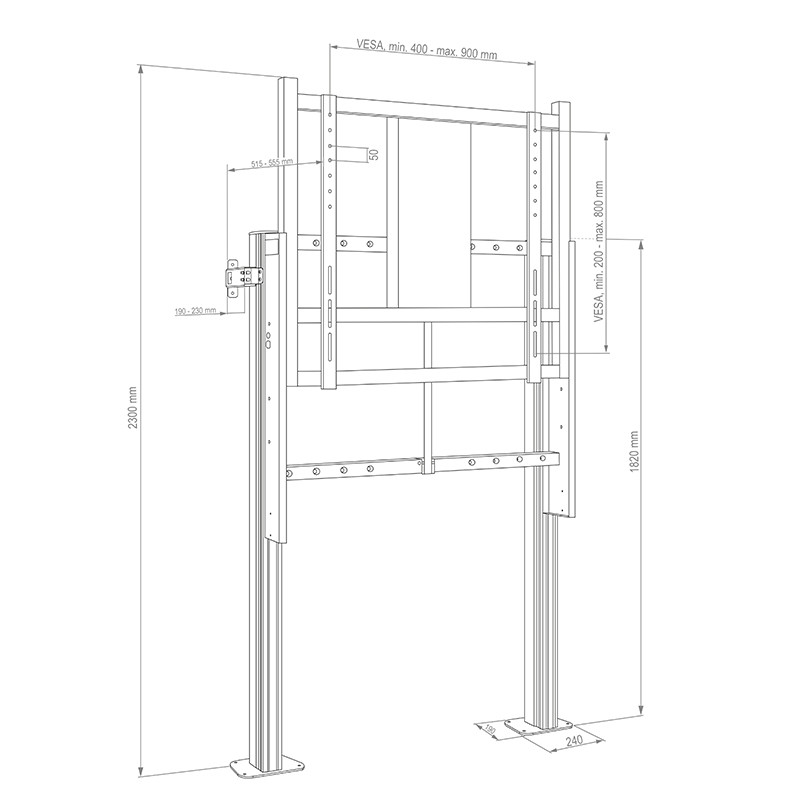

Technical data at a glance:

• Compatible display sizes: 86–110" (218–280 cm)
• VESA standard: min. 400 x 200 mm to max. 900 x 800 mm
• Mounting orientation: Landscape
• Mounting type: Floor-wall mounting (depth-adjustable)
• Height adjustment: Electric motor, stepless with 500 mm travel
• Operation: Wired button control, stowable on the side
• Load capacity: max. 160 kg

Efficiently mounted, flexible operation

The CPS Floor-to-Wall Moto system allows large-format screens to be installed close to the wall while offering maximum flexibility in height adjustment. The electric motor height adjustment with a travel range of 500 mm is infinitely variable via a wired button control that can be discreetly stowed away on the side of the system when not in use. This allows the display to be optimally adjusted to the respective height of use at any time – without effort and with maximum precision.

Compact solution for large formats

Floor-to-wall mounting not only offers high stability but also saves valuable space. The depth of the system can be adjusted during installation so that it can be flexibly adapted to the structural conditions. With a load capacity of up to 160 kg, the system is suitable for particularly large and heavy displays. The durable powder coating provides reliable protection against scratches and impacts – for long-lasting use in a wide range of professional environments.
