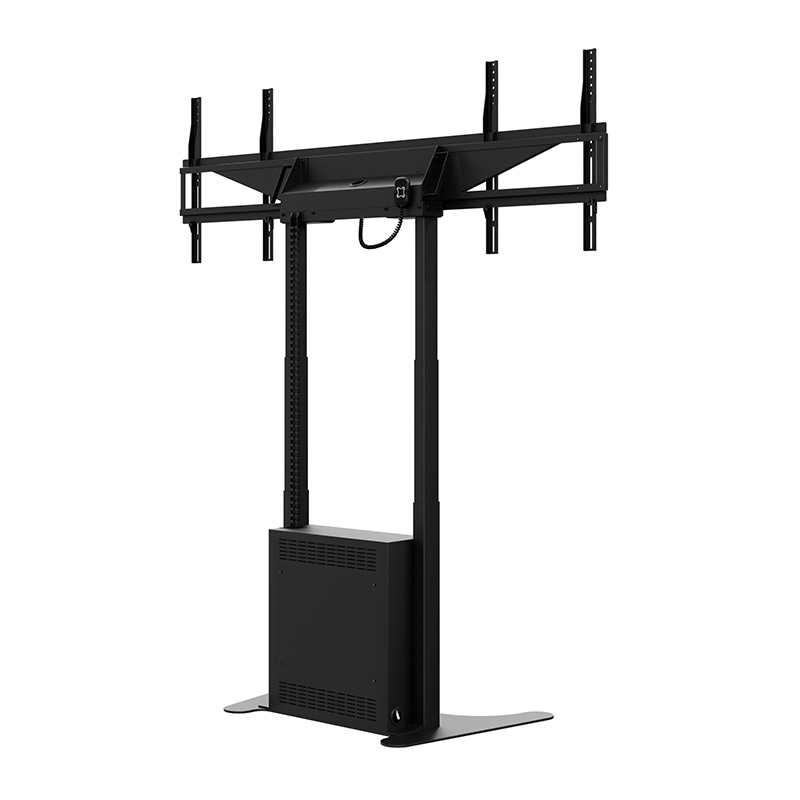

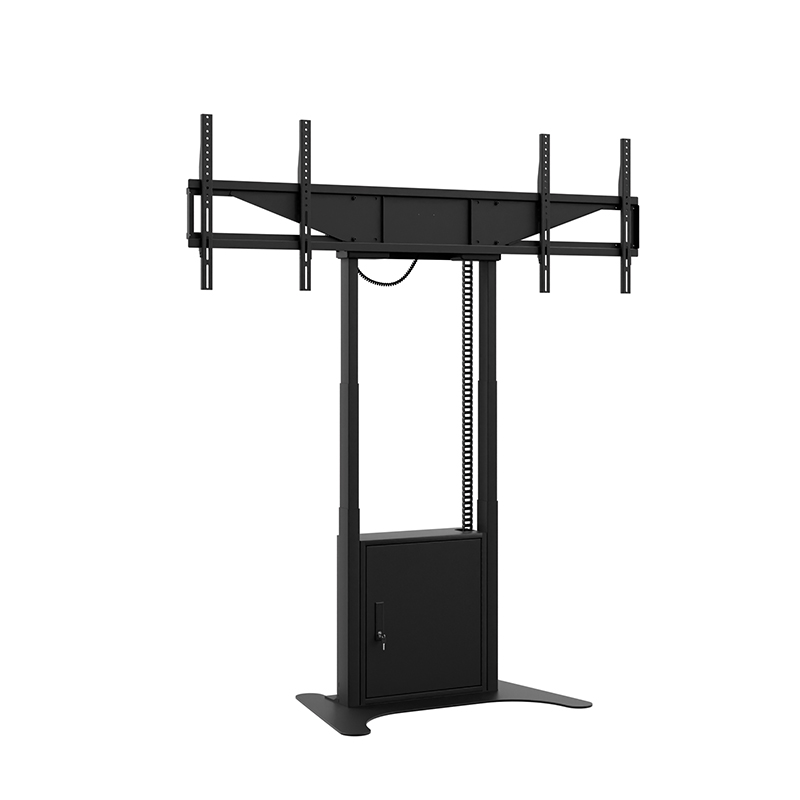

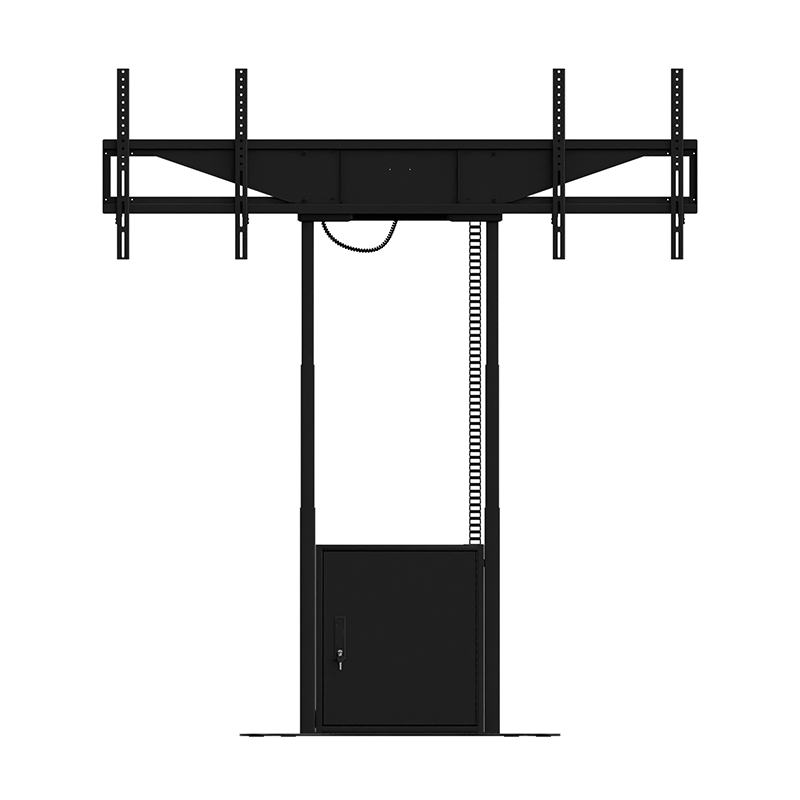

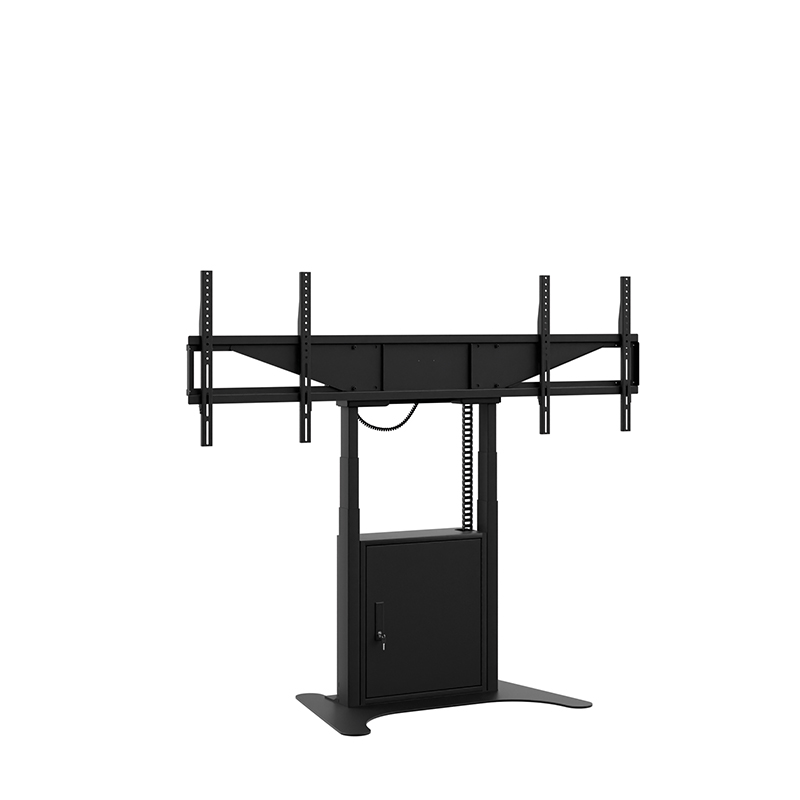

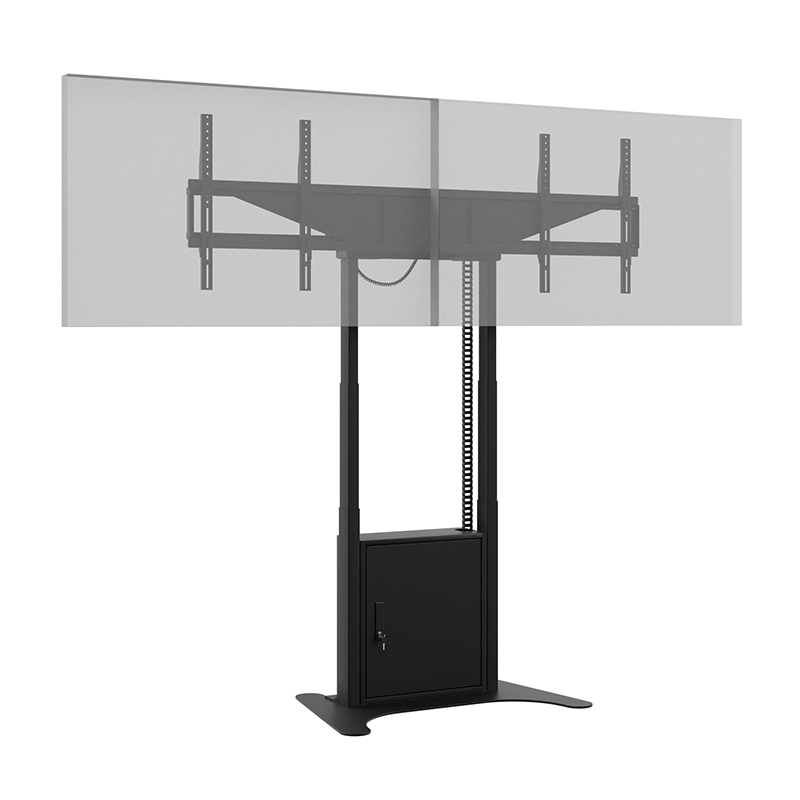

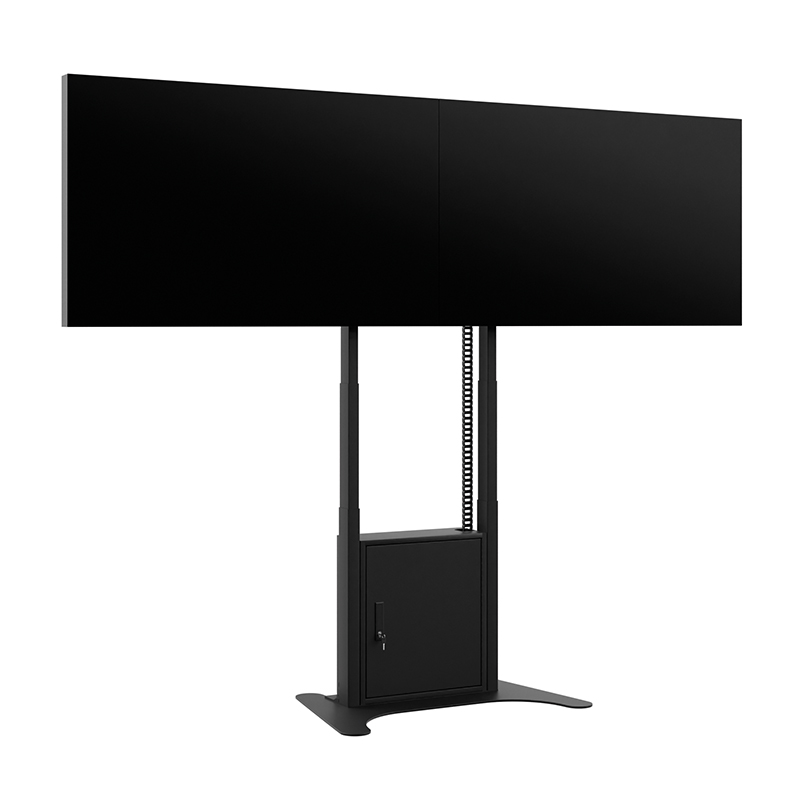

Hagor HP Twin Lift FS-DB Freestanding Lift System for two 46–65" screens side by side, electrically height-adjustable

Perfect presentations with the motorised lift system

With the Hagor HP Twin Lift FS-DB motorised lift system, you get a highly professional dual-display floor stand, specially developed for use in modern conference rooms and sophisticated control rooms. This freestanding monitor stand allows for the side-by-side installation of two large screens and, thanks to its infinitely adjustable design, ensures the perfect viewing angle from any position. Whether for interactive meetings or professional video conferencing, you can purchase this versatile system directly from us online and enhance the functionality of your premises. The combination of exceptional stability, flexibility and ergonomic working takes your AV infrastructure to a whole new level. If you have any questions about how best to integrate it into your project, we’ll be happy to assist you with our personalised product advice via email or telephone.

Technical specifications at a glance

• Compatibility & VESA: Suitable for two displays ranging from 46 to 65 inches (117–165 cm) with a maximum VESA standard of 600 x 400 mm (for 65-inch displays, max. 400 x 400 mm) in landscape orientation, ideal for extremely wide presentation areas.
• Supported sizes & load capacity: Offers a maximum total load capacity of 120 kg (2 x 60 kg), ensuring absolutely secure support even for heavy, large-format monitors.

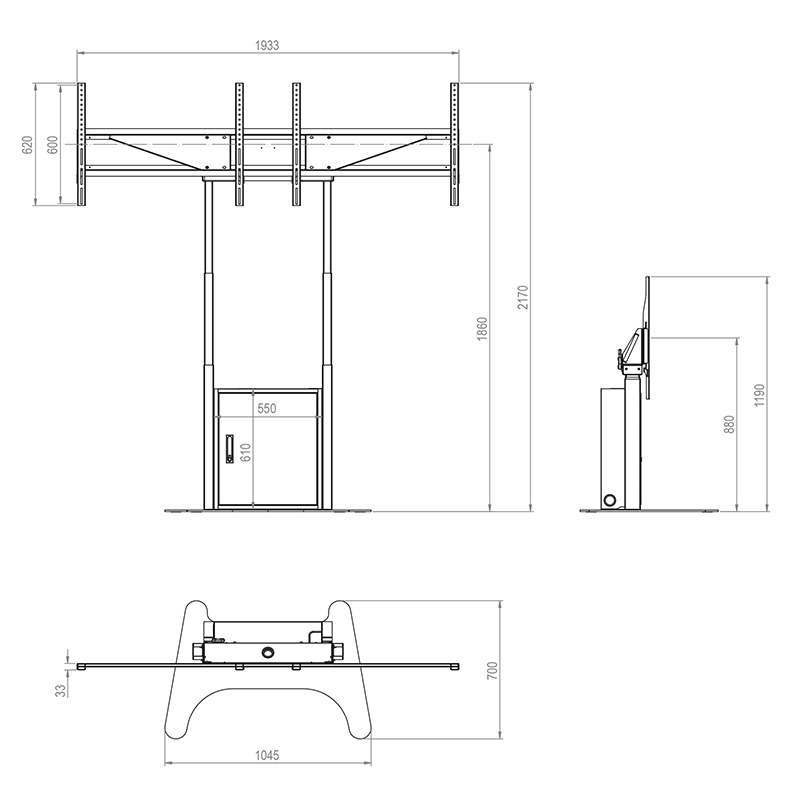

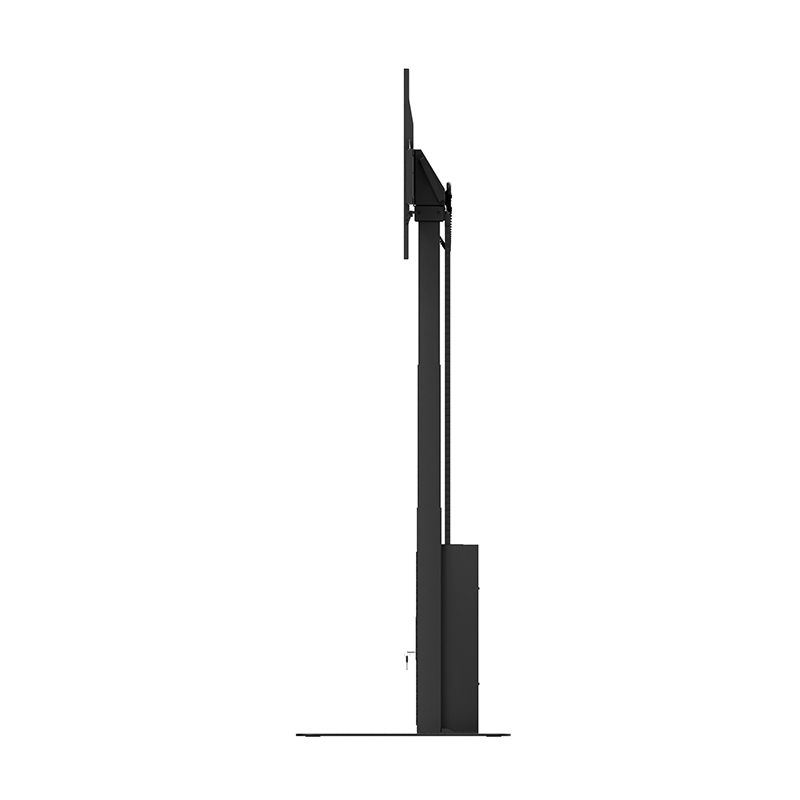

• Mounting type & dimensions: Free-standing floor stand with an asymmetrical, anti-tip base plate (footprint W 1045 x D 700 mm), which allows for space-saving positioning very close to a wall.
• Ergonomics & flexibility: Electrically height-adjustable with a travel range of 980 mm (screen centre from min. 880 mm to max. 1860 mm) and a speed of 30 mm/s, controlled via a wired push-button remote.
• Material & Design: Finished with a solvent-free, impact- and scratch-resistant powder coating in black, which blends discreetly and durably into any interior design.
• Additional features: Equipped with collision protection, a memory function, a height-adjustable camera mount, a lockable media cabinet and an IGUS energy chain for flawless cable management.

Stepless height adjustment and maximum safety

The Hagor HP Twin Lift FS-DB dual-display floor stand impresses with its powerful, electric motorised drive, which enables extremely precise adjustment of the displays. With an impressive travel range of 980 mm, the height can be flexibly adjusted for standing or seated users, significantly improving ergonomics during long meetings. A handy memory function saves your preferred screen heights, so you can recall them exactly at any time at the touch of a button on the wired control panel. Maximum safety in everyday working life is ensured by the integrated collision protection, which stops the lift’s movement immediately and reliably as soon as any resistance is encountered. This stability is complemented by the tilt-proof, asymmetrically shaped base plate, which guarantees installation close to the wall and thus an extremely space-saving setup in the room.

Smart technical integration and neat cable management

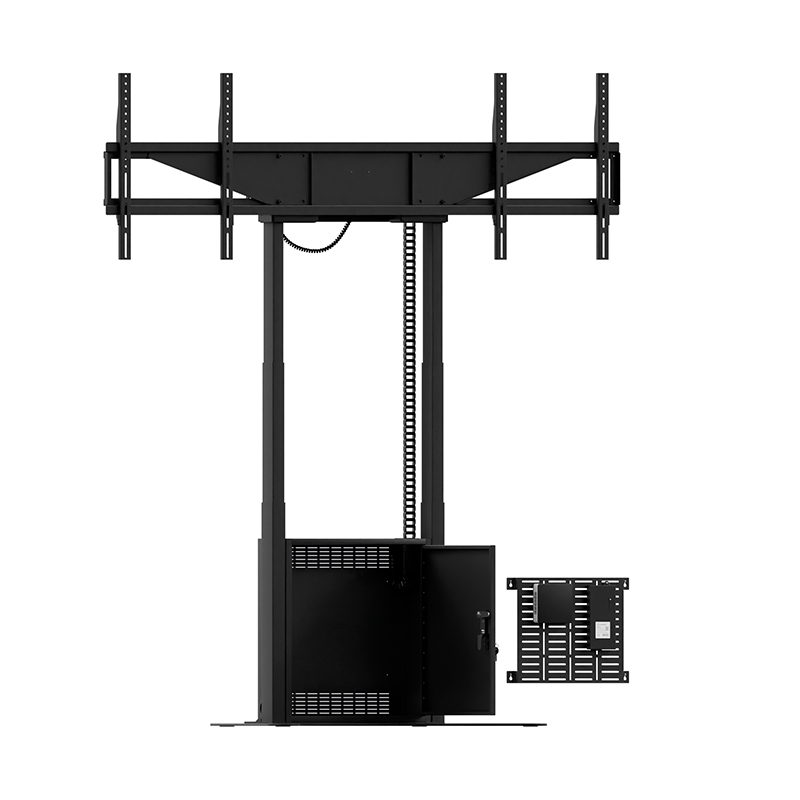

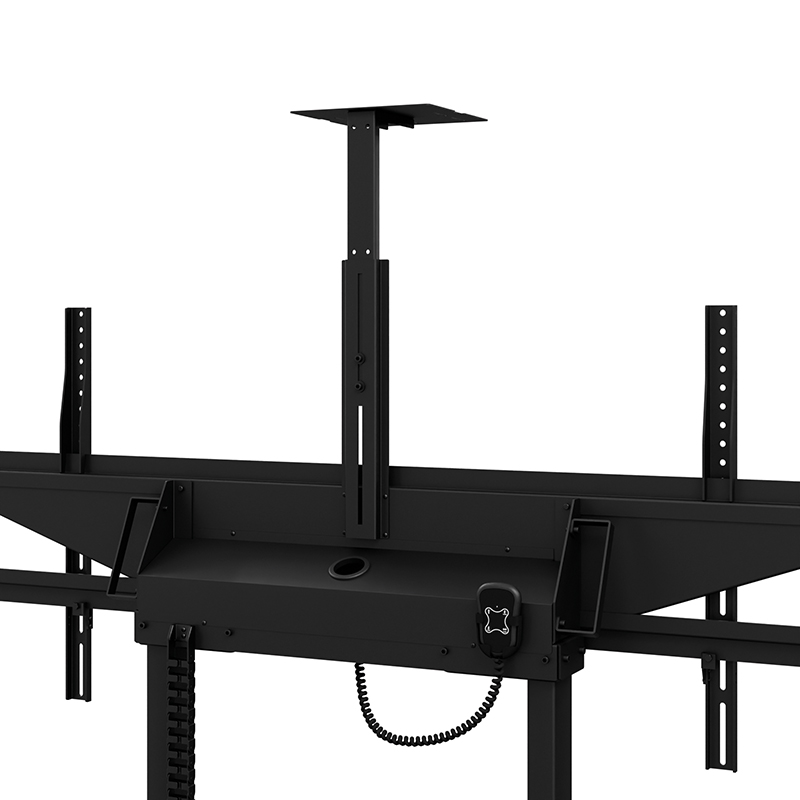

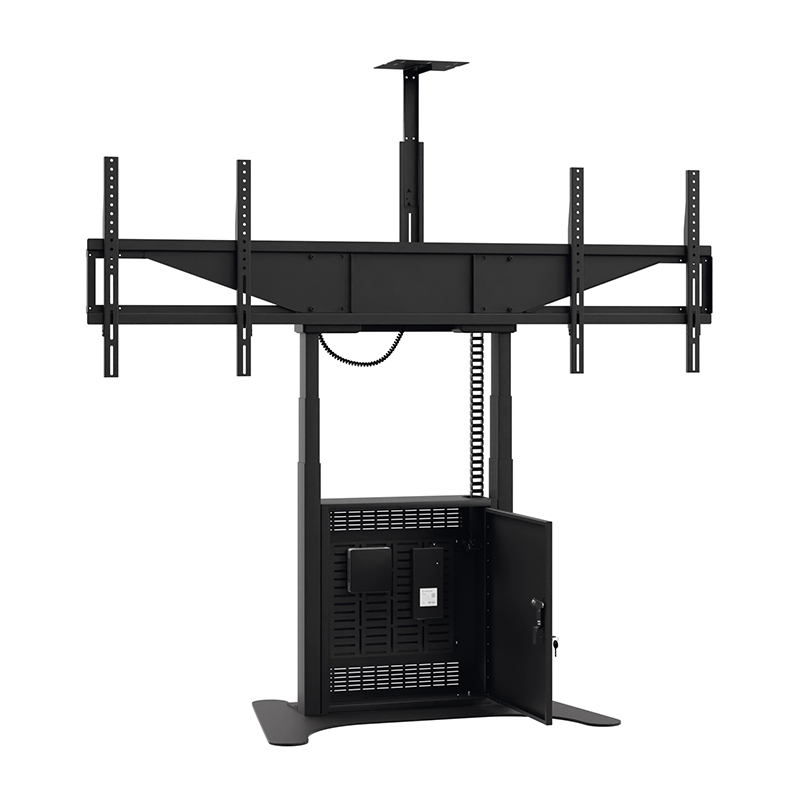

In addition to simply holding the screen, the Hagor HP Twin Lift FS-DB lift system offers well-thought-out solutions for the secure storage of your AV equipment. At the base of the stand is a spacious, lockable media cabinet that reliably protects hardware such as mini-PCs or control units from unauthorised access. A removable AV mounting plate inside this cabinet greatly simplifies both the initial installation and subsequent maintenance of the electronic components. To ensure the conference room always maintains a professional and tidy appearance, all cables are routed safely and out of sight via a flexible, self-aligning IGUS energy chain. As a height-adjustable camera mount is included in the box, the system can be used immediately as the perfect basis for professional video conferencing set-ups.

Summary and contact details

With the Hagor HP Twin Lift FS-DB motorised floor stand, you are opting for an extremely robust and functional solution for presenting two large-format displays side by side. The well-thought-out combination of electric height adjustment, secure storage for AV equipment and concealed cable management makes this system the first choice for professional conference environments. If you wish to boost the efficiency of your meetings and utilise state-of-the-art presentation technology, this system is the ideal investment for your business. We’re happy to assist you in planning your bespoke setup and are always on hand to offer personalised support via email or telephone.
