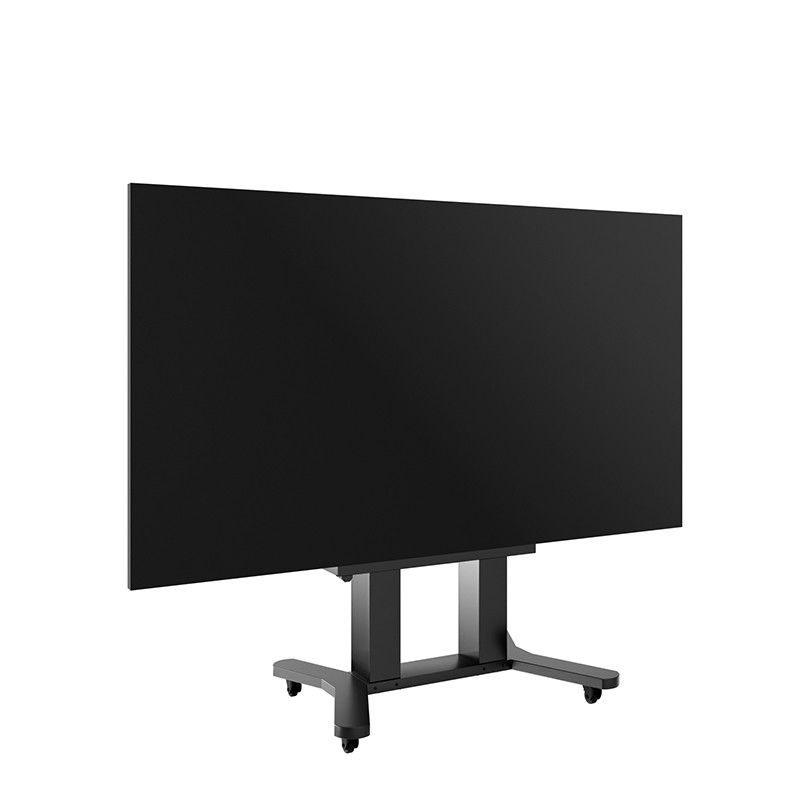

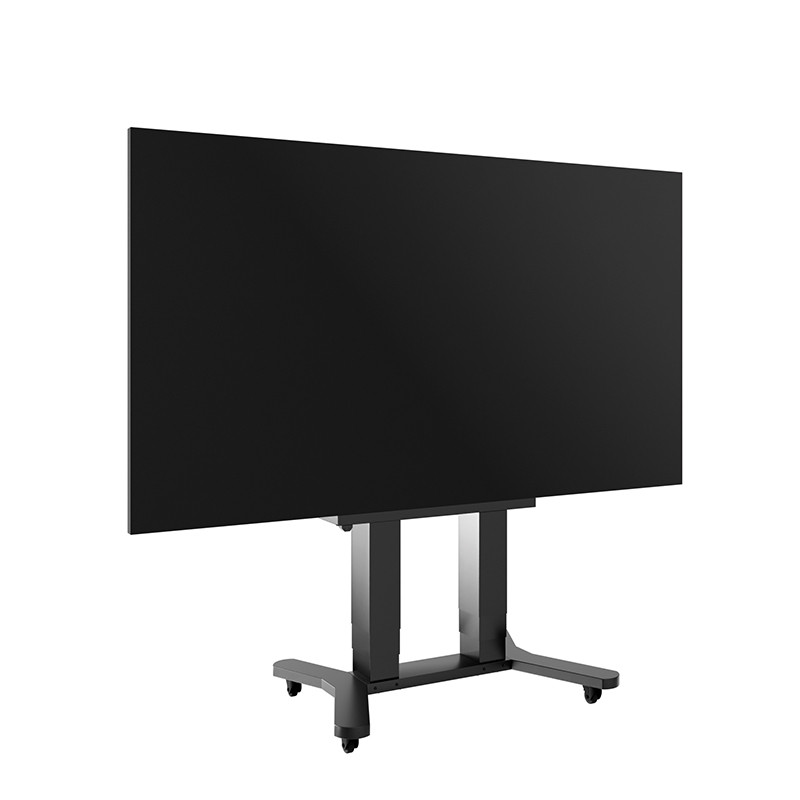

Hagor mobile lift system with electric motorised height adjustment for LG LAEC 136" GN2

LED-SMH LG LAEC 136″ GN2 – Mobile lift system for flexible LED presentations

The LED-SMH LG LAEC 136″ GN2 is a high-quality mobile lift system with electric height adjustment – specially developed for the LED display LG LAEC 136″ GN2. Thanks to its well-thought-out design, simple operation and stable construction, it is the ideal solution for changing locations where large LED displays need to be positioned flexibly, safely and ergonomically.

Technical data at a glance:

• Compatibility: LG LAEC 136" GN2
• Height adjustment: electric motor, 700 mm stroke
• Operation: push button for easy adjustment
• Assembly: display-specific adaptation, no fine adjustment necessary
• Wheel frame: V-design to reduce the risk of tripping
• Castors: swivel castors with brake
• Surface: Solvent-free , impact- and scratch-resistant powder coating
• Optional: Mounting brackets for side-mounted speakers (e.g. Fohhn)

Safe, mobile and precisely adjustable

The LED-SMH system has been specially designed for safe mobile use. The stable aluminium and steel construction with its V-shaped frame not only offers maximum stability but also reduces the risk of tripping – an important aspect for high-traffic areas. The swivel castors with parking brake allow both flexible mobility and a firm stand at the desired location.

The motorised height adjustment with a generous stroke of 700 mm can be conveniently regulated using a push-button switch and allows for an ergonomically optimal adjustment of the display height – without any additional assembly work. The precisely adapted bracket structure also eliminates the need for any fine adjustment, which saves time and makes handling easier. In addition, the system can be expanded with side speaker brackets on request – ideal for integrated AV solutions at the highest level.
