Hagor WH Synchron HD Portrait Heavy-Duty Wall Mount for a 65–98" screen in portrait orientation

Perfect presentation in portrait orientation: the Hagor WH Synchron HD Portrait

If you are looking for a reliable solution for large-format displays in professional environments, the Hagor WH Synchron HD Portrait heavy-duty wall mount is the ideal choice. This highly robust display wall mount has been specially developed for the secure and precise installation of large screens in portrait orientation, making it perfect for demanding digital signage applications. Thanks to its well-thought-out design, you benefit from an enormous load-bearing capacity and outstanding flexibility when it comes to optimally positioning your equipment. When you purchase this professional screen mount, you are investing in maximum stability and significant time savings during installation. We’d be happy to assist you with detailed product advice once you’ve finalised your selection.

Key technical specifications at a glance

• Compatibility & VESA: Supports VESA standards from a minimum of 300 x 300 mm to a maximum of 600 x 800 mm for highly flexible display mounting in portrait mode.
• Supported sizes & load capacity: Suitable for very large screens ranging from 65 to 98 inches (165–249 cm) and extremely robust with a maximum load capacity of 150 kg (heavy-duty).

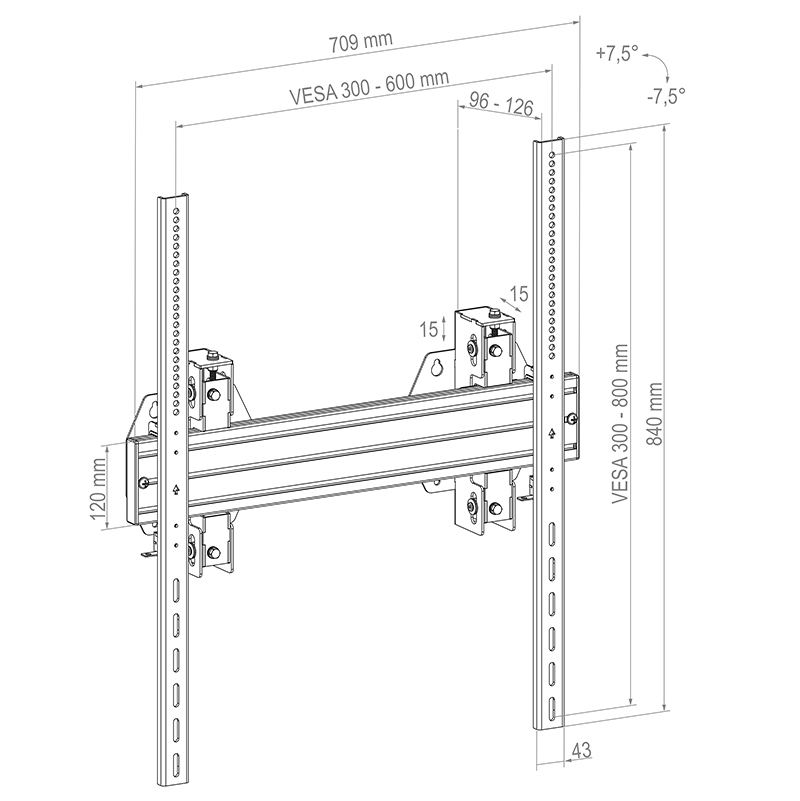

• Mounting type & dimensions: Designed for wall mounting with an adjustable wall offset ranging from 96 mm to 126 mm and compact overall dimensions (W 709 mm x H 840 mm excluding the screen).
• Ergonomics & flexibility: Precisely adjustable on the mounting side with a tilt of ± 7.5° and fine height and depth adjustments of ± 15 mm each for the perfect viewing angle.
• Material & Design: Equipped with an all-black, solvent-free, impact- and scratch-resistant powder coating for maximum durability in professional use.
• Additional features: Efficient cable management thanks to practical rear cable clips and particularly time-saving installation as the unit is delivered largely pre-assembled.

Millimetre-precise adjustment for optimal viewing angles

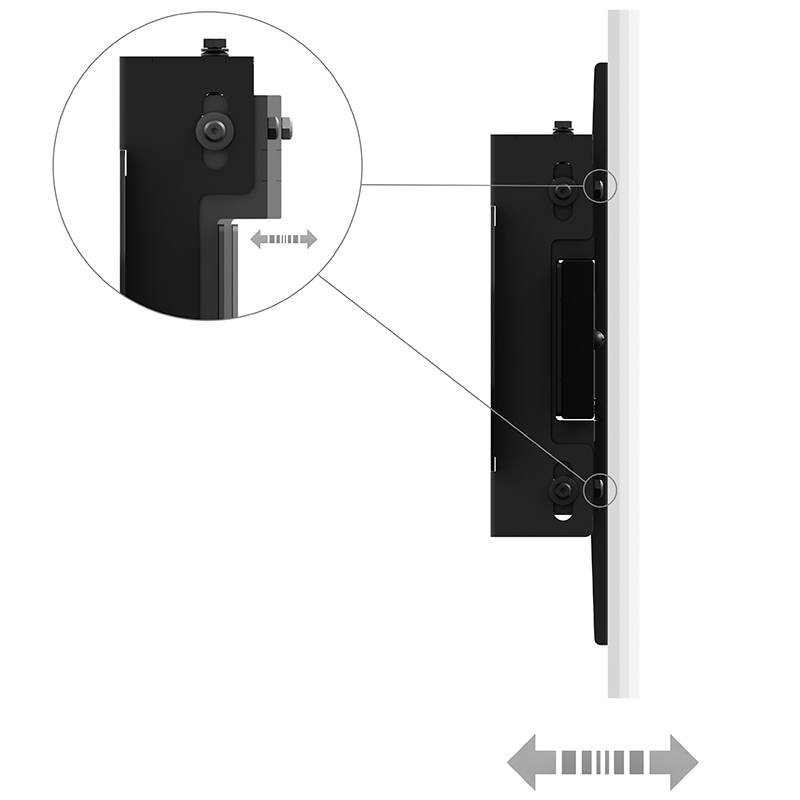

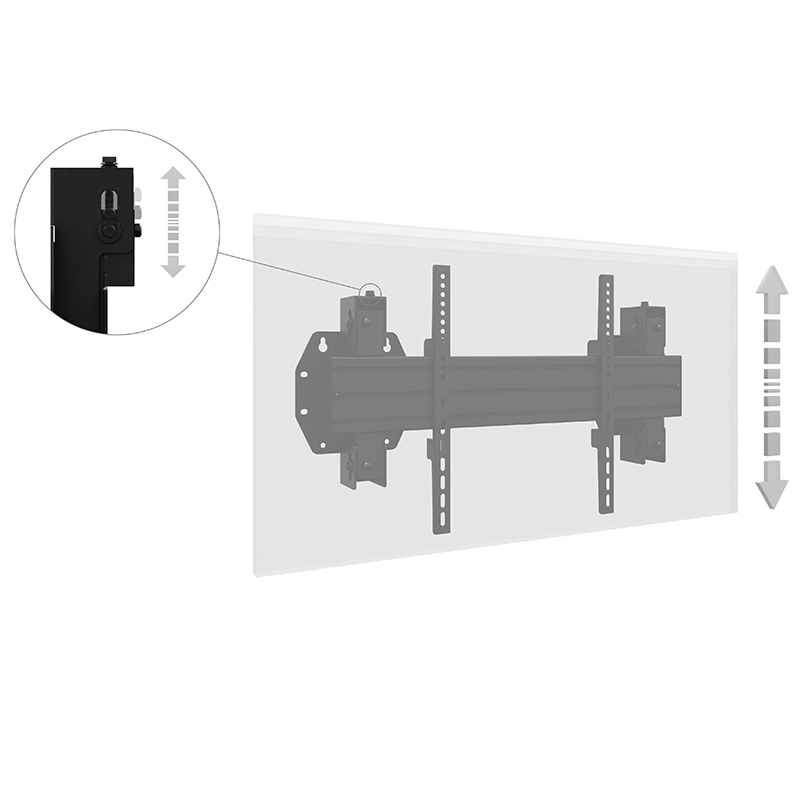

A standout feature of theHagor WH Synchron HD Portrait heavy-duty wall mount is its extremely precise fine-tuning, which allows you to align your display to the millimetre after installation. You can easily tilt this functional display wall mount by ± 7.5 degrees to minimise distracting light reflections and perfectly adjust the viewing angle for on-site viewers. In addition, the mount offers clever depth and height adjustment of ± 15 millimetres each. This flexibility ensures that you can position the screen precisely and flush with the wall, even on uneven walls or in complex spatial conditions. The adjustable wall clearance, ranging from 96 to 126 millimetres, gives you additional scope for a neat, professional and bespoke installation in any room.

Heavy-duty construction meets time-saving installation

In designing the Hagor WH Synchron HD Portrait monitor mount, the utmost importance was placed on uncompromising stability and ease of use in day-to-day work. With a massive load capacity of up to 150 kilograms, this mount effortlessly supports very large and heavy monitors with screen sizes ranging from 65 to 98 inches, securely and durably. To save you valuable working time, the system is supplied largely pre-assembled, which drastically reduces on-site installation time and guarantees rapid project completion. The cable clips integrated into the rear ensure efficient cable management, creating a neat and attractive appearance behind the display. The well-thought-out design is rounded off by a solvent-free, impact- and scratch-resistant powder coating, which gives the heavy-duty wall mount a particularly robust and scratch-resistant surface.

Summary and next steps

In summary, the Hagor WH Synchron HD Portrait heavy-duty wall mount offers an unrivalled combination of an enormous 150 kg load capacity, precise alignment and an extremely installation-friendly design. It is the ultimate solution for professional use where giant displays in portrait orientation need to be positioned absolutely securely, flush with the surface and with pinpoint accuracy. Take the next step towards a perfect and secure presentation solution for your business and contact us regarding your upcoming project. We are always on hand to offer personalised and expert consulting via email or telephone, and will actively support you in the bespoke planning of your display installation.
