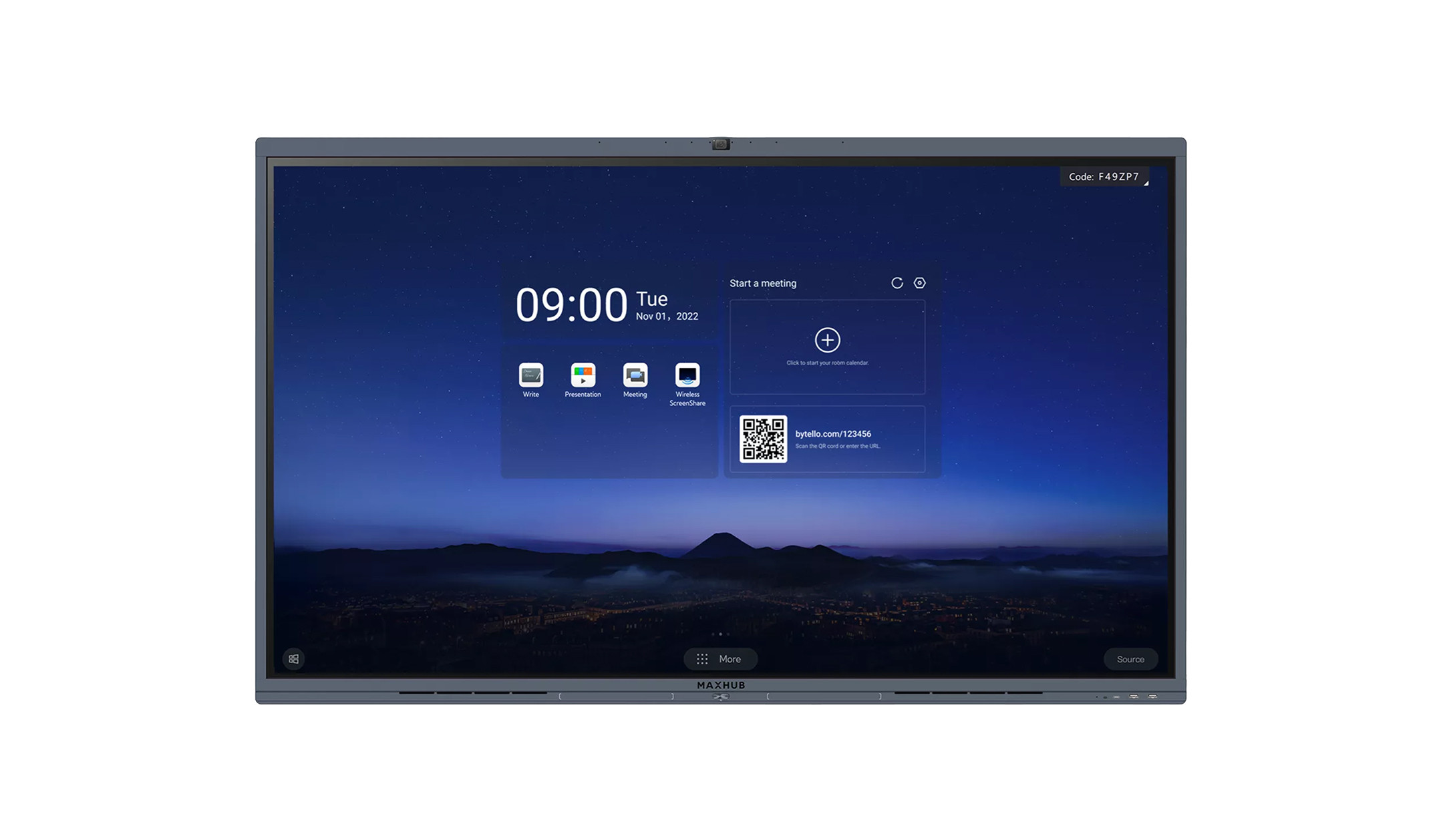

MAXHUB C5530 55" Touch Display

MAXHUB C5530 – The 55" touch display for productive meetings and modern collaboration

The MAXHUB C5530 is a 55" touch display from the V6 Classic series, combining professional video conferencing technology, 4K image quality and intuitive whiteboarding in a single device. As an all-in-one collaboration board, it is designed for businesses looking to equip their meeting rooms efficiently and with future-proof solutions – from huddle rooms to large conference rooms. With Zoom Rooms pre-installed, you’re ready to go straight away. If you’d like to purchase the MAXHUB C5530 and find the right solution for your premises, we’d be happy to provide you with personalised consulting via email or phone.

Your benefits at a glance

• Plug-and-play operation: camera, microphone, speakers and touch panel are fully integrated – just one cable is needed.
• 4K UHD display with 90% NTSC colour gamut and △E≤2 colour accuracy for razor-sharp, vivid images.
• 48 MP camera with 92° HFOV, auto-framing and speaker tracking for natural video conferencing.
• 20 simultaneous touch points and OCR technology for efficient, collaborative whiteboarding.
• Energy Star 8.0 certified with standby power consumption of ≤ 0.5 W – energy-efficient in continuous use.

Brilliant image quality and precise touch experience

The C5530 features an IPS panel with a resolution of 3840 × 2160 pixels (4K UHD), a brightness of 350 cd/m² and a contrast ratio of 1200:1. The 178°/178° viewing angle ensures that content remains clearly visible from any position in the room. The zero-parallax technology of the 3 mm anti-reflective, antibacterial glass minimises light refraction and ensures that text and graphics appear precisely and without offset. With a touch accuracy of ±1 mm and a minimum object detection size of 2 mm, the display responds reliably to fingers and passive styluses – ideal for annotations and collaborative document editing directly on the screen.

Video conferencing at the highest level

The integrated 48 MP camera with a Sony ½-inch sensor and 92° HFOV wide-angle lens captures even large groups in full view. WDR (Wide Dynamic Range) technology automatically compensates for difficult lighting conditions, ensuring participants are clearly visible even in front of bright windows or in poorly lit rooms. Auto-framing dynamically adjusts the frame to the number and position of participants – supporting up to 30 people at a working distance of 10 metres. Eight non-equidistant far-field microphones with beamforming technology reliably capture speech from up to 8 metres away, whilst integrated AI noise cancellation filters out background noise. The 2.1 stereo system with 2 × 10 W and a 20 W subwoofer delivers clear, room-filling voice quality.

Zoom Rooms, connectivity and smart collaboration

The MAXHUB C5530 comes with Zoom Rooms pre-installed and is available with either an Intel Core i5 (MT61Z) or Intel Core i7 (MT61X) PC module, each with 16 GB RAM and a 256 GB SSD running Windows 10 IoT. The removable PC module slot allows for easy upgrading without having to replace the entire display. The front-facing USB-C port enables users to connect their own laptops via a single-cable solution: image transmission, touch control and use of the display’s camera, microphone and speakers – all via a single cable. For wireless screen sharing, the device supports Miracast, AirPlay, Chromecast and MAXHUB Share, which enables simultaneous transmission from up to four devices in 4K. MAXHUB OS 6.0 offers a customisable home screen and allows users to join scheduled meetings with a single click. IT teams manage all devices centrally via the MAXHUB Pivot cloud platform, including remote firmware updates and remote control.

The MAXHUB C5530 – Your collaboration display for modern meeting rooms

The MAXHUB C5530 touch display combines all the elements modern collaboration requires: 4K image quality, professional video conferencing hardware, intuitive whiteboarding and seamless connectivity in one robust, Energy Star 8.0-certified device. It is the ideal solution for businesses looking to equip their meeting room with a powerful all-in-one collaboration board. Contact us by email or phone – we’ll help you plan and select the right configuration for your needs.
