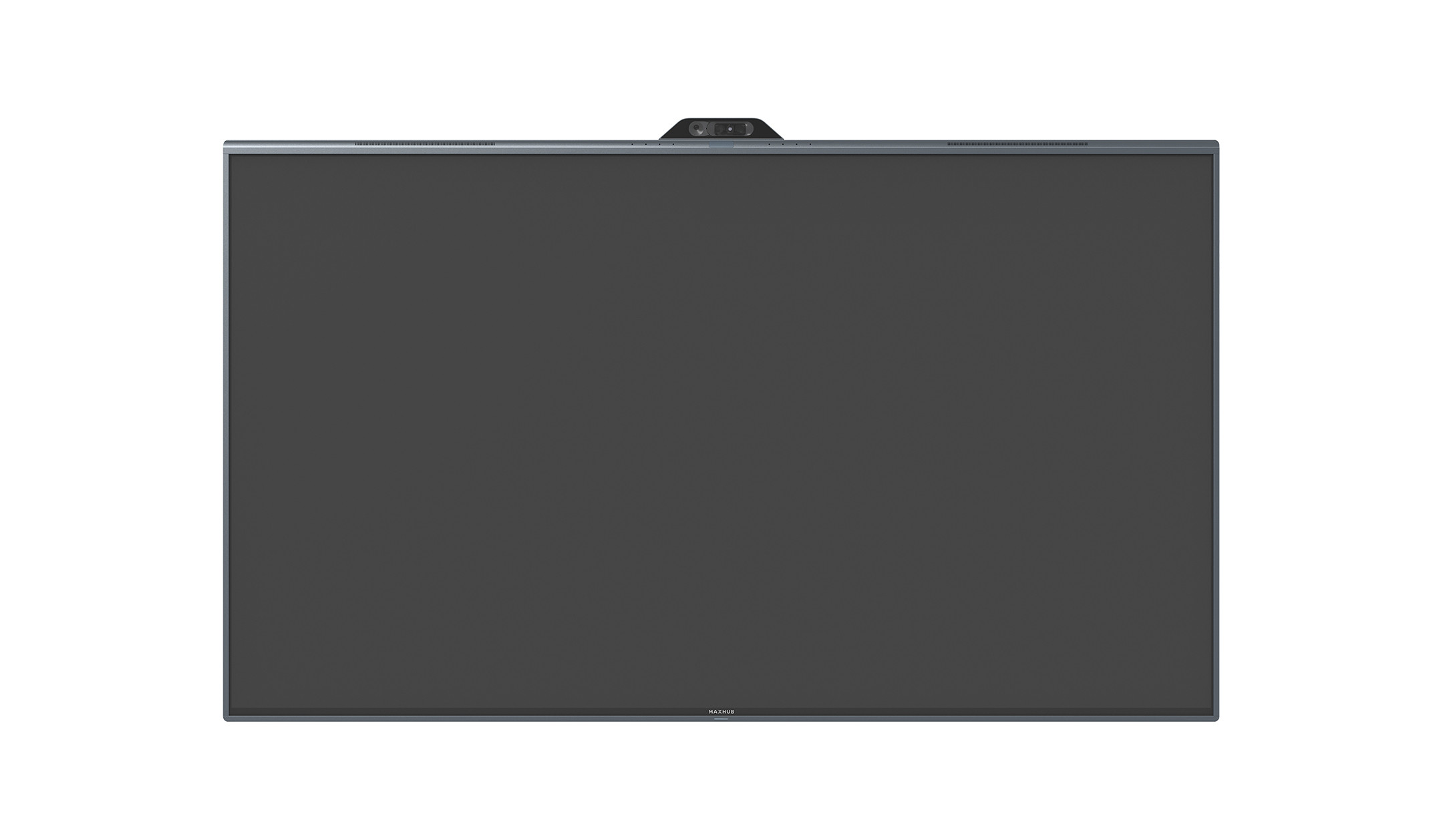

MAXHUB T6530 65" Touch Display

MAXHUB T6530 – The 65-inch premium touch display for professional collaboration

The MAXHUB T6530 is a 65-inch touch display from the V6 Transcend series and is aimed at businesses that demand the very best in video conferencing technology, interactive presentation and modern room design. As an all-in-one collaboration display, it combines a camera, microphone, speakers and touch panel in a single device – ready for use immediately after connection. Whether in a boardroom, VIP room or auditorium: the T6530 makes professional collaboration efficient and impressive. Would you like to purchase the MAXHUB T6530 or receive consulting beforehand? We’d be happy to help via email or telephone.

Your benefits at a glance

• All-in-one integration: camera, microphone, speakers and touchscreen in a single device – no additional peripherals required
• Dual camera (48 MP + 8 MP) with 3x optical zoom, auto-framing and speaker tracking for a natural meeting experience
• 8 beamforming microphones with a range of up to 8 metres ensure crystal-clear voice transmission throughout the room
• 4K resolution (3840×2160), 90% NTSC colour gamut and anti-glare antibacterial glass for brilliant image display
• ENERGY STAR certified with standby power consumption of less than 0.5 W – energy-efficient and sustainable

Precise touch display with 4K image quality for demanding environments

The T6530 features a VA panel with 4K resolution (3840×2160) at 60 Hz, a contrast ratio of 5000:1 and a brightness of 350 cd/m². The 90% NTSC colour gamut and colour accuracy of ΔE ≤ 2 ensure realistic, detailed displays – ideal for presentations with high-quality visual content. The anti-glare, tempered and antibacterial glass with zero parallax enables precise writing and drawing directly on the screen. The P-CAP touch system supports up to 20 simultaneous touch points with an accuracy of ±1.5 mm and is compatible with Windows, Android, macOS, Linux and Chrome OS.

Top-tier video conferencing – camera, audio and AI in one system

The flip-up dual camera with 48 MP and 8 MP sensors and 3x optical zoom delivers razor-sharp images. Auto-framing automatically adjusts the frame to the number and position of participants. Speaker tracking aligns the camera with the active speaker in real time. WDR (Wide Dynamic Range) technology compensates for difficult lighting conditions and maintains image clarity even in backlit situations. The camera’s flip function actively protects privacy: it opens when switched on and closes automatically when not in use. Eight beamforming far-field microphones with 180° coverage and a range of up to 8 metres, combined with AI noise cancellation, echo reduction and automatic gain control (AGC), ensure that every voice in the room is transmitted clearly and intelligibly. The 2.2-channel speaker system (2 × 10 W + 2 × 15 W) with overhead subwoofers ensures even sound distribution throughout the room.

Secure connectivity, easy management and sustainable operation

The T6530 supports screen sharing with up to 9 devices simultaneously – whilst maintaining 4K resolution and minimal latency. A laptop can be connected directly to the display via USB Type-C and immediately access the T6530’s camera, microphone and speakers (BYOD). Screen sharing is possible via various methods, including reverse touch control from the display to the connected device. Data communication is secured by AES 128-bit and SM4 encryption. IT teams manage all MAXHUB devices centrally via the cloud using the pre-installed MAXHUB Pivot app – including firmware updates, app installation and remote screen control. The device is designed for 16/7 operation, is ENERGY STAR certified and consumes less than 0.5 W in standby mode.

The ideal collaboration display for professional meeting rooms

The MAXHUB T6530 combines a 4K touch display, video conferencing technology and intelligent audio technology in a single, ready-to-use solution. It is the right choice for businesses looking to take their collaboration to the next level – without compromising on image quality, data protection or user-friendliness. Contact us by email or phone – we’ll support you from planning right through to commissioning.
