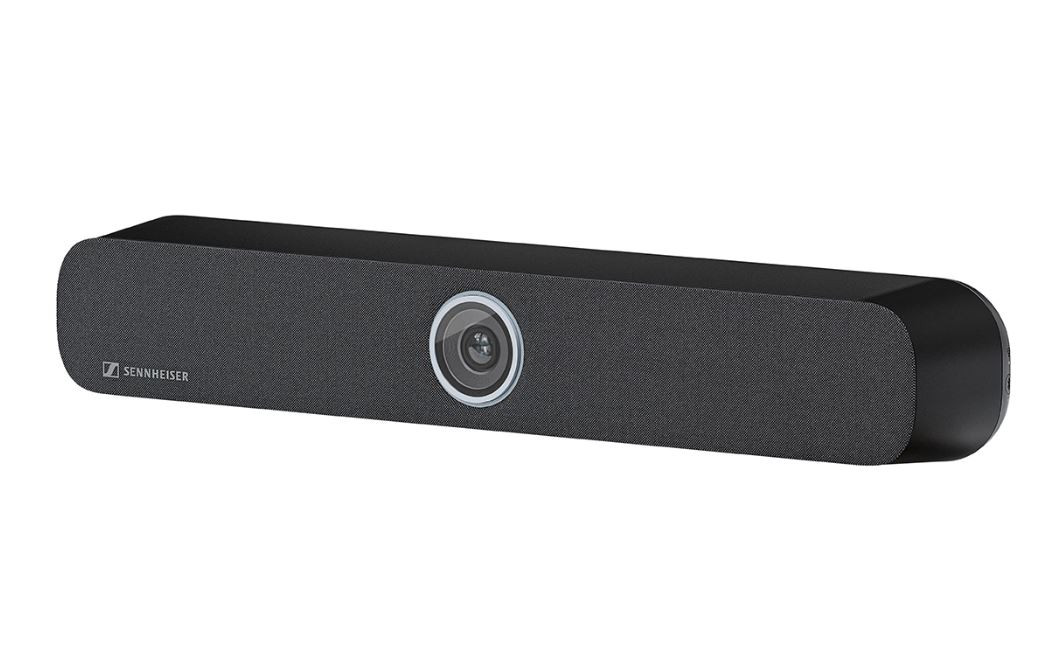

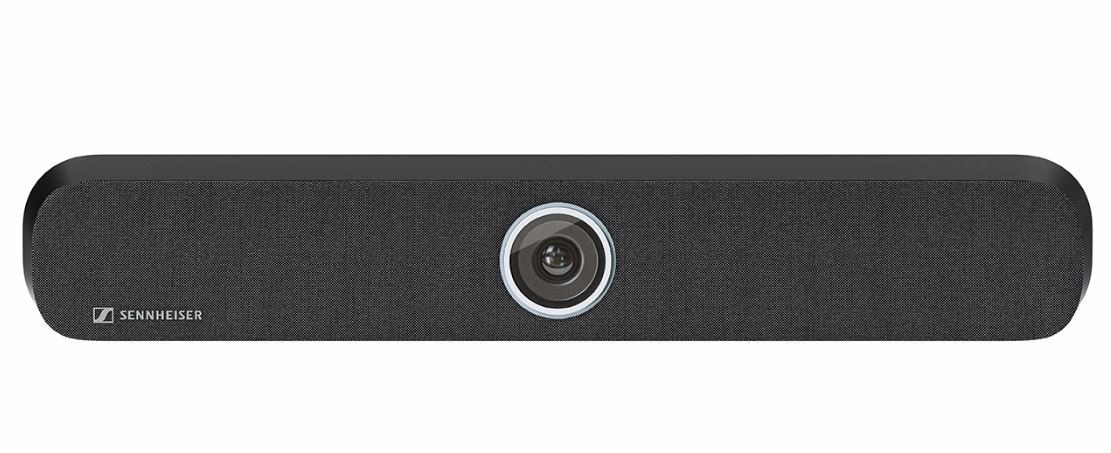

Sennheiser Teamconnect Bar S Video conferencing system, 3840 x 2160 4K UHD, 30 fps, 120°

The TeamConnect Bar S is the most flexible all-in-one device for small meeting and collaboration rooms. The TC Bar S is equipped with 4 microphones and 2 speakers and delivers Sennheiser’s proven audio quality for every meeting. The TC Bar S is a true problem-solver, offering benefits such as simple setup, brand-independent integration, easy management and hassle-free control, as well as high standards in terms of video quality, security and sustainability. The TC Bar is arguably the most connectable bar on the market and, with two DANTE inputs and four DANTE outputs, can provide hearing support in conjunction with Sennheiser’s “MobileConnect”, VoiceLift and many other applications.

Furthermore, the range of the microphone system can be extended using optional Sennheiser ceiling microphones. A total of two additional external audio sources can be integrated.

High video quality

Flexibility and scalability Management and control Technology is at its best when it fades into the background and you almost forget it’s there. In meetings, this means that both audio and video transmission must be flawless. The TeamConnect Bar Solutions offer some of the latest advances in meeting technology to further enhance modern hybrid meetings and presentations – taking the video component to the next level. The 4K Ultra HD camera is complemented by AI features such as ‘Autoframing’ and ‘Person Tiling’, ensuring that all remote participants can see every person in the room clearly and feel more engaged in meetings.

Flexibility and scalability

TeamConnect Bar Solutions offer you unparalleled freedom and flexibility. Choose the right TeamConnect Bar for your room size – TeamConnect Bar S for smaller rooms and TeamConnect Bar M for medium-sized rooms. With integrated DSP and single-cable mode available, you can reduce cabling and complexity. Integrated features such as the tilt mechanism, cable management, available PoE and the option to add additional microphones and/or a second external USB camera via Dante make the device even more flexible and scalable.

Management and control

The TeamConnect Bar solutions are ideal for a wide range of rooms and offer a variety of management and control options. With the Sennheiser Control Cockpit, you can use presets to apply pre-configured settings depending on the installation position. Exclusion Zones are designed to suppress unwanted noise, whilst the Priority Zone can highlight a speaker or a podium area. And thanks to our open and independent ecosystem philosophy, the TC Bars are also compatible with many leading media control systems and platforms from our partners*.

experience the following highlights:

• Plug-and-play device: Quick startvia USB cable
• Integrated beamforming technology: Fullfreedom of movement and seamless transition between speakers
• Flexible extensions: Useof Dante for additional microphones and/or a second external USB camera
• Maximum connectivity: twoDANTE inputs and four DANTE outputs (external Dante speakers can be connected by the user)
• High video quality: 4KUltra HD camera with advanced AI features
• Full-range stereo speakers: Naturalspeech and excellent intelligibility
• Integrated DSP:Automaticallyoptimisesroom acoustics
• Multiple installation options: wall-mounted, VESA-mounted, tabletop or freestanding
• Auto-framing and Person Tiling: Featuresfor a clear view of all the people in the room
• Control management: Fullremote control access via the Sennheiser Control Cockpit
• Brand-agnostic integration: Certificationspending for third-party media control systems (Barco, Crestron, Extron, Q-Sys) and platforms (Microsoft Teams, Zoom, Tencent, etc.)
• Advanced security features: Encryptedcontrol communication and password protection as standard for secure content transmission.

General:

• Dimensions: 450 x 71 x 76 mm (L x W x H)
• Weight: 1.5 kg
• Max. power consumption: 30 W

• Standby mode (all ports disabled): ≤ 0.50 W

Speakers:

• Total number of speakers: 2 with passive radiators (additional external Dante speakers can be connected!)
• Type: Full-range
• Amplifier: Class D
• Audio frequency response: 100 Hz – 18 kHz
• Max. SPL (output): 80 dB SPL
• Total audio power (RMS/PEAK): 10 W / 20 W



Microphones:

• Transducer principle: MEMS
• Number of capsules: 4
• Pickup range: 3.5 metres
• Directional characteristic: Beamforming array
• Frequency range: 100 Hz to 14.5 kHz
• Dynamic range: 69 dB (A)

camera:

• Technology: ePTZ
• Diagonal field of view: 120°
• Horizontal field of view: 115°
• Zoom: 3x digital zoom
• Resolution: UHD 2160p (4K), 1080p, 720p, 960×480, 848×480, 640×480, 640×360, 432×240

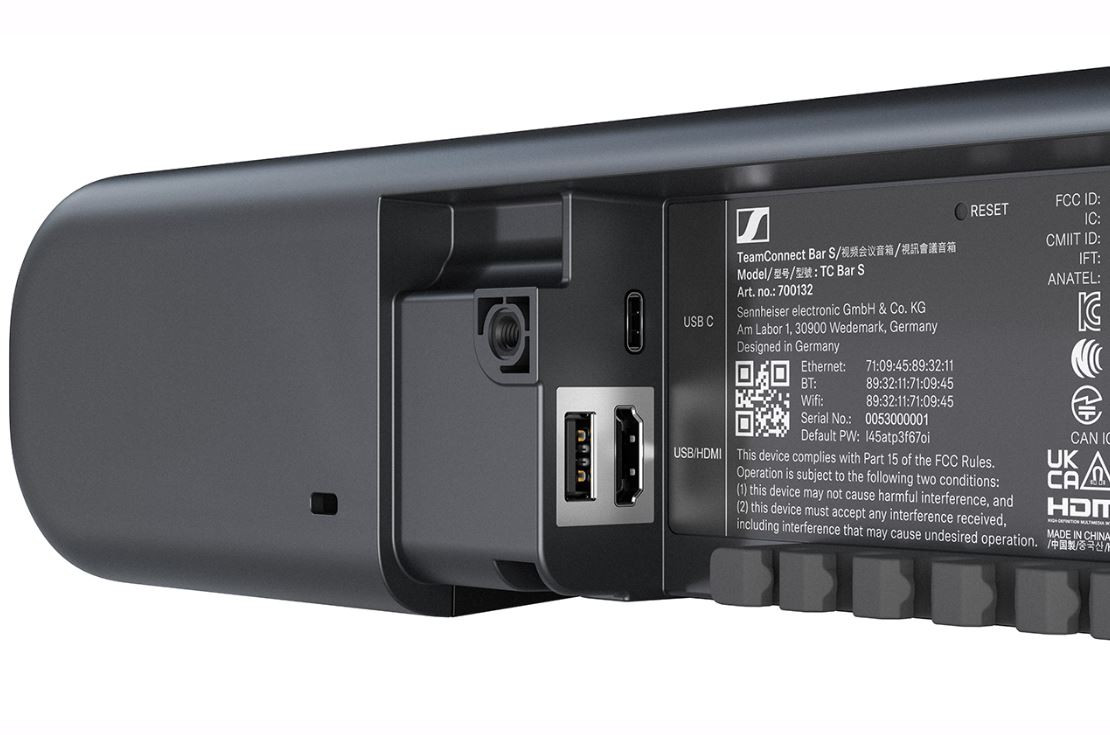

Interfaces:

• HDMI output: 2x HDMI 2.0
• USB-A power output: USB 3.1 (Gen 1); 5 V ⎓, max. 900 mA
• USB-C: USB 3.1 (Gen 1)
• Ethernet: 2 x 1000/100/10 Mbit/s (RJ45)
• Note: Useonly network cables that comply with the CAT5e (F/STP) standard or higher.
• Sennheiser DeviceHub (Live Management Solution: Control & Remote Management)

in the box:

• TC Bar S
• Mounting bracket + drilling template
• Power supply (S050-1A150300M2)

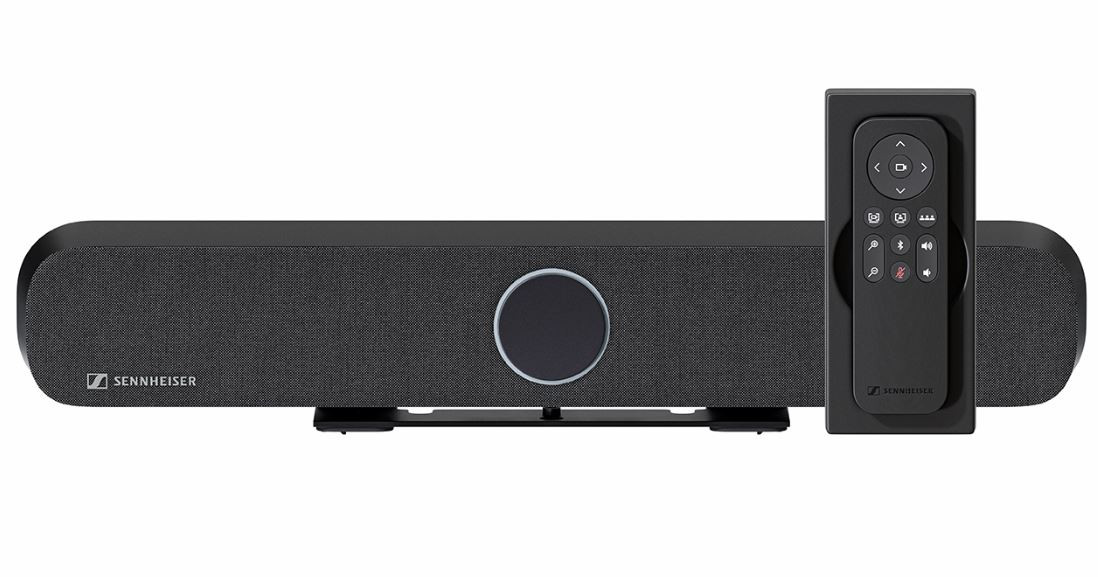

• TC Bar remote control
• Mount and storage
• Magnetic lens cap
• HDMI cable
• USB-C/USB-A cable
• Screws
• 2 x AAA 1.5 V batteries
• Manual
