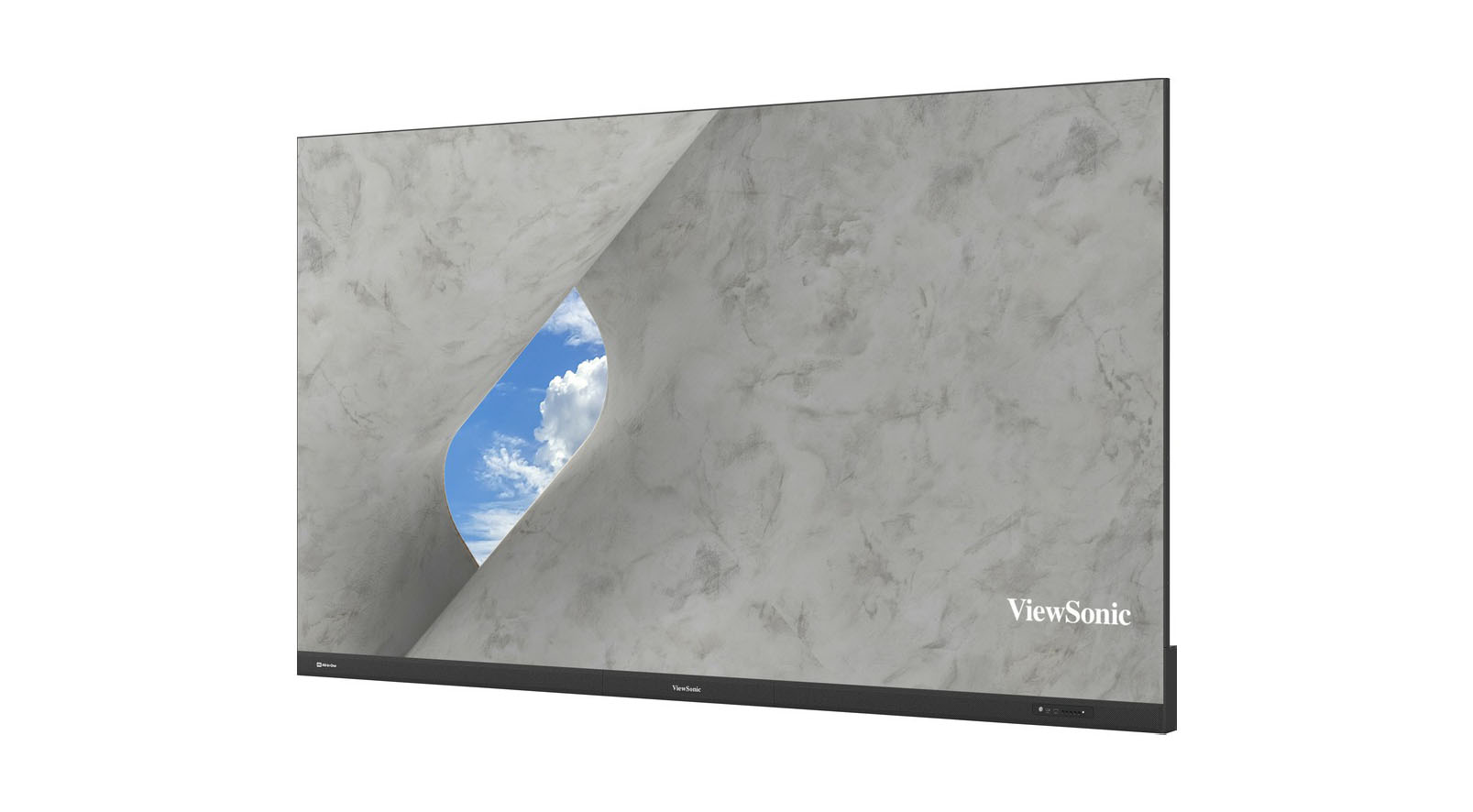

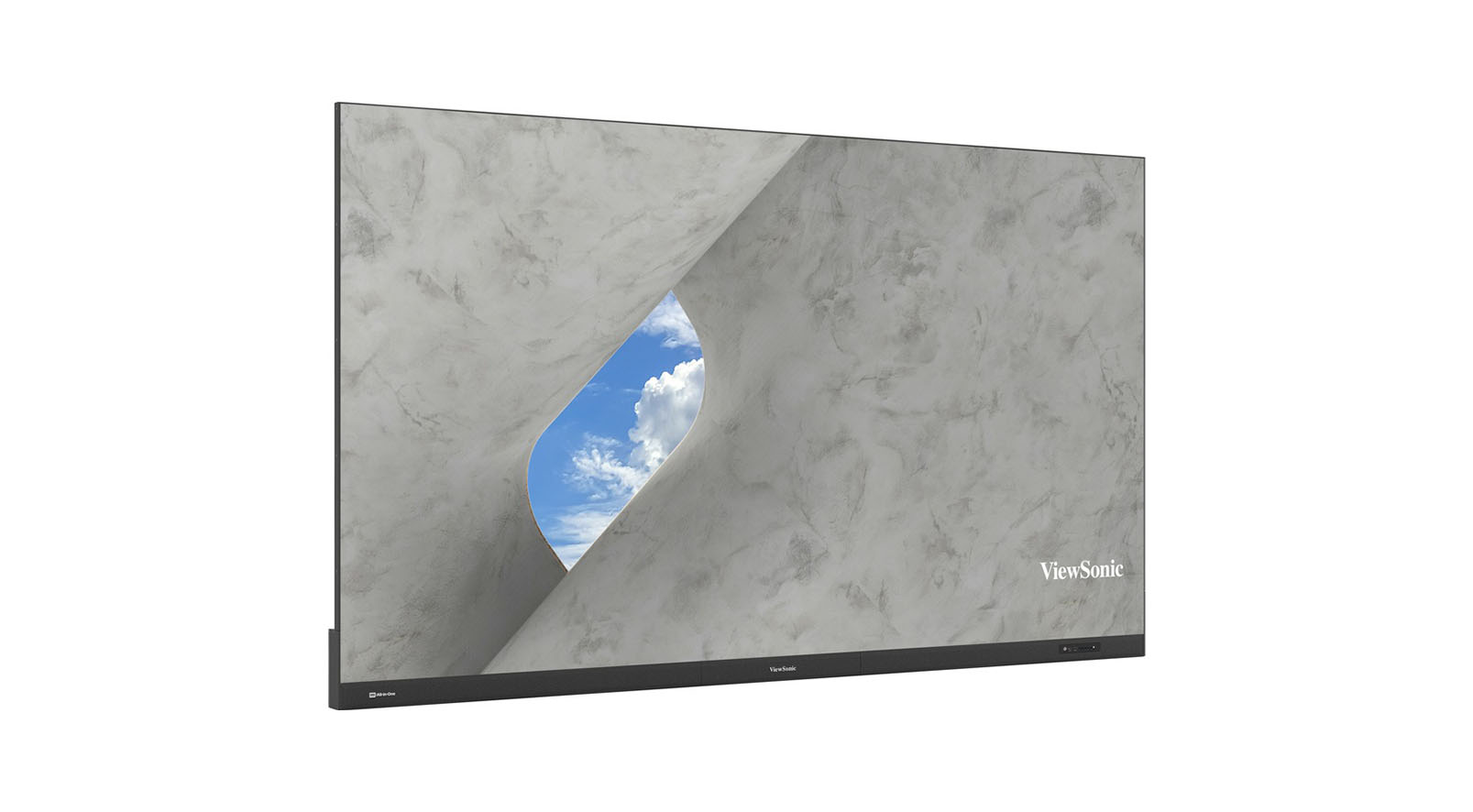

ViewSonic LDM163G-183 163” All-in-One Direct View LED Display | Pixel Pitch 1.88 mm

ViewSonic LDM163G-183: The all-in-one direct-view LED display solution for impressive presentations

If you are looking for an impressive large-screen solution for large conference rooms, lecture theatres or public areas – one that requires no complicated setup and is extremely robust – the ViewSonic LDM163G-183 all-in-one Direct View LED display offers the perfect solution. Many IT managers and facility managers face the challenge that conventional video walls are labour-intensive to maintain, have unsightly gaps between screens or are prone to damage from public traffic. The ViewSonic LDM163G-183 solves these problems with its seamless 163-inch display surface, a well-thought-out all-in-one design and a robust build. Invest in future-proof media technology that enhances the look of your premises and showcases your content to perfection.

The benefits at a glance

• All-in-one direct-view LED display with a 163-inch screen: Offers a huge, completely seamless display surface without distracting frame breaks for a captivating viewing experience.
• GOB surface treatment with IP54 and IK06: Effectively protects the LED modules against impacts, dust and moisture, making it ideal for high-traffic environments.
• Intelligent power supply redundancy: Automatically switches to neighbouring power supplies in the event of a module failure, preventing unwanted image loss.
• Secure OS-free design: Does not require an integrated operating system, which minimises cyber security risks and eliminates the need for regular software updates.

Maximum durability and operational reliability in any environment

In high-traffic areas such as foyers, reception halls or conference zones, media technology is often exposed to mechanical stress, dust or moisture. Thanks to the innovative Glue-on-Board (GOB) surface treatment, the LED modules are sealed with a transparent epoxy resin. This construction gives the front panel IP54 and IK06 certification, ensuring the display can easily withstand impacts and is protected against dirt. This safety concept is complemented by an intelligent power redundancy system. If the power supply to a single cabinet fails, the adjacent module automatically takes over the power supply. This ensures the image remains stable at all times, which is essential particularly during presentations that influence purchasing decisions or important corporate events.

Effortless installation and a maintenance-friendly all-in-one design

Installing traditional LED video walls usually takes a great deal of time, as control units, power supplies and image processors must be wired and calibrated separately. The all-in-one design of the ViewSonic LDM163G-183 integrates power supply, control and image processing directly into the system. With a slim depth of just 34.4 mm, the display blends elegantly into modern interior designs. Should a component require maintenance whilst the system is running, the modular design allows for rapid replacement directly from the front. Using an electric vacuum suction tool, the hot-swappable LED modules can be replaced in just a few simple steps whilst the system is running, without the need for in-depth IT knowledge.

Impressive visual performance and integrated surround sound

With a diagonal measurement of 163 inches, this display replaces a video wall comprising nine individual 55-inch screens, but without any bezels or dividing lines. Thanks to a brightness of 600 nits and a contrast ratio of 6,500:1, text, graphics and videos remain razor-sharp and clearly legible even in brightly lit meeting rooms. A high refresh rate of 3,840 Hz also ensures flicker-free and smooth playback during video conferencing or live broadcasts. Two powerful 18-watt speakers are integrated directly into the housing to provide the appropriate background sound. They provide sufficient sound coverage for medium to large rooms, meaning that in many scenarios there is no need to install an external sound system.

Why the ViewSonic LDM163G-183 is the ideal choice for your conference and teaching rooms

The ViewSonic LDM163G-183 all-in-one Direct View LED Display combines impressive, seamless image display with extremely low maintenance requirements and high physical robustness. Thanks to its OS-Free design, the system integrates seamlessly into your existing IT infrastructure without creating new security vulnerabilities or requiring ongoing software maintenance. If you are looking for a durable and visually stunning large-screen solution for your premises, we would be delighted to support you from the initial concept right through to a fully operational implementation. Our certified experts will provide you with personalised support via email or telephone to help you select the right media technology. Get in touch with us today and design your Smart Space!
