Catchbox Plus Hub DSP Receiver 2 channels with Networking and Dante (incl power supply)

Catchbox Plus system for first-class audio experiences

For your professional conference rooms and lecture theatres, choose an audio solution that combines crystal-clear sound with the simplest possible operation. Smooth presentations are often hampered by complicated technology or poor speech intelligibility for remote participants. The Catchbox Plus System addresses precisely these challenges through fully integrated audio signal processing. Offer your speakers and audience a reliable platform that is ready to use straight away and eliminates the need for external hardware. Experience communication without technical hurdles.

The benefits of the Catchbox Plus system at a glance:

• Catchbox Hub DSP: Save space and effort with the integrated 12-channel automixer for automatic mixing of all microphones.
• Dante Audio: Effortlessly integrate up to ten external audio inputs into your existing digital setup.
• Feedback Suppression: Enjoy clear in-room sound reinforcement without disruptive feedback thanks to improved algorithms.
• Wireless microphone system: Enable your presenters to get started straight away with pre-configured microphones and dedicated charging stations.

Crystal-clear sound for presentations and video conferencing

Experience audio quality that significantly enhances your hybrid meetings. The updated Catchbox Hub DSP serves as a powerful control centre. It combines a 4-channel receiver directly with an intelligent DSP system. This combination ensures that up to four microphones and external audio sources are perfectly synchronised. Integrated AutoLevel dynamic processing automatically adjusts the volume for video conferencing. At the same time, the system suppresses disruptive feedback via the room’s speakers. Are you planning an important board meeting with remote participants? Remote listeners will understand every word at a consistent volume, whilst those in the room will hear the speaker crystal-clear through the speakers. This ensures that every voice is always transmitted professionally and without interference.

Seamless integration into any room environment

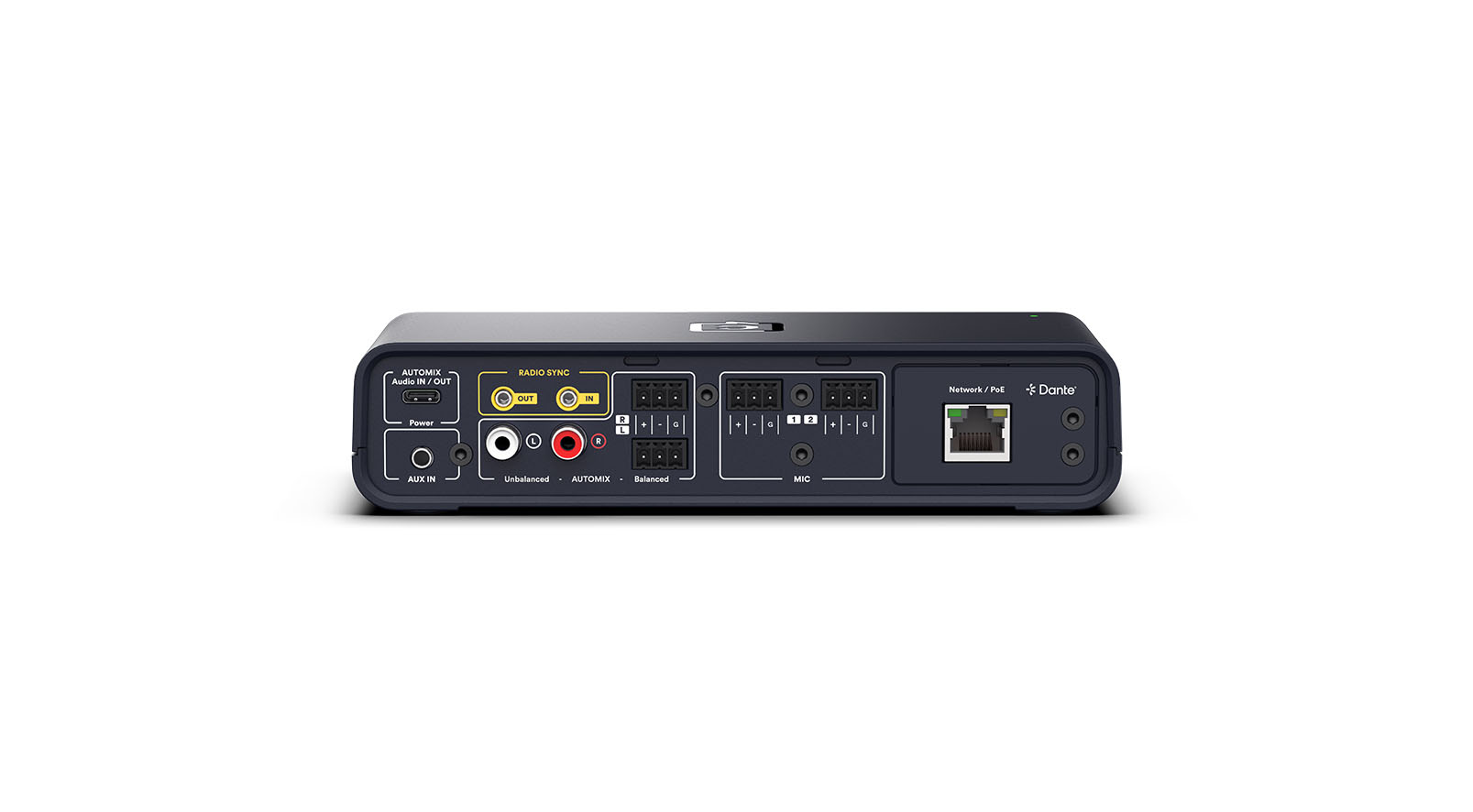

Benefit from an audio solution that adapts flexibly to your existing infrastructure. The Catchbox Plus system eliminates the need for external DSP devices, thereby reducing the complexity of your entire installation. You can use four balanced FLEX inputs and four Dante inputs to connect additional media devices or ceiling microphones. The integrated gain-sharing automixer reliably processes all these signals in the background. If required, you can route the audio mixes precisely to the desired outputs using a handy cloning function. This versatility allows for use in small meeting rooms as well as in complex environments. For example, connect two Hub DSPs together. This allows you to mix up to eight microphones through a single output. This outstanding flexibility makes your audio design considerably easier.

Intuitive operation for an immediate start

Put your trust in technology that puts the end-user first and minimises the need for technical support. The Catchbox Plus system requires no time-consuming set-up by the speaker. The microphones slot conveniently into their corresponding stations and are active immediately upon removal. Settings such as input level control are managed centrally via a clear user interface. The platform also offers an API for detailed system control. When a lecturer enters the lecture theatre, they simply remove the microphone from its holder and begin their lecture straight away. AES256 encryption is automatically renewed with every pairing, ensuring your data transmission is reliably secured. This well-designed operation promotes efficient workflows in every situation.

Seamless video conferencing with local speakers

Manage all audio streams for your meetings centrally via the Catchbox Hub DSP. For an effective basic setup with active speakers, all you need is your Catchbox Plus system, a computer for video conferencing and suitable audio cables. Simply connect the Hub DSP to your computer using the supplied USB cable. This connection provides power and simultaneously transmits the audio signal in both directions. Activate speakerphone mode via the system menu. This causes your computer to automatically recognise the hardware as a microphone and speaker. You can then route voices from the room directly to remote participants. At the same time, you mix the audio from remote participants with the local microphones and route it to the outputs for your room speakers. This ensures that both the on-site audience and remote guests can hear every word clearly and distinctly.

Mastering complex room layouts: Dante integration for ceiling microphones

For large lecture theatres and sophisticated conference rooms, opt for the optional network module to achieve an advanced audio architecture. The Catchbox Hub DSP handles the full automation of networked Dante speakers and ceiling microphones. Connect the system to your Dante infrastructure via a network cable. You route the signal from your ceiling array to the hub and seamlessly mix it with the Catchbox microphones for your video conferencing. Benefit from advanced signal processing. You can easily route the optimally mixed room sound, complete with active feedback suppression, to your Dante outputs. In addition, you provide the ceiling microphone with a clean reference signal for acoustic echo cancellation. You’ll enjoy a professional and reliable audio environment for hybrid presentations, whilst completely eliminating the need for additional external hardware.

Why the Catchbox Plus system is the ideal choice for your hybrid communication spaces

The Catchbox Plus system combines a high-performance receiver system with a fully-fledged DSP in one compact unit. You can seamlessly integrate versatile connections for analogue and digital signals into your architecture and benefit from precise, automated mixes. Whether in educational settings or modern corporate spaces, the system’s ease of use enhances every interaction in the long term. We’d be delighted to support you on your journey to your new media technology. Take advantage of our personalised advice via email or telephone and find the perfect setup with visunext. Get in touch with us now!
