Panasonic ET-D3LEW201 short-throw zoom lens for 3-chip DLP projectors

Panasonic ET-D3LEW201 – Short throw zoom lens

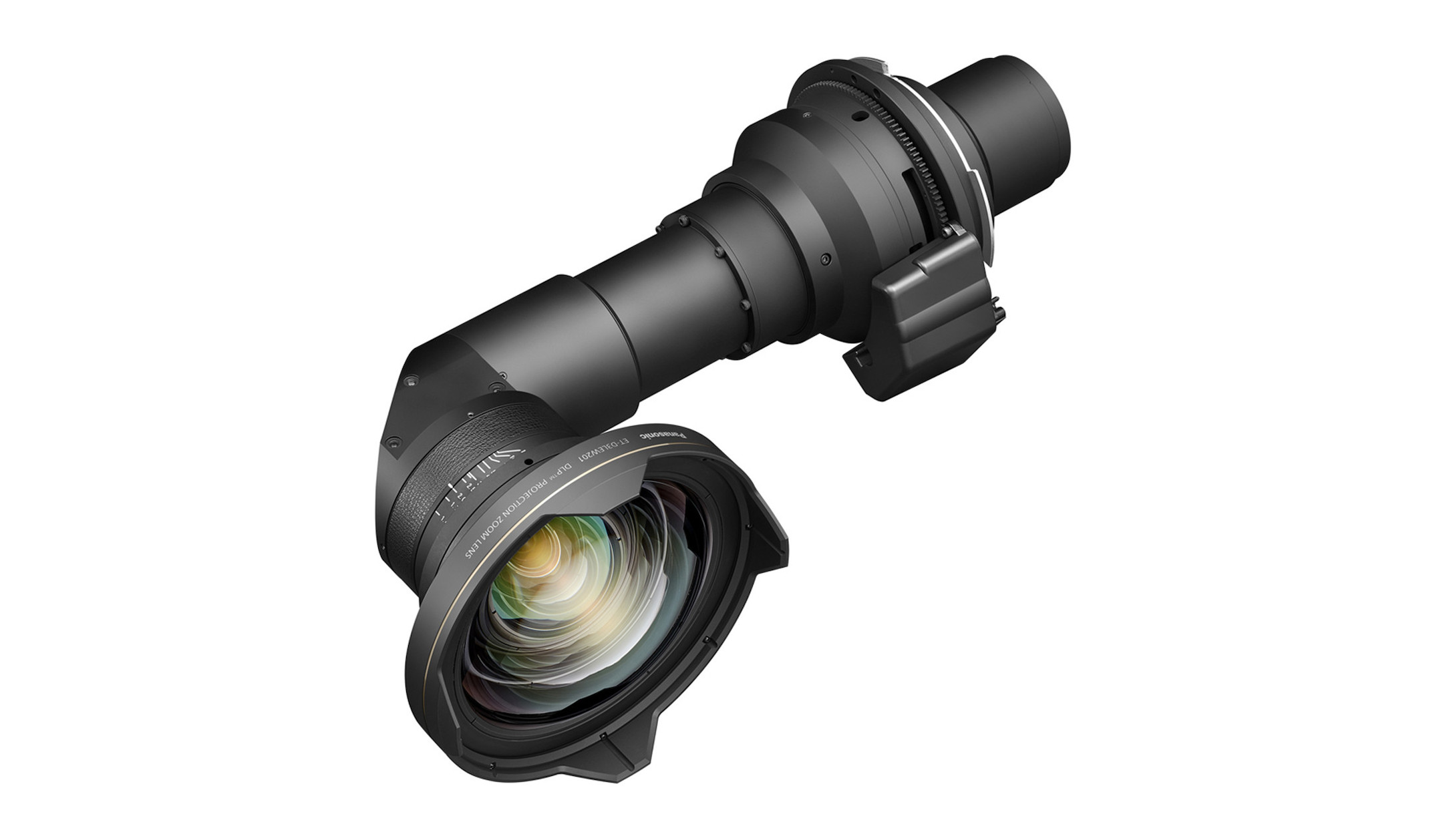

The Panasonic ET-D3LEW201 is a high-performance short throw zoom lens for 3-chip DLP™ projectors, offering maximum flexibility for demanding installations. With a projection ratio of 0.645–0.850:1 (WUXGA) , it enables large image surfaces at comparatively short projection distances and, thanks to its optical zoom, adapts perfectly to different room conditions.

The high-quality optics, with a focal length of 13.8–18.1 mm and an aperture of F2.5, ensure clear, detailed projections. Combined with vertical and horizontal lens-shift, the image position can be precisely adjusted even after installation, significantly reducing time and effort. The L-shaped design ensures an unobstructed view of the projection, even with low installations. In addition, the Active Focus Optimizer (AFO) ensures consistently high image sharpness – regardless of brightness or ambient temperature.

Highlights at a glance:

• Short throw zoom lens with throw ratio:
  0.779–1.02:1 PT-RQ25K/RQ18K/RZ24K/RZ17K/RZ14K (16:10 format)
  0.693–0.913:1 PT-RQ32K/RQ22K (16:10 format)
  0.645–0.850:1 PT-RQ35K/RZ34K/RZ31K/RZ21K/RZ16K (16:10 format)
  0.699–0.921:1 PT-RS30K/RS20K (4:3 format)
• Flexible zoom for different projection distances
• High-quality optics (F2.5, 13.8–18.1 mm) for clear images
• Vertical and horizontal lens-shift for fine adjustment
• L-shaped design for an unobstructed view of the screen
• Supports Active Focus Optimizer (AFO) for stable focus
• Robust construction for professional use

Weighing approx. 9.0 kg and offering broad compatibility within the Panasonic 3-chip DLP™ series, the ET-D3LEW201 is a versatile solution for professional projection.
