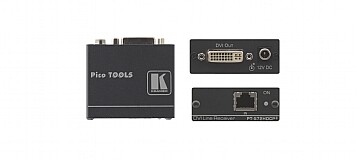

Kramer PT-572HDCP+ DVI-CAT Receiver (1x CAT to 1x DVI)

The PT-572HDCP+ is a DGKat™ twisted pair receiver for DVI signals.

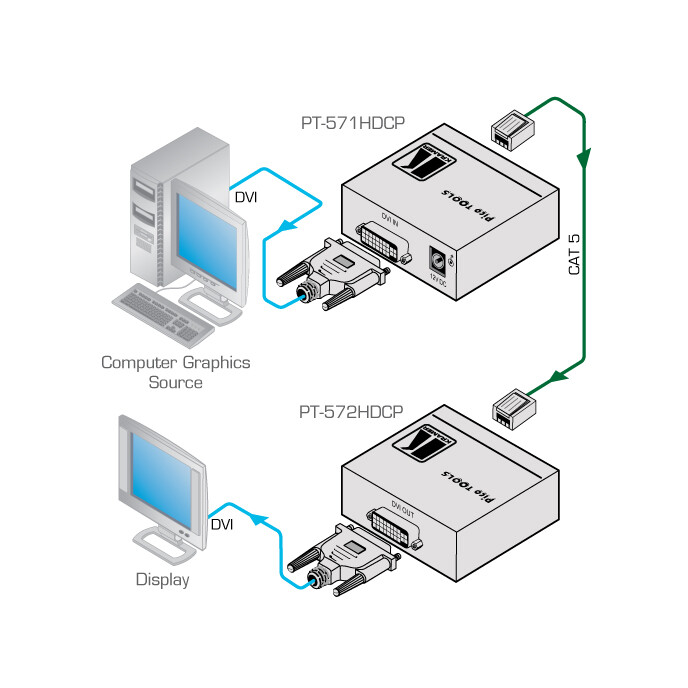

The PT-571HDCP converts a DVI signal into a digital twisted pair signal, and the PT-572HDCP+ converts the incoming twisted pair signal back into a DVI signal.

• Max. Data rate - 1.65 Gbps
• HDTV compatible
• HDCP compliant
• DGKat™ signal integration - Kramer's unique technology to convert TMDS, control and communication into signals for twisted pair transmissions. For optimum performance, we strongly recommend using Kramer's DGKat™ cables.
• System range - Up to 90 m for SXGA or up to 30 m for UXGA with shielded BC-DGKat524 cables; up to 90 m for SXGA or up to 70 m for UXGA with shielded BC-DGKat623 cables; up to 100 m for SXGA or up to 80 m for UXGA with shielded BC-DGKat723 cables
• Cables - For optimum range and performance, use Kramer's BC-DGKat524, BC-DGKat623 or BC-DGKat723 cables. The transmission range depends on the resolution, the graphics card and the display used, among other things. The transmission range may be less than specified when using CAT 5 / CAT 6 / CAT 7 cables that are not from our product range.
• EDID pass-through - Enables EDID communication between source and display.
• Power Connect™ System - The PT-571HDCP and PT-572HDCP+ system is powered via the mains supply of the transmitter or receiver if the devices are no more than 90 m away.
• Ultra-compact Pico TOOL™ - Four devices can be mounted side by side in a 19-inch rack with 1 U using the optional RF-4PT rack adapter.

Typical applications:

• Boardrooms, conference and training rooms
• Presentation systems
• Signal distribution and home cinema
