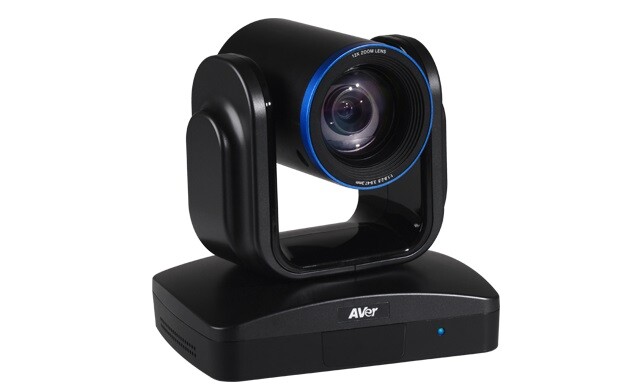

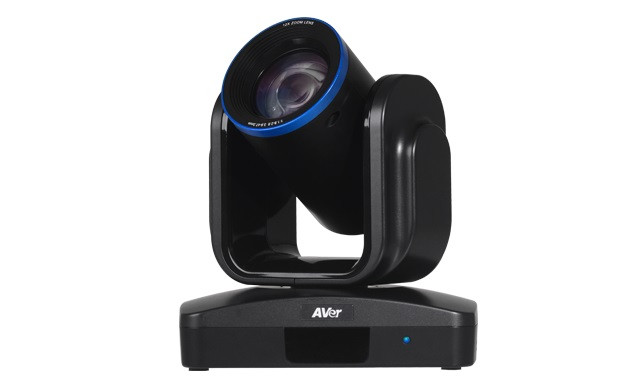

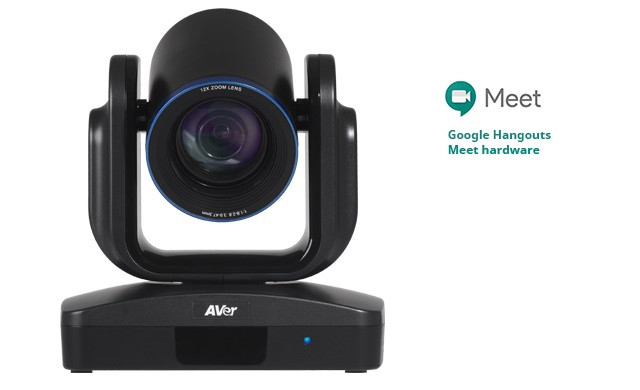

AVer PTZ camera, 1920 x 1080 Full HD, 60 fps, 72.5°

Plug-and-Play The AVer CAM530 is ideal for unified communications and corporate collaboration. Thanks to the extensive compatibility, the camera can easily work with numerous applications and other devices. Full HD with 1080p and 60 FPS ensure high quality real-time communication in conference rooms and industrial environments. Thanks to simultaneous output via HDMI and USB, video recordings can be viewed and streamed simultaneously. This makes the CAM530 perfect for software or cloud-based video collaboration, as well as other applications that require the highest video quality. Full HD resolution with 1080p and 60 FPS

 Full HD with 1080p and 60 FPS has never been so brilliant. Even in poor lighting conditions, conversation partners and objects are shown in detail, crystal clear and without any motion blur.

PTZ camera with 12x optical zoom PTZ stands for pan, tilt and zoom. With these features and the 12x optical zoom, the CAM530 meets all the requirements for video collaboration. The bright wide-angle lens with fast autofocus and the clean movement steps ensure an unmatched smooth and brilliant video quality.

Up to 10 camera presets

Do not waste time manually panning or zooming during conferences - simply set up to ten positions on the remote control in advance so that you can switch between total and close-ups at the touch of a button.

VISCA integration via RS-232 interface Thanks to additional integration options for the CAM530, such as an RS-232 connection and VISCA support, the system can be easily integrated into controlled environments and controlled via an AV control panel.

 Practical plug-and-play You only have to connect the USB plug of the CAM530 to a PC or laptop. That's all! The CAM530 delivers top quality video at all times - without any device drivers.

Camera

Full HD with 1080p and 60 FPS

Swivel: ± 130 °; 0.45 ° increments

Tilt: + 90 ° / -25 °; 0.25 ° increments

Viewing range (H): 72.5 ° (wide angle) ~ 6.3 ° (telephoto)

Sensor: 1 / 2.8 CMOS for low lux values, 2 MP

Resolution: Full HD 1080p (1920x1080), HD 720p (1280x720), PAL (1024x576), VGA (640x480), QVGA (320x240), QQVGA (160x120) at 60 FPS, 30 FPS and 15 FPS

Scanning: progressive

Zoom: 12x optical zoom

Focal length: 3.9mm (wide angle) ~ 47.3mm (telephoto)

Aperture: 1.8 (wide angle) ~ 2.8 (telephoto)

Autoiris

Signal-to-noise ratio:> 50 dB

Minimum light intensity: 1 lux (50 IRE, F1.6, shutter 1/30)

2D and 3D noise reduction

Backlight correction

Image rotation / mirroring

Minimum distance: 1 m

Table / wall / ceiling bracket included

Kensington security

Remote Control

IR (infrared)

10 camera presets (100 presets via VISCA)

 What's in the box

CAM530 camera

remote control

5 m USB cable for connection to a PC (USB 2.0 mini B to PC)

power adapter

quick start Guide

Bracket for table / wall / ceiling

6.35 mm tripod screw

3 m HDMI cable

RS-232 adapter

System requirements

Windows® 7/8 / 8.1 / 10

Mac OS® X 10.7 or higher

Google Chromebook version 29.0.1547.70, platform 4319.79.0

Hardware requirements

Intel® Core 2 Duo processor with 2.4 GHz

At least 2 GB of RAM

Free hard disk space for video recordings

USB 2.0 port

power adapter

100 V ~ 240 V AC

Current consumption: EIAJ 12, 4 A

Environmental data

Physical characteristics: 0 to 40 ° C

Operating humidity: 20% to 80%

Storage temperature: -20 to 60 ° C

Storage humidity: 20% to 80%

Physical characteristics

Package dimensions: 370 x 252 x 275 mm

Package weight: 4.16 kg

Camera: 180 x 140 x 182 mm / 1.5 kg

Remote control: 200 x 50 x 20mm / 0.091kg

Optional accessories

RS-232 adapter

Compatibility and tools

YUV, MJPEG, H.264 SVC, AVC (High and Baseline Profile)

Multi-stream capable

USB 2.0

UVC (USB Video Class) 1.1 with H.264 extension

VISCA via RS-232 ***

HDMI 1.3

Dip switch

Diagnostic tool, firmware upgrade tool, app for advanced functions and settings for download

PTZApp

Free download for Windows and Mac

Compatible with SkypeTM plug-in for answering calls and hanging up by remote control

Automatic firmware upgrade or manual camera control

Setting parameters and setting the camera image

Operational diagnosis

Live video view
