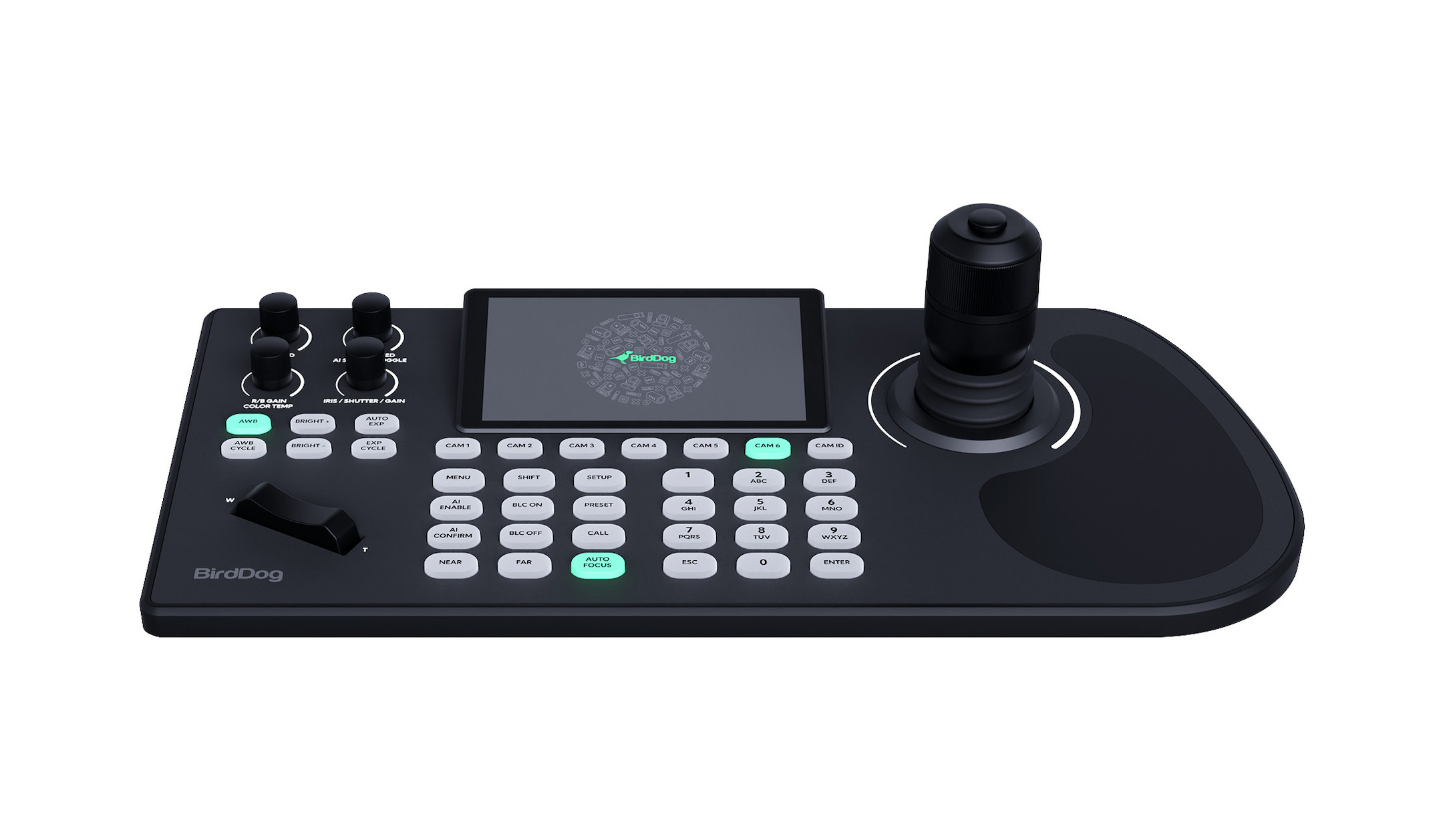

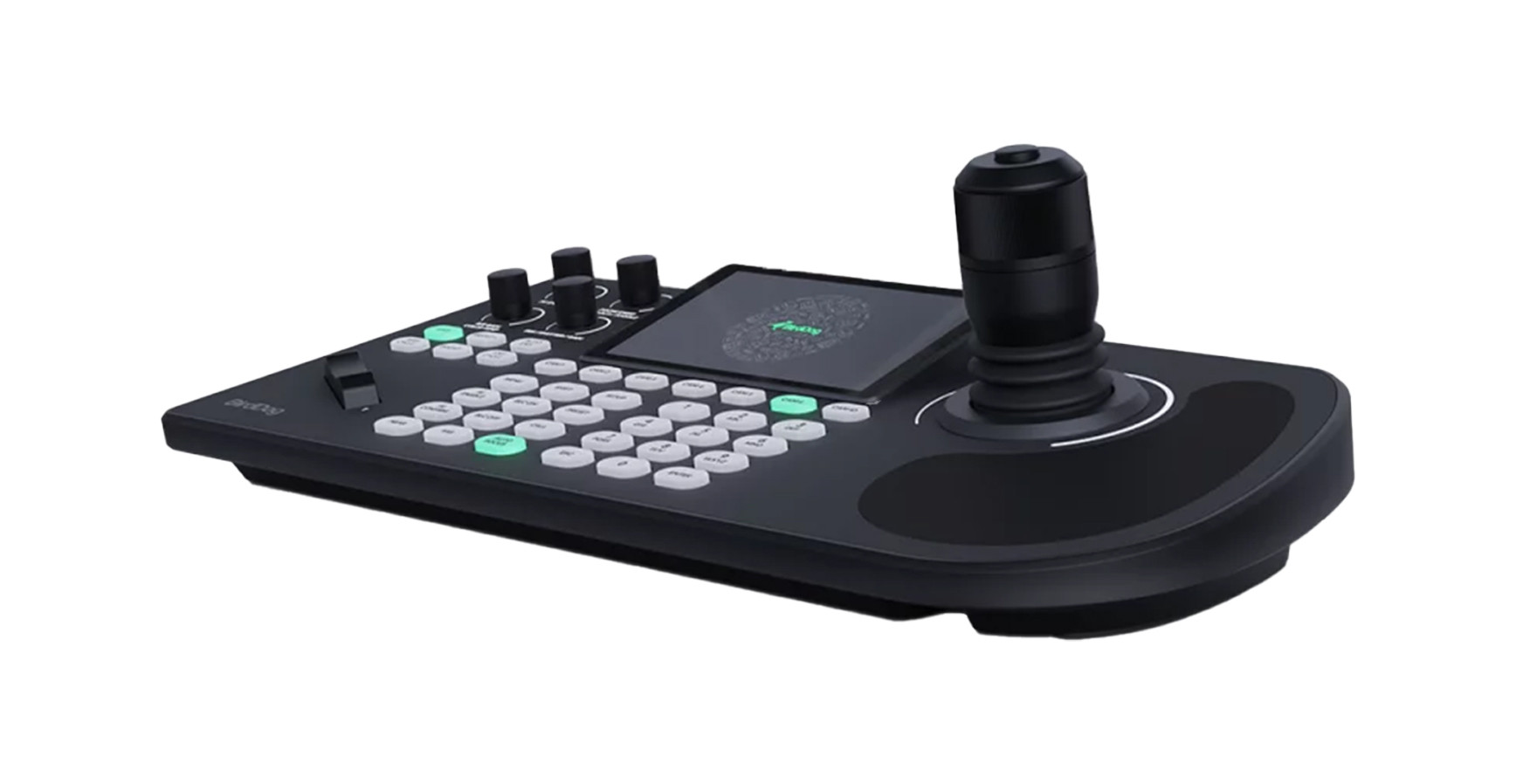

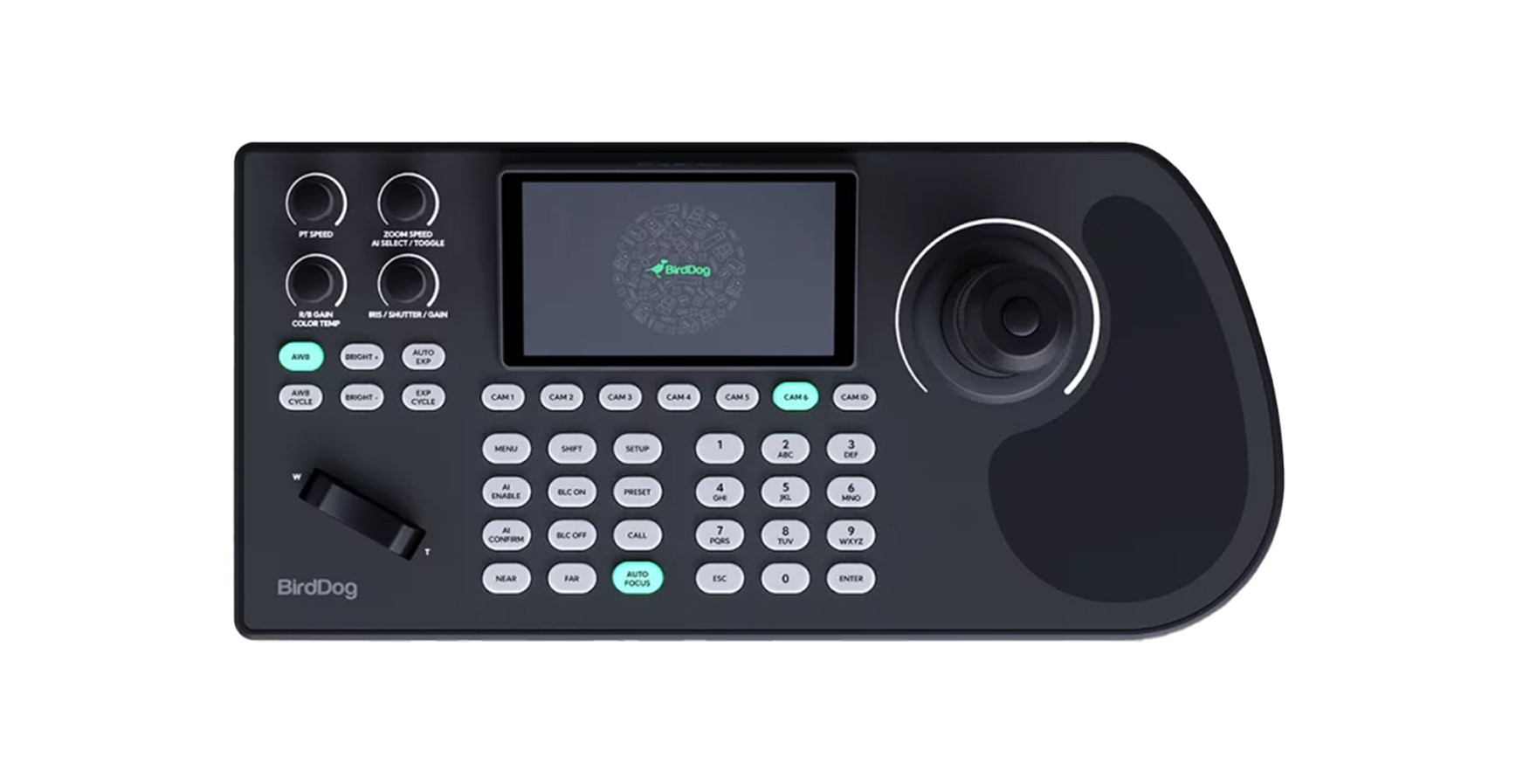

BirdDog KBD PTZ control panel

Modern, sustainable and intuitive: the BirdDog KBD PTZ controller

The BirdDog KBD PTZ control panel sets new standards in professional camera operation. Its robust, ergonomic design, large multi-camera display and direct access to essential functions enable precise control and seamless workflows. Whether NDI, VISCA, ONVIF, RS-232 or RS-422 – with its broad protocol support, the BirdDog KBD controller fits into almost any production environment and also impresses with its environmentally friendly construction from recyclable materials.

The technical data at a glance:

• Dual Control Modes: network and analogue control; in network operation with its own IP address
• Protocol compatibility: Supports NDI, VISCA, ONVIF, RS-232 and RS-422
• Built-in display: 1280×720 screen for monitoring up to four cameras simultaneously or in full-screen mode
• High-quality 4D joystick: variable speed joystick with integrated trigger button for fluid camera movements
• Zoom Rocker: spring-loaded zoom lever for precise zoom settings
• Web-based configuration: camera settings can be conveniently customised in a browser using BirdUI
• Camera capacity: Control of up to 255 cameras, six direct camera keys and ten direct keys for presets
• Power supply: Supports PoE (802.3af) and 12V DC power supply
• Sustainable design: Made from ocean-bound plastics and recyclable aircraft aluminium
• Ergonomics: Well-thought-out shape with hand rest and tactile controls for long, comfortable use
• Built-in tally borders: Live tally indication when connected to TriCaster, vMix and other switchers

Precise control and ergonomic comfort

With the BirdDog KBD, you get a control centre that meets the highest standards of precision and ease of use. The ergonomic shape with hand rest allows hours of concentrated work without fatigue. Thanks to the 4D joystick with sensitive "Fine-Tune" mode, you can pan and tilt with millimetre precision, even at high zoom levels. The integrated tally borders show you at a glance which camera is live, so you don't lose a second and can fully focus on your image composition.

Versatile connectivity and quick setup

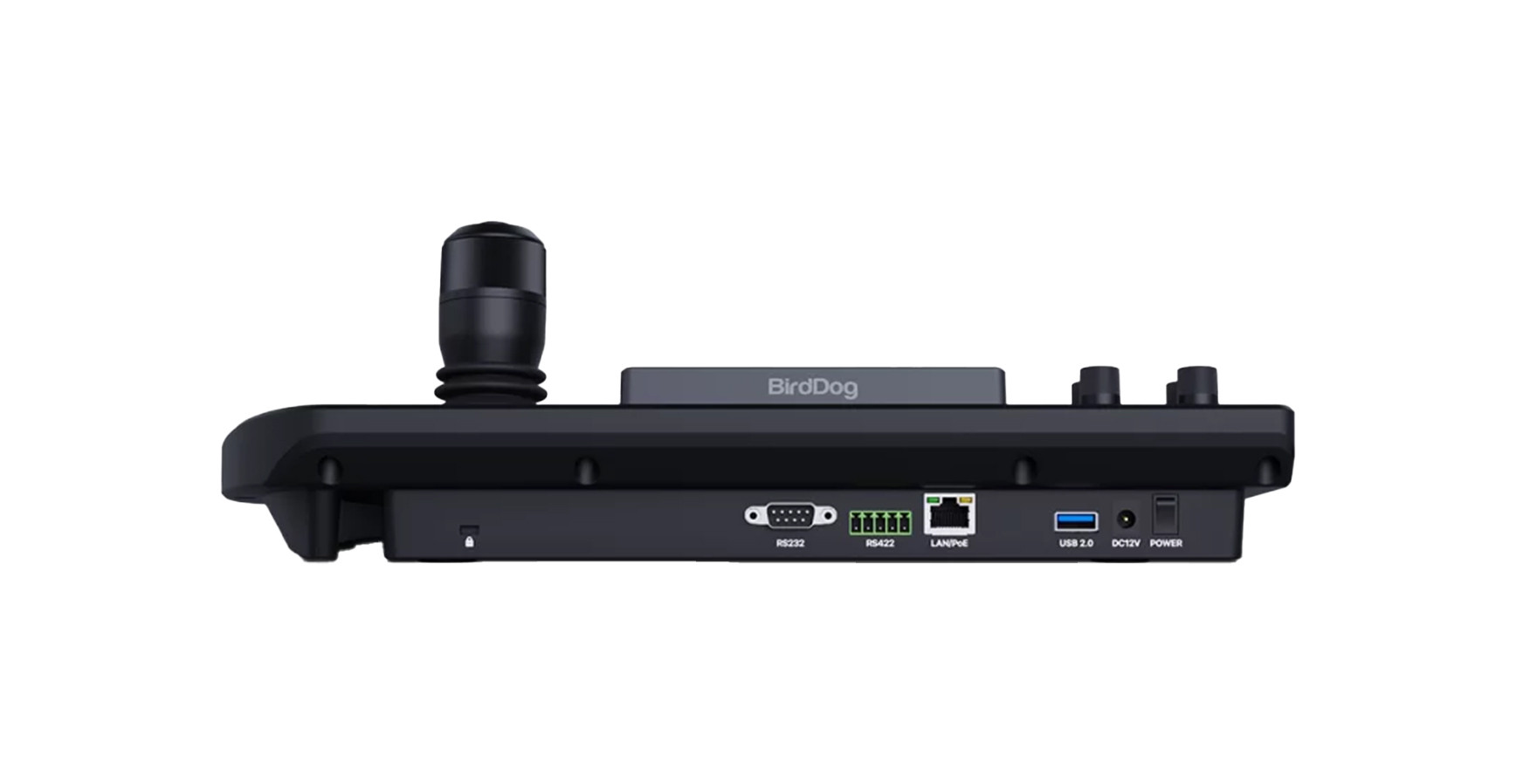

The KBD controller can be easily integrated into any production environment. In addition to network protocols such as NDI, VISCA or ONVIF, it also offers serial interfaces (RS-232, RS-422) for existing setups. For network mode, simply connect the camera and control panel to the same local network and set both devices to the same IP address family. Thanks to the DHCP function, the KBD obtains its IP address automatically, so that the basic configuration is completed in just a few steps.

Environmentally friendly design and future-proof investment

You not only benefit from innovative features, but also contribute to environmental protection: the housing consists of recycled plastics from the ocean floor and recyclable aircraft aluminium. This sustainable approach and the long service life of the robustly designed KBD controller mean that you are investing in a product that is both economically and ecologically sound. At the same time, the quick and easy operation ensures efficient production processes – ideal for modern PTZ camera operators who value performance and sustainability.

Conclusion

The BirdDog KBD PTZ controller combines functionality, ergonomics and environmental awareness into a powerful all-round package. Thanks to comprehensive protocol support, intuitive control and sustainable materials , this controller is the ideal choice for professional PTZ applications.
