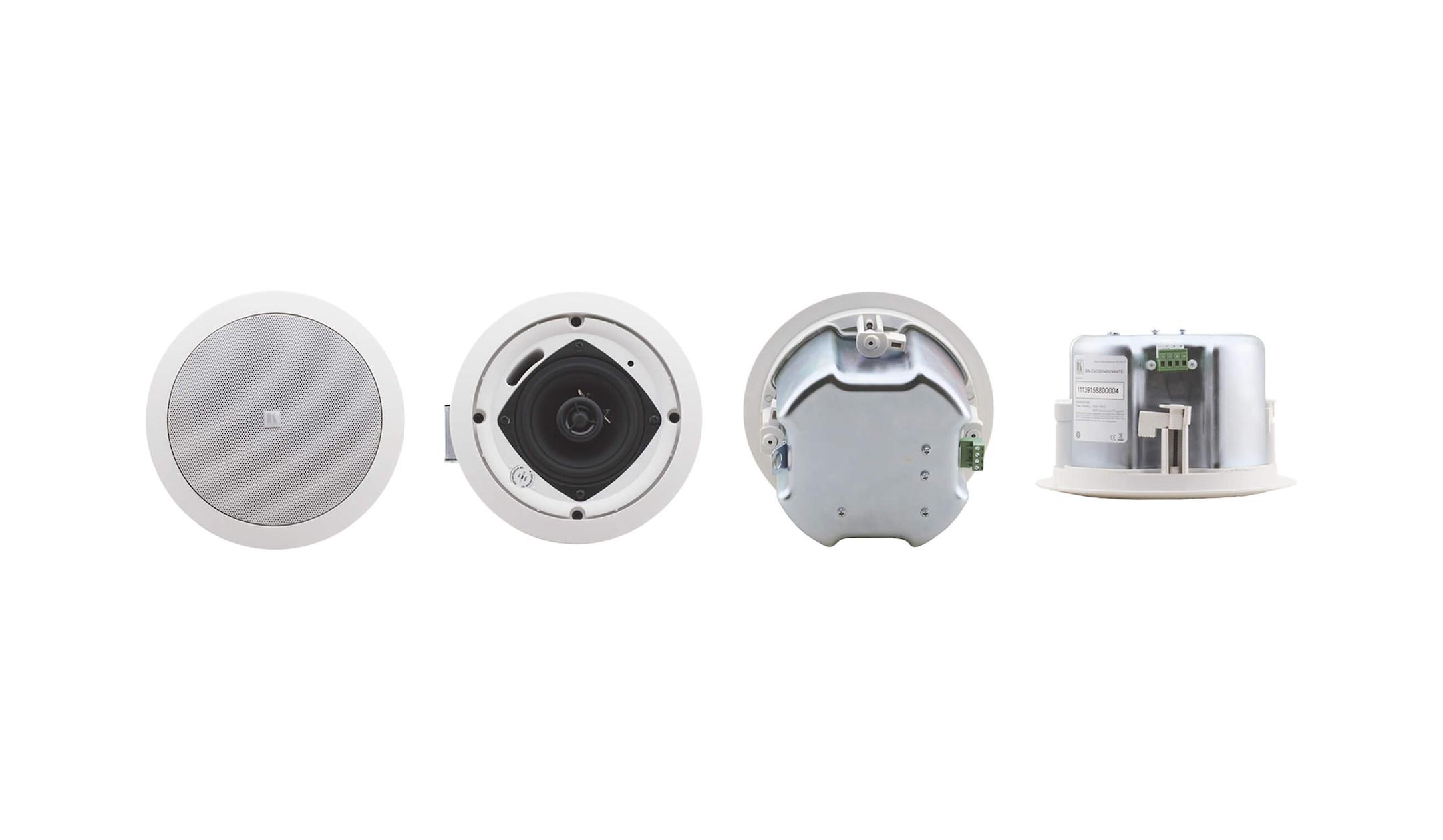

Kramer Galil 4-C 2-way closed ceiling loudspeaker, pair

The Kramer Galil 4-C is a compact, self-contained ceiling speaker that delivers precise sound and versatile connectivity for superior audio quality in conference rooms, schools, hotels and restaurants. The speaker offers both a direct 8-ohm connection and transformer options (70V/100V), making it ideal for array installations.

The technical data at a glance:

• Type: two-way coaxial ceiling speaker
• Woofer: 10 cm polypropylene cone with rubber surround
• Tweeter: 1.3 cm Mylar dome
• Impedance: 8 Ω (direct connection), transformer option: 70 V/100 V
• Power: 30 W RMS, 80 W music mode
• Frequency range: –10 dB: 85 Hz to 20 kHz; ±3 dB: 100 Hz to 20 kHz
• Sensitivity: 85 dB SPL @1 m, 1 W
• Max. SPL: continuous 95 dB, peak 97 dB
• Beam angle: 90°
• Mounting: screw terminals, ceiling mount kit including template
• Certification: UL 1480 & 2043 Listed

Excellent sound quality and precise tuning

The Galil 4-C realises balanced sound, optimal for both speech reproduction and background music, thanks to its 10 cm woofer and 1.3 cm tweeter. The frequency range of 85 Hz to 20 kHz (–10 dB) and the high sensitivity of 85 dB SPL ensure that the speaker provides clear and distinct sound reproduction even in larger rooms. The crossover at 6 kHz also allows for precise mixing of the sound components.

Robust construction and versatile connectivity

The Galil 4-C features a solid, sealed construction that ensures controlled bass reproduction and reliable performance. With a direct 8-ohm connection and optional transformer connections for 70V/100V, it can be used flexibly in a wide range of installation environments. The high-quality materials, including an ABS frame, a powder-coated aluminium grille and a robust metal housing, guarantee durability and resilience.

Easy installation and a wide range of accessories

For precise installation in ceilings with a mounting depth of approx. 10.7 cm, the Galil 4-C is supplied with a complete ceiling mounting kit, a template for the cut-out and a grill retaining device. The screw terminals enable a secure and uncomplicated connection, so that a quick start-up is possible. Weighing approximately 1.75 kg per speaker, installation is easy, even in challenging room layouts.

Reliable performance in demanding applications

The Kramer Galil 4-C has been designed for professional use in environments such as conference and meeting rooms, classrooms, hotels and restaurants . The transformer connections enable flexible power levels (e.g. 30 W/15 W/7.5 W/3.7 W at 70 V and 100 V), allowing the speaker to be optimally adapted to different acoustic requirements. With UL 1480 and UL 2043 certification, it meets the highest safety standards and offers reliable performance even in critical installation scenarios.
