PeTa Ceiling mount standard with clamp lever, variable length 18 - 30 cm
Article no: 1000026820
Product information
Note: You must specify the projector type and the desired colour when ordering!
The standard ceiling mount from PeTa is a special metal construction. The ceiling mount is painted with an impact and scratch-resistant powder coating.

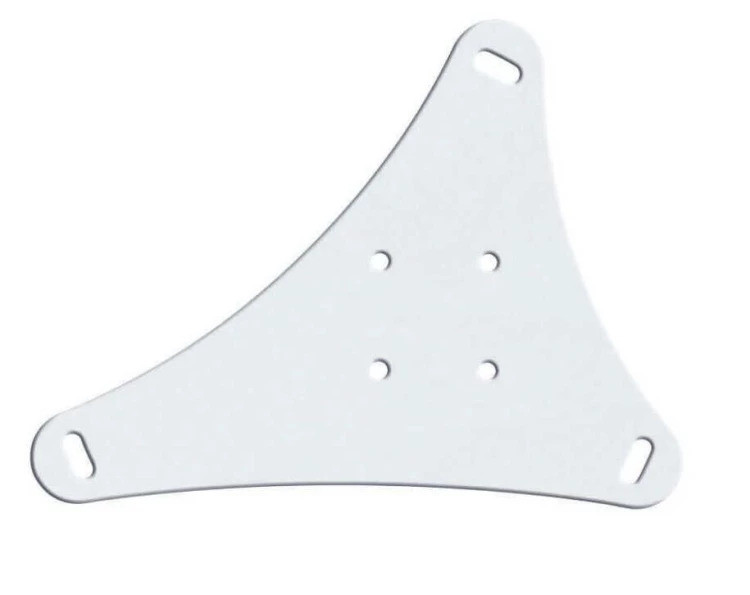

A specific projector plate equipped with spacer bolts ensures optimum ventilation of the device to be mounted.
The standard ceiling mount is available with three different ball joints.
If you want to mount a projector on the ceiling that weighs less than 20 kg, you can choose between the self-locking ball joint and the ball joint with clamping lever. However, if the projector weighs more than 20 kg, we recommend choosing a ball joint with a steel ball.
A note when choosing your ceiling mount: When using attachments (such as an interchangeable lens), please note the additional weight and the change in weight transfer.

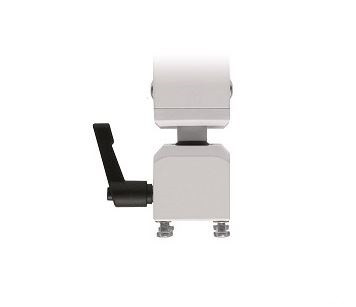

This item is a ceiling mount with clamping lever ball joint.
The clamping lever ball joint can be tilted 15° and also rotated 360°. This allows you to mount your projector in the best possible way according to the conditions.
Important:
As the ceiling mounts from PeTa GmbH are customised products, we need information from you about the selected projector! The projector plate, which is required to mount the projector to the ball joint, is included in the scope of delivery especially for your projector and costs you nothing extra!
In addition, the mount is available in different colours. Please specify the desired colour!
The following colours are available at no extra charge:
white RAL 9016
pure white RAL 9010
black RAL 9005
silver approx. RAL 9006
anthracite RAL 7016
Is your colour not included in this list? Contact us!
You can enter the information about the projector and the colour in the "Payment & Shipping" step of the ordering process in the "Additional info" field.
All data at a glance:
- Special metal construction for ceiling mounting
- Ball joint with clamping lever: 15° tiltable and 360° rotatable
- With internal cable routing
- Up to 20 kg load
- Ceiling plate: 120x180 mm
- Tube cross-section: 45x45x2 mm

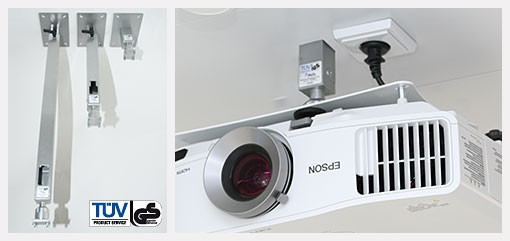

- TÜV GS tested
- Incl. Projector plate

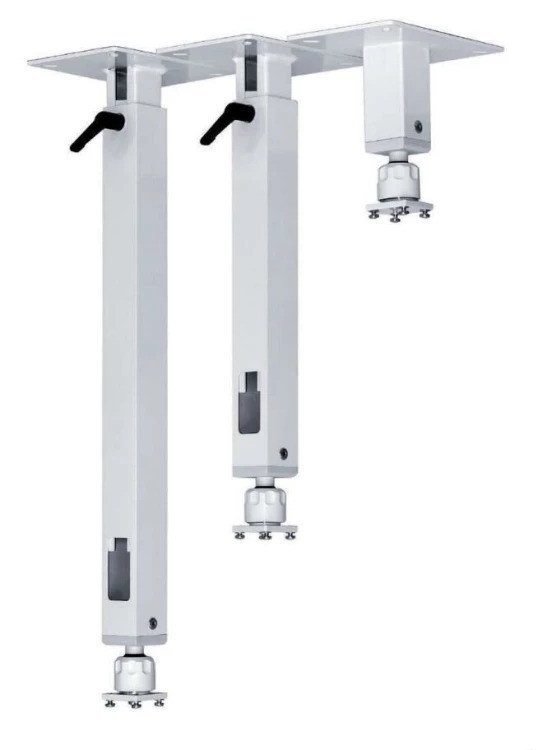

- variable length: 18 - 30 cm
This is a customised product. The item is excluded from exchange.
Technical data
| Name | PeTa Ceiling mount standard with clamp lever, variable length 18 - 30 cm |
|---|---|
| Article number | 1000026820 |
| Manufacturer SKU | 100.002.018-030 |
| Model name | PeTa Deckenhalterung Standard, Klemmhebel, 18 - 30cm |
| Brand | PeTa |
| Product Type | Projector mount |
| Mount type | Ceiling |
| Mount usage | Single mount |
| Max. Weight | 20 kg |
| Minimum Mount Length | 18 cm |
| Maximum Mount Length | 30 cm |
| Features | Cable management , Rotation , height adjustable , tiltable |
| Colour | White |
| Condition | New |
| Warranty type | Bringin service Service and support information |
